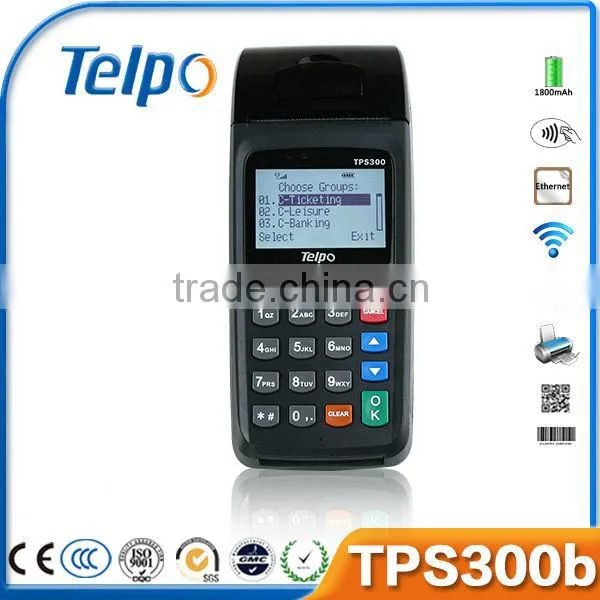

TPS300 Telpo Handheld POS Devices With Barcode Scanner/card Reader

Name: TPS300 Telpo Handheld POS Devices With Barcode Scanner/card Reader
Brand: Telpo
SKU: 101876979
Availability: InStock

Negotiable MOQ: 200 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Telpo

Model Number:

TPS300

Telepower Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOSHAN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Telpo

Model Number TPS300

Specifications

TPS300 Telpo Handheld POS Devices with barcode scanner
1.Loyalty program, discount system
2.Magnetic/Smart card reader

TPS300 Telpo Handheld POS Devices with barcode scanner/card reader

1) POS Application customized development (We have a strong engineer team)

2) Support SDK Development

2) POS SYSTEM Provider

3) POS + Barcode Scanner Ideal solution for lolyalty program, discount system.

Product Description

Specification:

CPU	ARM7
Memory	Flash:8MB
Memory	RAM:4MB
GSM Modem	SIM840
Display	128*64 pixels
LCD Size	59*36.4mm
Keyboard	20 keys
Battery	1800MAH Li-ion battery
Developing environment	OS of SIM840 for design
Dimensions	205mm×81mm×68mm
Weight	≈1.1kg
2PSAM (optioncal)	ISO7816
NFC/RFID(optioncal)	Mifare classic, Mifare Ultra light, Mifare DESFire, ISO 14443A&B
AC input voltage	100V~240V AC
Power adaptor output	DC 12V/2A
Operating temperature	0℃~50℃
Relative humidity	10%~95%
Environment noise	≤60dB(A)
Atmospheric pressure	86~106kPa
Frequency bands	Quad bands, GSM850/900/1800/1900 MHz
Frequency stability	<2.5ppm
Receiver sensitivity	< –104dBm
Transmit power	<2W(900MHz), <1W(1800MHz)
SIM card Interface	3V
Antenna	Built-in
Printing method	Thermal-line dot method
Speed	40mm/sec
Paper	Thermal roll paper(standard), 57*50
Effective Printing area	48mm
Character	12*24 dots
Number of columns	32 columns/line
Printing Head Life	Pulse resistance:100 million pulses/dot(under standard conditions); Abrasion resistance: paper traveling distance 50km(print ratio:25% or less)

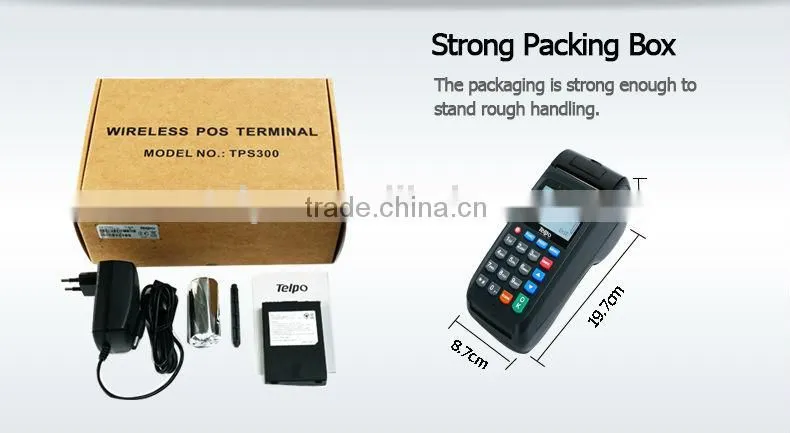

Packaging & Shipping

Company Information

FAQ

Q1. How to check the software version
A: Turn on the device, it will show the software version number on the screen during startup.
Q2. How to enter factory test mode
A: (1) For some old version, when the device is under standby state, click keys *#55#, it will enter factory test mode
(2) For new version, after press power on key, when the device is in startup, click the key “Cancel”.
It will show “Factory Mode”, then input keys *#55#, and click key “Menu”, then it will enter factory test mode.
In factory test mode, you can test lots of hardware function such as test printing, test keypad, test LCD, test GPRS connection, test SMS and so on.
Q3. Can not Turn On
A: Check the power adapter, or try to change another workable power adapter.
Check the battery, or try to change another normal battery.
Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result.
If the circuit has no problem, and it still can not turn on, please try to discharge.
Q4. Can not detect the SIM CARD
A: Please check whether the SIM card is installed well.
Install the SIM CARD again.
Change another SIM card
Scrape the surface of the metal spring in the SIM CARD slot with knife.
Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again.
Replace the part of the SIM CARD slot.
