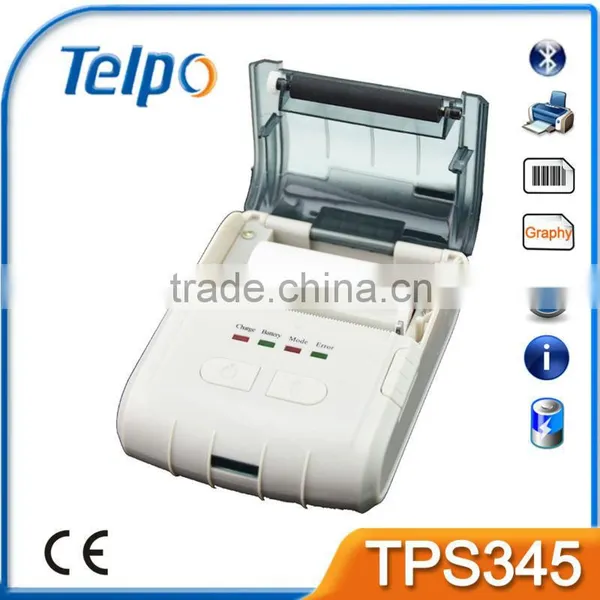

Telpo TPS345 Mobile rs232 Printer

Print Way

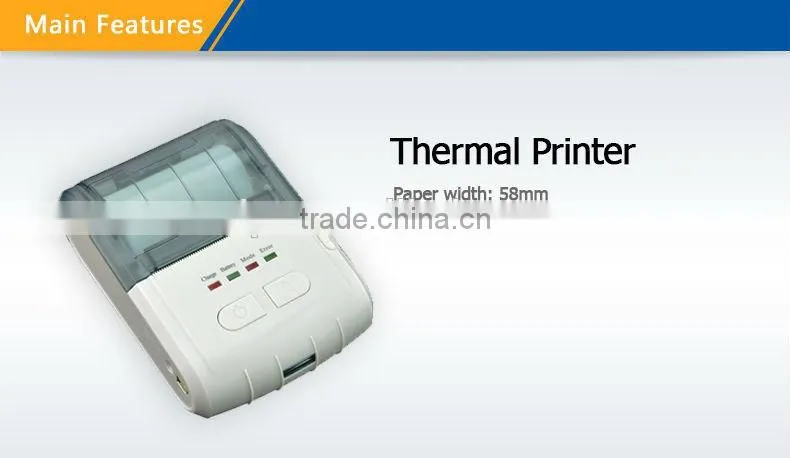

Thermal line printing

Print Density

8 dots/mm, 384 dots/line

Effective Print Width

48mm

Print Speed

About 60mm/s or 22 line/s

Character

A Nk character set:12×24dot;1.50(W)×3.00(H)mm National Standard  First, secondary Chinese character  library :24×24dot;3.00(W)×3.00(H)mm support custom character

Graph

Support different density dot bitmap printregister:6K bytes

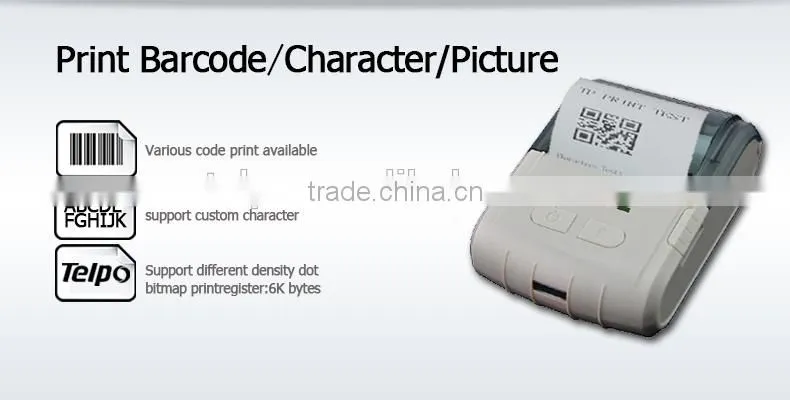

Barcode

UPC-A,UPC-E, EAN-13,EAN-8,CODE39,ITF25,CODABAR,CODE93,CODE128 code print

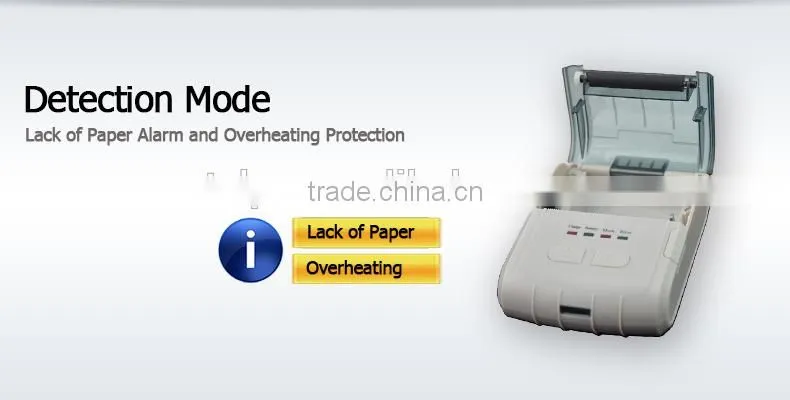

Lack of Paper Alarm

Support

Overheating Protection

Support

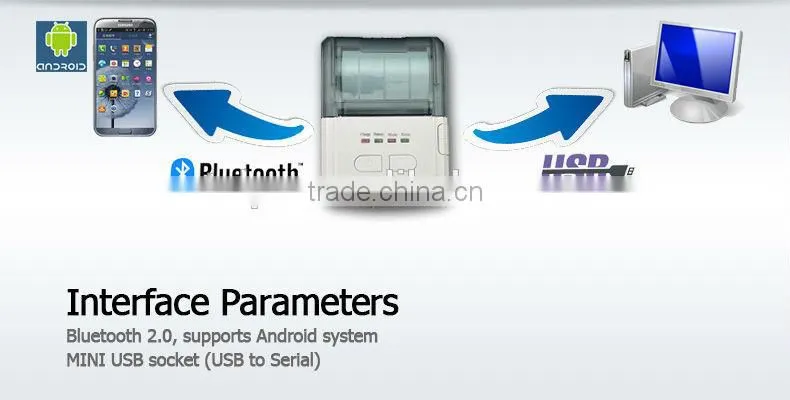

Serial Interface

MINI USB socket, baud rate:115200bps

Bluetooth Port

Bluetooth Spec V2.0 + EDR compliant Standard communication protocol

Polymer Battery

7.4V 1100mAh

Printer Head Life

6x10e6 characters

Paper Type

Common thermal paper

Printing Paper Width

57.5±0.5mm

Paper Thickness

0.06~0.08 mm

Scroll Size

57×30mm

Paper Loading Method

Easy to load paper

Cutting Paper Way

Manual tearing

Operating Temperature/Humidity

0~55℃/10~80%(RH)

Storage Temperature/Humidity

-20~60℃/10~90%(RH)

Appearance Size

115 x 83 x 45 mm
