Help CenterTelpo TPS550 7' Touch Screen Android POS System
Related Products
-
2014 Telpo TPS550 Pos Android Terminal for Airtime Top Up, Utilities, Loyalty ProgramsUS$ 1 - 300MOQ: 100 Units -
2014 Telpo TPS550 Android Thermal Printer for Airtime Top Up, Utilities, Loyalty ProgramsUS$ 1 - 300MOQ: 200 Units
-
2014 Telpo TPS550 Intelligent Payment Android Mobile Pos With PrinterUS$ 1 - 400MOQ: 1 Unit
-
Telpo TPS550 Electronic Manufacturing Android Mobile Payment Cheap Pos SystemUS$ 1 - 300MOQ: 1 Unit
-
Telpo TPS550 7' Lcd With Barcode 1D/2D and Finger Reader Wifi/ Wcdma Wireless Android Pos TerminalUS$ 1 - 400MOQ: 1 Unit
Specifications

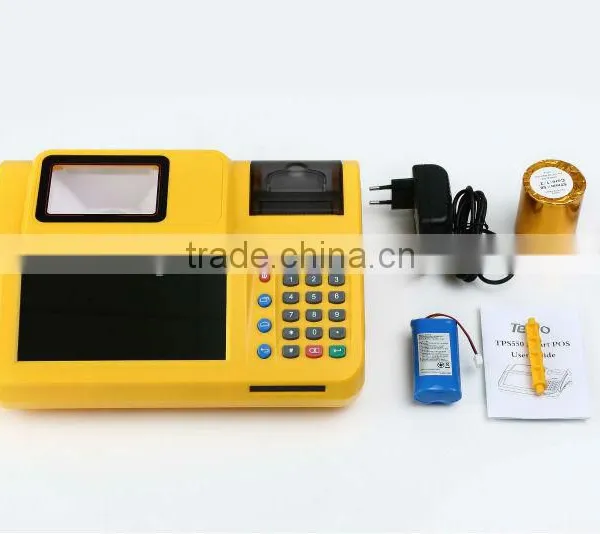

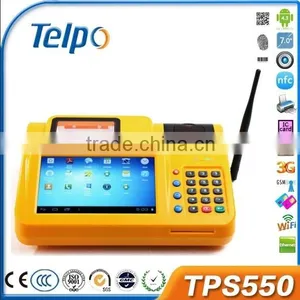

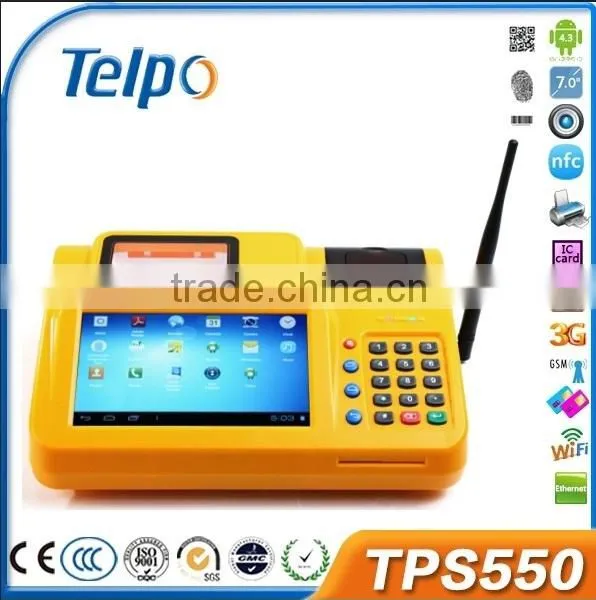

Telpo TPS550 POS Terminal1.7' Touch Screen Android POS System
2.Barcode Scanner
3.RFID, Smart Card Reader
4.Thermal Printer
Application:
1. Registration: Biometric Verification of SIMs/Vistors Registration/Voting
2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card
3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity
4. E-ticketing: Railway/Ait/Bus/Movie
5. Money Transfer: Deposit/Withdrawal/Remittance
6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card
7. Lottery: Lotto game/Bingo game/Casino game/
8. O2O Shipping
Processor |
A9, CPU1.2GHz |
Memory |
1GB RAM, 8GB FLASH, Ext. TF(micro SD) card |
OS |
Android 4.4 |

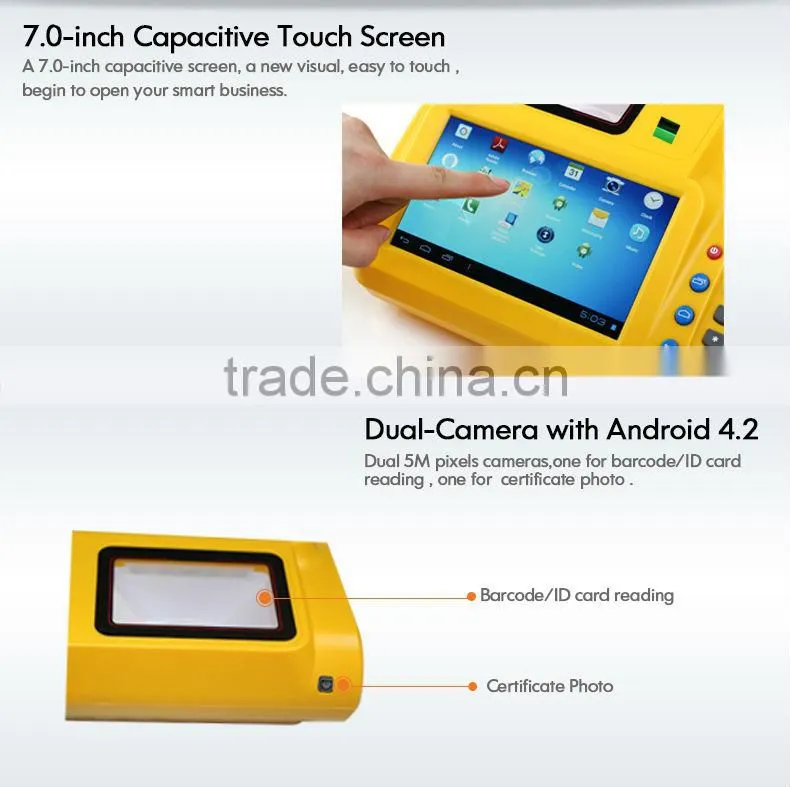

Display |

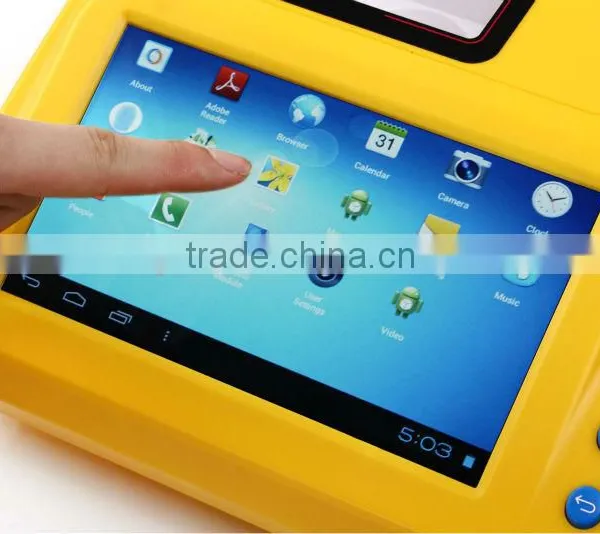

7’, TFT 800*480 |
TFT1024*600(Optional) | |
Keypad |
12 alphanumeric keys, 7 function keys |
Battery |
Lithium Polymer rechargeable battery |
7.4V, 2200mA, Li-ion. | |
7.4V, 2500mA, Li-ion(Optional) | |
Power Supply |
Input:100-240VAC, 50Hz/60Hz,1.0A;output:12VDC, 2A |
Dimensions(mm) |
290(L)×219(W)×85(H) |
Weight |
1500g |
Certification |
CE |
Card Reader |
Magnetic card reader, Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812(Optional) |
|
Smart card reader, ISO 7816(Optional) |
|

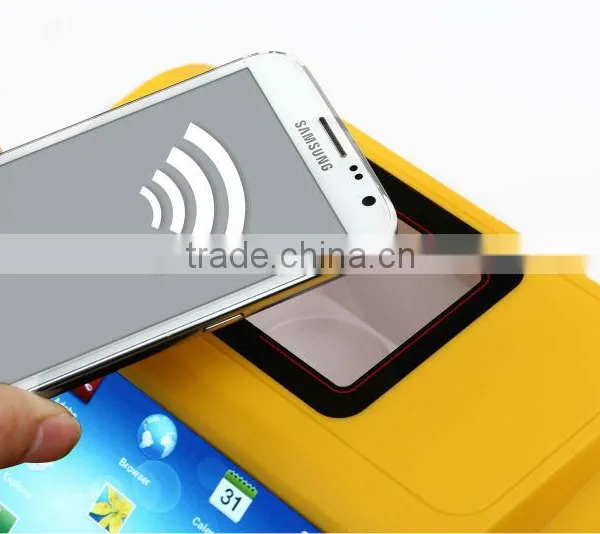

Contactless card reader, ISO14443 Type A/B, Mifare®(Optional) |
SAM Slots: 2 SAM Slots, ISO7816 |
(Optional) |

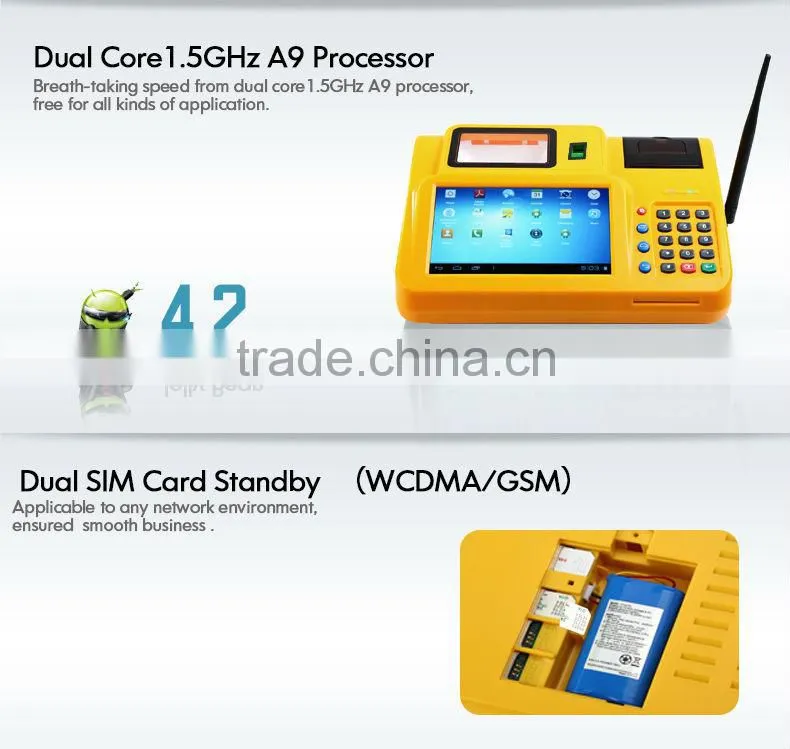

SIM Slots |
Single SIM |
Dual SIM(Optional) | |
Communications |
GPRS/ Ethernet |

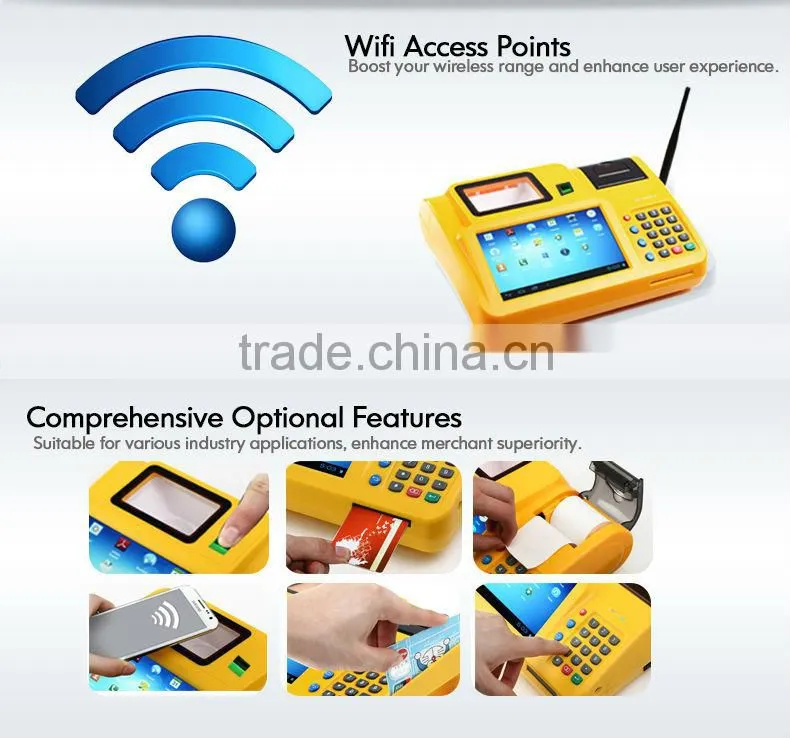

WiFi/3G/4G/CDMA1x/Dial-Up(Optional) | |
Peripheral Ports |
2 USB Host, 1 mini USB(OTG) , 1 RJ45 |
Optional: RJ11, PS2, DB9(Optional) | |
Buzzer single tone beeper |
Support |
Digital Audiosynthesizer with built-in speaker |
Support |
Built-in Fingerprint Module |
(Optional) |

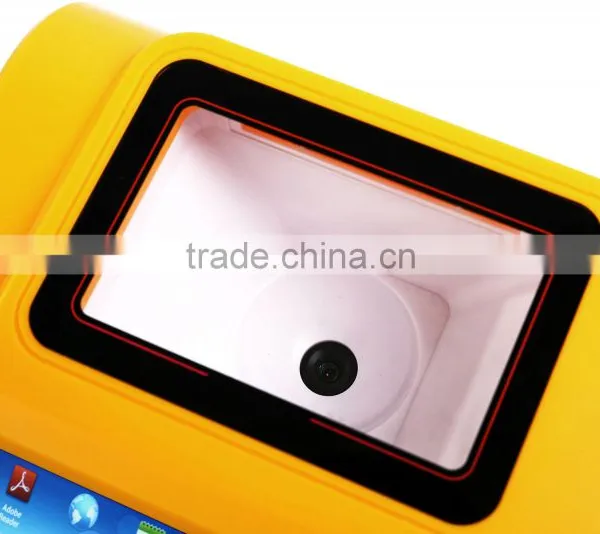

Built-in Camera |
(5 MP, Barcode reader 1D/2D)(Optional) |
Certificate camera |
(5MP, Take certificate photo for person)(Optional) |

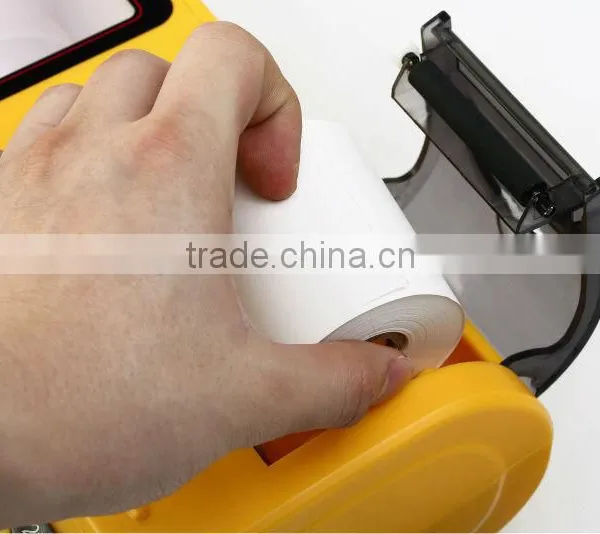

Printer |
Thermal graphic printer |
Speed |
18 lines/sec |
Print paper width |
58mm |
Working Environment: |
Temperature:0°C~50°C; R.H.: 10%~90% (non-condensing) |
Storage Environment: |
Temperature:-20°C~70°C; R.H.: 5%~95% (non-condensing) |
Product Customization
l Our standard products can be branded according to your needs. The color tones, finishing, logo
silkscreen can all be customized to give the products in line with your company image and style.
Custom Design
l Our product design team can help you design your customized product with different form factors,
custom features and functionalities. From electronics, industrial design, artwork design, tooling and
packaging, our experienced electronic, mechanical and industrial design team can offer a tailor-made solution and deliver a unique product for your company.
Software Development Kit
l Our devices have the best coverage of different models running on different platforms. An easy-to-use SDK is available for integration into your own App. The SDK comes with an integration guide and a sample project example. This is your best choice for a customized payment application.
Custom App
l Our application team can help you design your application on different platforms. Our expertise
on both app development and the payment industry can help us provide best service on the design
of payment applications.
Warranty
l We provide one year warranty for main device as well as 24 hours online service to help you
out.
What do I do if?
Q1. I want to check the software version
l Turn on the device, the software version number will be shown on the screen while the device is starting up.
Q2.The device can’t be turned on
l Check the power adapter, or change another workable power adapter.
l Check the battery, or change another normal battery.
l Remove the battery, and only connect the power adapter. Or use the battery only, and do not connect power adapter to test it.
l Then check the Power Supply Circuit and switch on/off the circuit according the test result. If the circuit has no problem, but it still can not turn on, please try to discharge.
Q3. SIM card can’t be detected
l Check whether the SIM card is installed well.
l Install the SIM card again.
l Change another SIM card
l Scrape the surface of the metal spring in the SIM card slot with knife.
l Check whether all the weld point of the SIM card slot is welded well. If not, please weld it again.
l Replace the part of the SIM card slot.
Q4. No wireless signal
l Check whether it has GSM wireless signal in this place. If no or signal is very weak, try to test the device in another place where has good GSM wireless signal. Otherwise, open the shell of the device, and check if the antenna is connected well.
