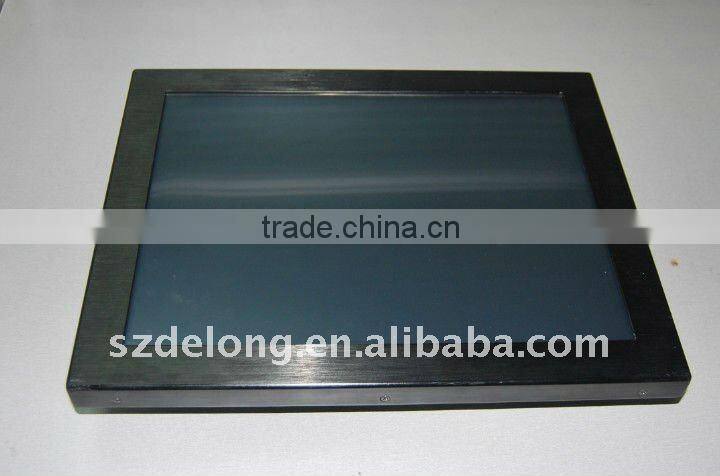

Movbale Harddisk 15'' Touch Screen Embedded Computer With Atom D525
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, all in one,desktop pc ,panel pc ,KIOSK pc ,industrial pc
Screen Size:
Other, 15"
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6 Inch Car Rearview Mirror MonitorNegotiableMOQ: 50 Pieces -
TFT LCD Monitor,aliuminium Case,15 Inch Touch ScreenUS$ 126 - 135MOQ: 100 Pieces
-
7'' Headrest Lcd Car MonitorNegotiableMOQ: 200 Pieces
-
7" Lcd Monitor for Taxi With TouchscreenUS$ 80 - 82MOQ: 50 Pieces
-
DLCARPC High Quality Wall Mounted Vending Machines for E-cigarette Terminal PCUS$ 380 - 780MOQ: 10 Pieces
Products Status
Stock
Type
Other, all in one,desktop pc ,panel pc ,KIOSK pc ,industrial pc
Screen Size
Other, 15"
Processor Brand
Intel
Memory Capacity
2GB
Hard Drive Capacity
160GB
Graphics Card Type
Integrated Card
Display Type
LCD
Widescreen
No
Optical Drive Type
Other, no DVD
Processor Main Frequency
1.8GHZ
Brand Name
OEM or Delong
Model Number
DL150PC-D525
Place of Origin
Guangdong, China
Specifications
15'' touchscreen embedded computer1,Atom Dual D525
2,2G RAM,movable harddisk design
3,fanless,rugged bezel
|
15'' all in one pc with touchschreen monitor embedded computer for supermarket, hotel ,restuarants,hospital using.
movable harddisk design
can be used as KIOSKS pc/POS terminals default 4 wire resistive touch panel ,capatitive or IR touch panel for option 1G or 2G memory 160G or 320G HDD for option black or sliver drawing aluninum bezel for option
we can accept OEM, so if you have some specifial requirements ,you can feel free to contact me .
touchscreen all in one pc key Specifications | |||||
| Motherboard parameters | Atom dual D525 computer motherboard / mainboard | ||||
| CPU Atom D525 dual core,1.8GHZ | |||||
| 4W,SUPPORT HT TECH,512KB L2 CACHE,533MHz FSB | |||||
| Chipset 1.Interl GMA3150,SUPPORT DirectX 10,Shader Model 4.0,Pure Video HD | |||||
| Memory 1. 2x 1.8V DDR2 SODIMM , up to 2GB | |||||
| Graphics 1. Onboard nVidia ION GT218 graphic core, support DirectX 10 | |||||
| Audio 1. On board Realtek ALC 662 | |||||
| LAN 1. Onboard Realtek 8111C, dual 1000M LAN | |||||
| Support 6*USB 2.0 ports (2 need cable to connect) | |||||
| SUPPORT DirectX 10,Shader Model 4.0,Pure Video HD | |||||
| 4 x SATA | |||||
| 1 x CPU fan header CPU | |||||
| 1 x system fan header | |||||
| 1 x DVI port ; DOUBLE 18BIT /24BIT LVDS | |||||
| 1 x HDMI port | |||||
| 2 x USB 2.0 ports | |||||
| 1 x RJ-45 ports ,2*MINI PCI-E | |||||
| 2 x audio jacks | |||||
| Work temperature 0~60 °C | |||||
| Work humidity 10%~80% relative humidity, without freeze | |||||
| Windows7/Windows XP and Linux Ubuntu 7.1 (with Device Driver) | |||||
| WEBCAM | Integrated in the chassis 1.3MP USB INTERFACE | ||||
| RAM | 2G ROM DDR2 DIMM x1 | ||||
| disk driver | 160G 2.5inch mini disk | ||||
| power supply | DC12V—ATX power ,AC220V – DC12V | ||||
| touch panel parameters | LCD panel: | SHARP/AU/chimei/samsung | |||
| Working Voltage: | DC 11V-15V | ||||
| Working Temperature: | -10°C~60°C | ||||
| Input configuration: | RCA / VGA /TV | ||||
| Screen size: | 15 inches (4:3 diagonal) | ||||
| Resolutions: | 1024(H)×768(V) pixel 4:3 Screen Aspect Ratio | ||||
| Dimensions | (Screen) 13.7"W*10.2"H*1.0"D | ||||
| Vieing Angle | 40 UP/70 Down/ 75 Left /75 Right | ||||
| Brightness: | 350cd/m2 | ||||
| Contrast: | 400:1 | ||||
| Power consumption: | ≤ 30W | ||||
| wireless Remote control | Ok | ||||
| touch resolution | 2048*2048 | ||||
| touch controllor | 4 wire resistance / 5WIRE RESISTANCE (ADD10USD) | ||||

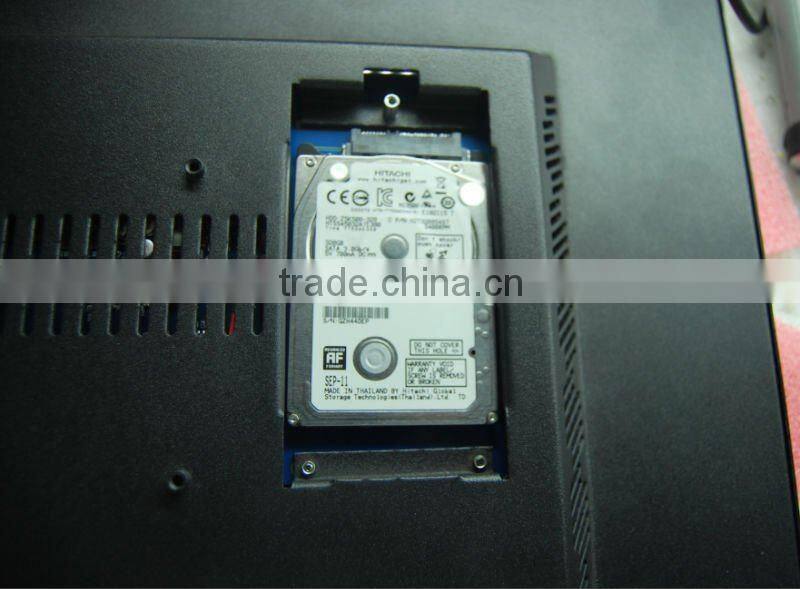

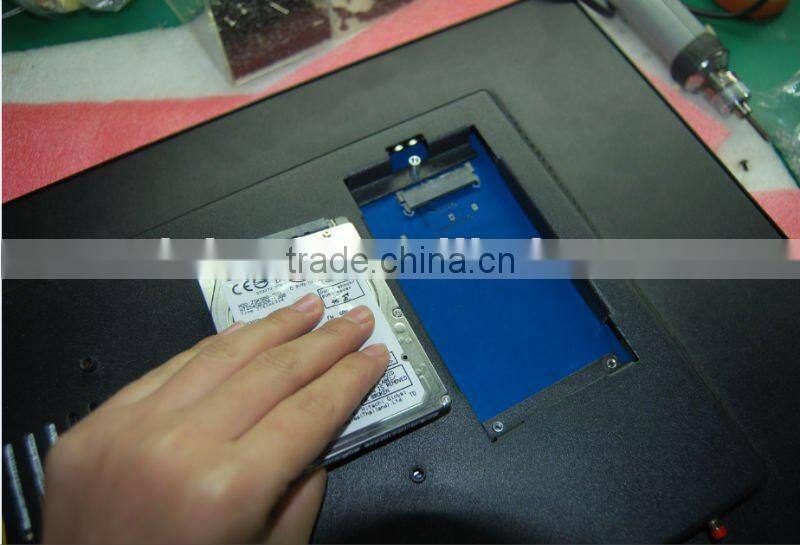

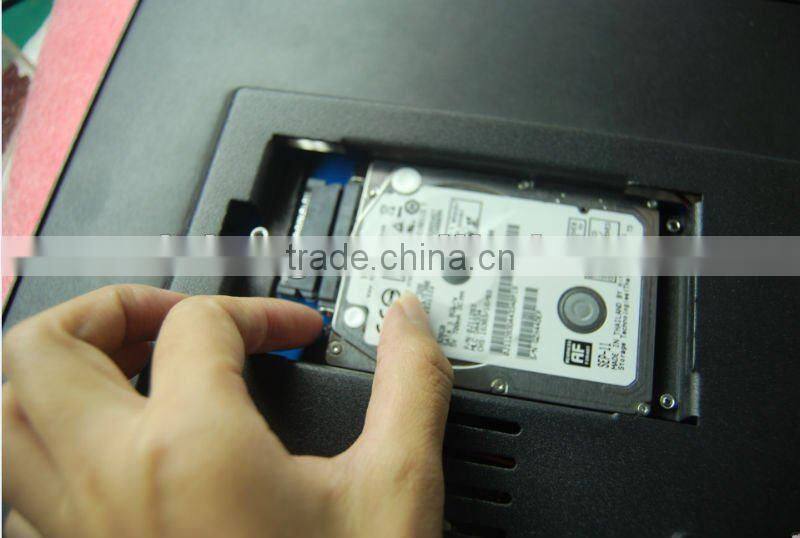

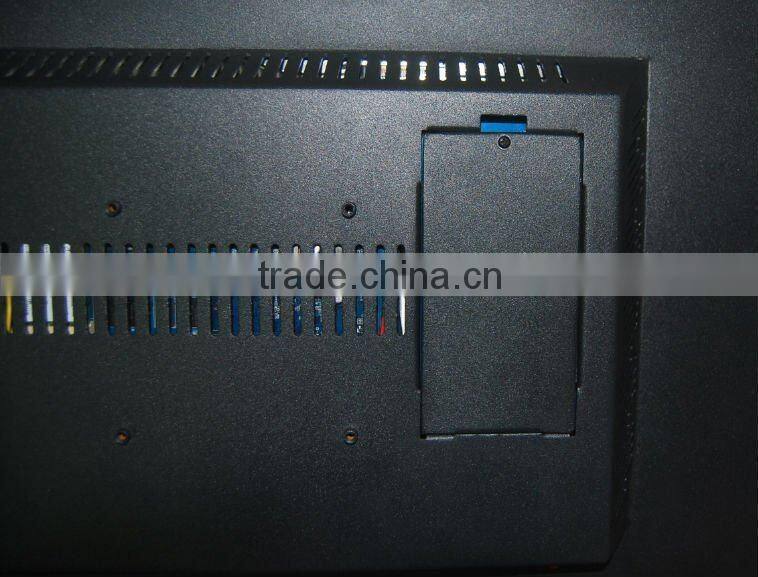

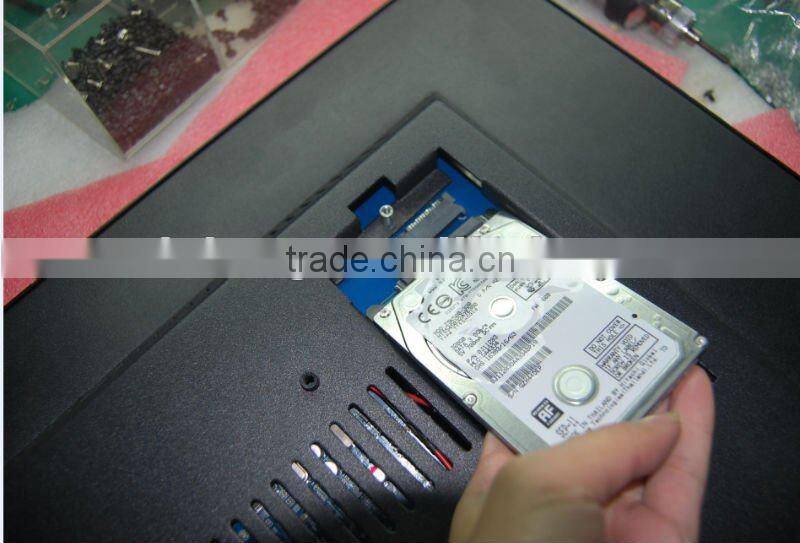

movable harddisk view:
