10.4 Inch LCD Industrial Touch All In One VGA MINI PC

Specifications

Application: Hotel,Restaurant, for Car, advertisement machine, lab, School,Library AIO PC for any industrial project.

 All in one pc  /touch pc

Other pretty size from 10.4inch to 22inch

nfig you maybe like:

(1). Prossecor: Intel Atom N330,N270,D525

or Intel Pentium E5400,E5300, etc.

or  Intel core 2, core i 3 / i 5/i7 ,etc

(2).Memory:1GB,2GB,3GB,4GB,8GB

(3)System Bus Frequency:1.6Ghz,1.66Ghz,1.8GHz,2.0Ghz,2.93Ghz,etc.

(4)Motherboard:Intel 945 GC, Intel G31,Intel G41,Intel H55 etc.

 we change config according to your requirement. and our technician suggest as follows:

 MAIN FEATURES:
1) Onboard Intel Atom N270 1.6GHz CPU +4 COM+ TV port+ LVDS
2) CPU: Intel Atom CPU (onboard) N270 1.6GHz
3) Chipset: Intel 945GSE+ICH7-M
4) FSB: 533 MHz
5) Memory:2G  DRII3,

6) Graphic Card: GMA950, support DX9.0
7) Audio: 6 sound channel
8) LAN: Onboard with 1000M LAN
9) Storage Interface: 1*IDE, 1*MINI IDE, 2*SATA300MB/s,
10) Expansion slot: 1*PCI, 1*MINI PCI-E, 1 x DDR2 200PIN SODIMM
11) USB: 8*PCS (4PCS on back panel)
12) Back Panel Connectors: 1*PS/2+1*VGA+1*TV out +4*USB+2*RJ45 (1000M) +2*Audio Jacks
13) Form Factor: ITX 170*170MM
14) (on board) 1*MINI PCI-E, 1*MINI IDE, 1*CF card DIMM, 4*COM
15) (On board) Intel Atom CPU N270 1.6G Hz Support Dual 1000M LAN
16) Memory: DDR2 400/533MHz 200PIN SODIMM; It can be up to 1GB
17) Monitor Size: 10 inch touch TFT LCD
18) Monitor Type:  4 Wire Resistive
19) Resolution: 800*600
20) Screen Size: 4:3
21) RAM: 2G DDR3
22) HARD DISK: 4GB SSD  or 160G HDD
23) Operation System: WIN XP,2000,ME,CE/Linux/Vista and Win 7.
24) POWER SUPPLY: SUPPLY DELAY SHUTDOWN TIME AND START TIME
OPTIONAL ITEMS:
1) Hard Disk:  8GB SSD or 160GB HDD
2) Mother Board:  NVIDIA MCP79 chipset with CPU Intel Atom N330,core duo
3) 1GB To be 2GB RAM
4) GPS receiver
5) Bluetooth
6) USB Remote Controller
ACCESSORIES:
1PC Power supply adapter
1PC Touch Pen
1PC Remote Controller
VESA stand for installation (Optional)
1PC CD Drive

 Notice

1,import duties,taxes and charges are not include in the item price or shipping charges.these charges are the buyer’s responsibility.

2,please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.

fanless  design,low power consumption,no noise:

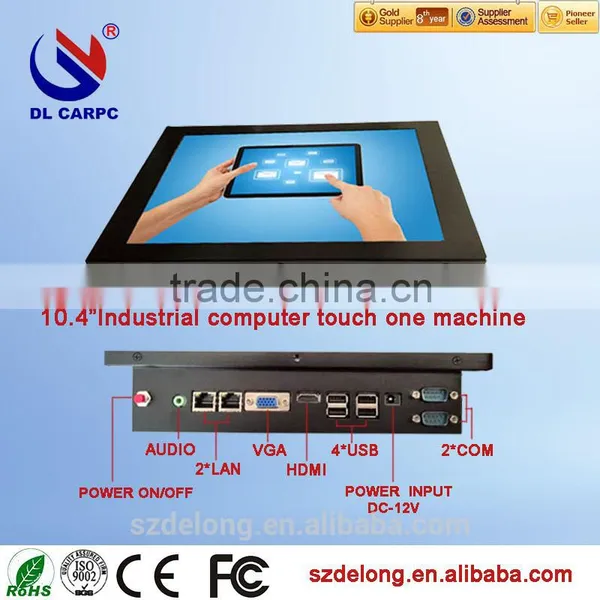

VGA,RS2323,RJ45,ETC,PORT:

 support 100mm*10mm VESA holes:

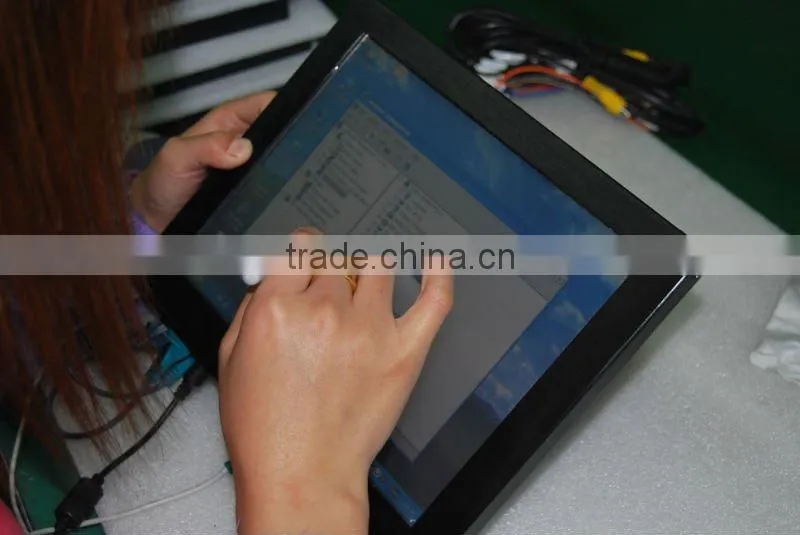

testing view ,finger or pen touch:

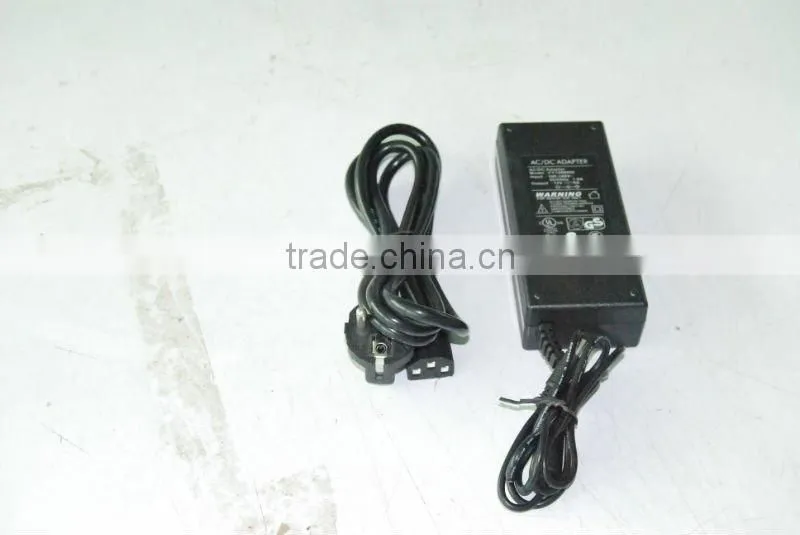

power adapter,we have UK,US,EU etc ,.standard for you choose:

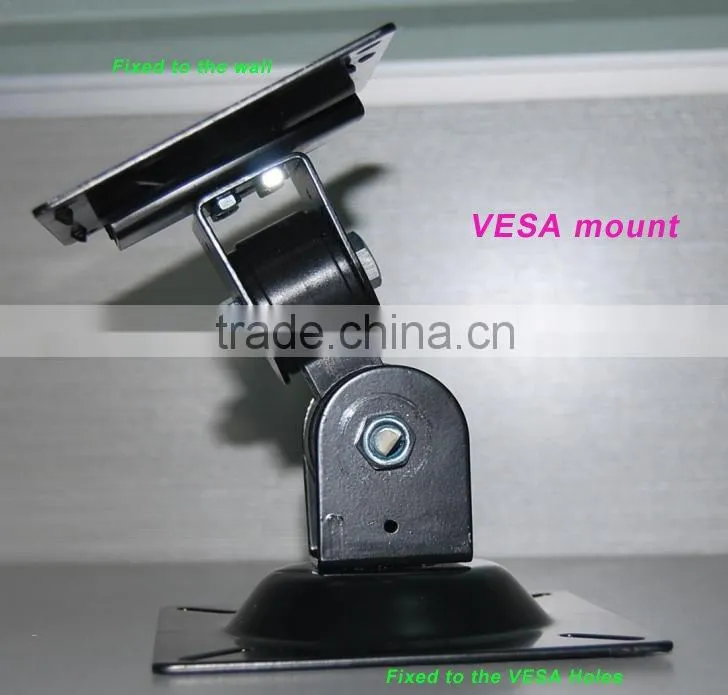

wall-mount VESA:

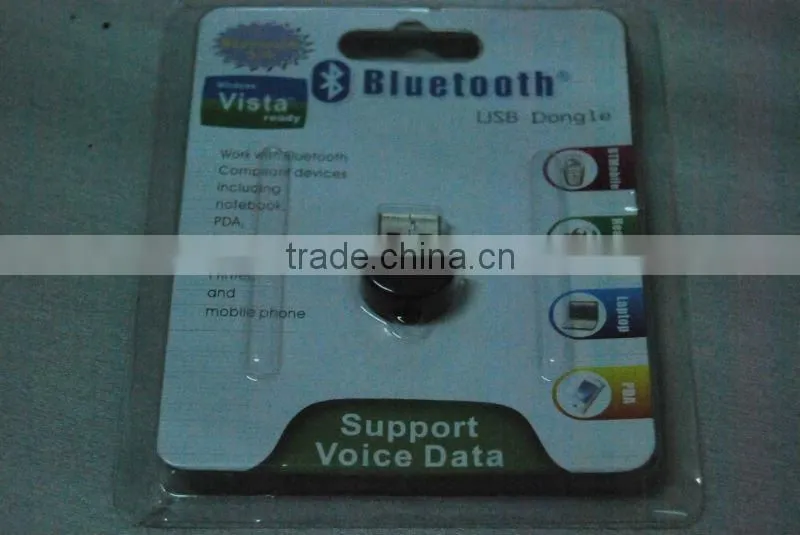

the bluetooth:
