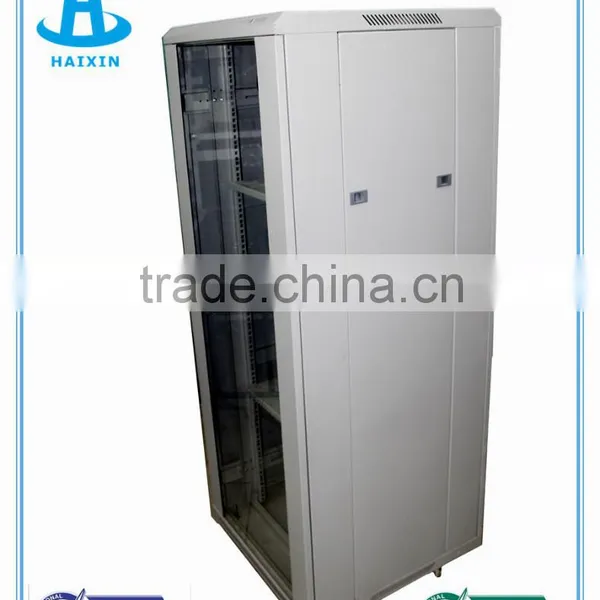

High Quality Data Rack Cabinet Network Server Cabinet 32U
US$ 30 - 200
/ Set
10 Sets(Min. Order)
- Shenzhen Shanghai
- Credit Card
You May Like
-
Wall Mount Cabinet 6U Data Rack Cabinet Network Server Cabinet
-
32U Safety Network / Server Cabinet Data Rack Cabinet With Locking
-
High Quality Data Rack Cabinet With Locking Network Server Cabinet 32U Quality Choice
-
High Quality Network Cabinet Server Cabinet
-
Wall Mount Locking Network Cabinet 6U Data Rack Cabinet Network Server Cabinet With Cooling
-
32U Safety Network / Server Cabinet Data Rack Cabinet
Product Details
| Products Status | Stock | Cabinet Standard | ANSI/EIA RS-310-D,IEC297-2,DIN41494, GB/T3047.2-92, ETSI. | |
| Material | SPCC Cold Rolled Steel | Size | 600MM*600MM*1600MM | |
| Place of Origin | Sichuan, China | Model Number | NC-G632 |
Product Description
Parameters
| Material | SPCC cold-rolled steel |
| Thickness of steel | mounting profile: 2.0mm, mounting angle: 1.5mm, others: 1.2mm. |
| Maximum load | Static load of 800 kg |
| Surface Process | Degreasing, pickling, phosphating, electrostatic pensu |
| Standards | ANSI/EIA RS-31O-D, IEC297-2, DIN41491, DIN41494, GB/T3047.2-92, ETSI Standard. |
| Degree of protection | IP20 |
Features
1. Exquisite design with precision measurement and craftsmanship
2.Welded frame,more stable structure.
3. internal tray space can be adjusted freely according to customer's requirement.
4.Adopt advanced spin door locking
5.High-density vented front door (patent) & rear door enable equipment protection, ventilation and reliable operation.
6.Two cooling fun installation on top
7.Equipped with universal high heavy-duty casters, high bearing reinforced bolts.
8.The front door use the inside frame installation, sealed and equipped with 4 mm thickness organic glass observation window, and 4 mm thick toughened glass is optional.
9.Various optional accessories.
Buying Guides
Model options
| Model | Width | Size | Capacity | |
| D618 | G618 | 600mm | 600*600*1000 | 18U |
| D624 | G624 | 600mm | 600*600*1200 | 24U |
| D628 | G628 | 600mm | 600*600*1400 | 28U |
| D632 | G632 | 600mm | 600*600*1600 | 32U |
| D638 | G638 | 600mm | 600*600*1800 | 38U |
| D642 | G642 | 600mm | 600*600*2000 | 42U |
Color options:
D for Dark
G for Gray

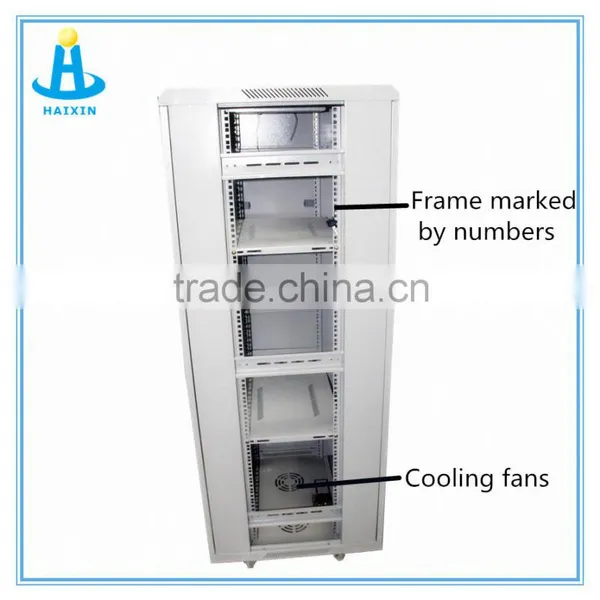

Detailed Images
Customer Application
