10.4 inches industrial panel pc with touch / GPS/WIFI/Intel Atom N270

Specifications

1)10.4 industrial panel pc with touch / GPS/WIFI/Intel Atom N270
2)TFT LCD Digital touch
3)CPU Atom N 270 1.6GHZ
4)1GB MEMORY

      10.4 inches industrial panel pc with touch / GPS/WIFI/Intel Atom N270

The DL104PC is a rugged FAN less industrial panel pc designed for light industrial, medical, kiosk and vehicle mount applications. This compact fully enclosed chassis computer features the latest embedded computing platform by Intel FAN less ATOM N270 1.6GHz.

 10.4pc Features:

1.Intel Atom N270 1.6GHz

2.Fanless design

3.GPS/BLUETOOTH/WIFI optional

4.1 year warranty

industrial touch panel pc key Specifications
MAINBOARD SPECIFICATION	onboard Intel Atom N270 1.6GHz CPU +4 COM+ TV port+ LVDS
	CPU: Intel Atom CPU (onboard) N270 1.6GHz
	Chipset: Intel 945GSE+ICH7-M
	FSB: 533 MHZ
	Memory: DRII533, 1 x DDR2 200PIN SODIMM
	Graphic Card: GMA950, support DX9.0
	Audio: 6 sound channel
	LAN: Onboard with 1000M LAN,
	Storage Interface: 1*IDE, 1*MINI IDE, 2*SATA300Mb/s,
	Expansion slot: 1*PCI, 1*MINI PCI-E, 1 x DDR2 200PIN SODIMM
	USB: 8*PCS (4pcs on back panel)

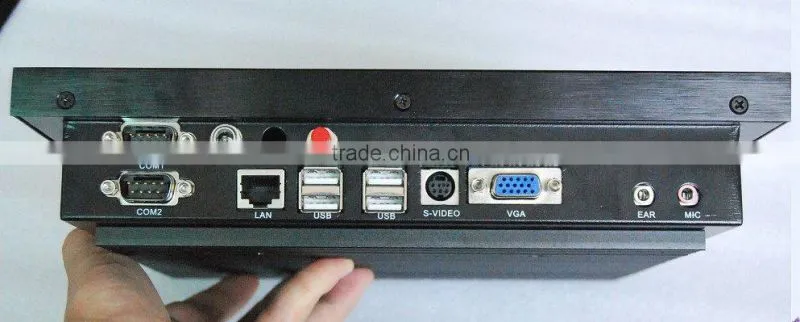

	Back Panel Connectors:
	1*PS/2+1*VGA+1*TV out +4*USB+2*RJ45 (1000M) +2*Audio Jacks
	Form Factor: ITX 170*170MM
	(on board) 1*MINI PCI-E, 1*MINI IDE, 1*CF card DIMM, 4*COM
	(On board) Intel Atom CPU N270 1.6G Hz  Support Dual 1000M LAN
	Memory: DDR2 400/533MHz 200PIN SODIMM ; it can be up to 1GB
	MONITOR	10.4INCH NEW PANEL
	RAM	1G RAM
	Hard disk	4GB SSD CARD or 120G HDD
	GPS	OPTION
	BLUETOOTH/WIFI	OPTION
	power supply	supply delay shutdown time  and start time
Accessories	1pcs Power supply adapter
	1pcs Touch Pen
	1pcs Remote Controller

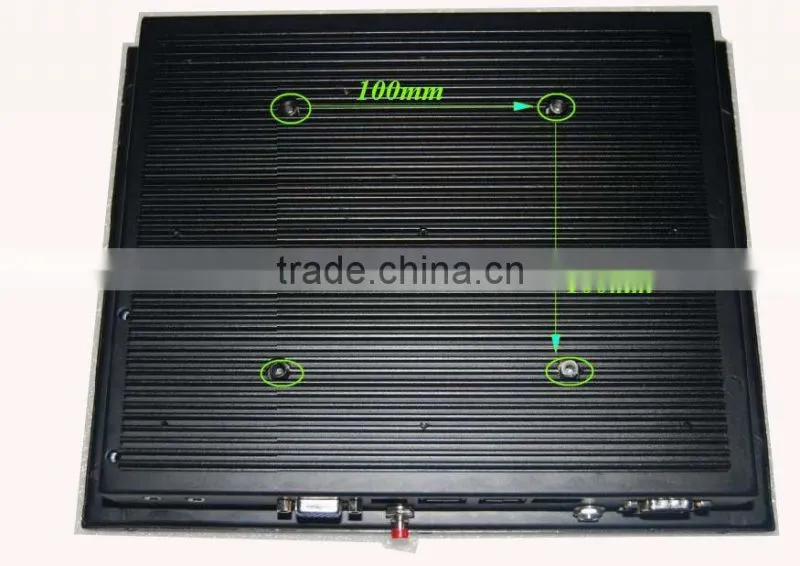

	VESA stand for installation (need extra pay USD15 for the VESA Stand)
	1pcs CD Drive

1,import duties,taxes and charges are not include in the item price or shipping charges.these charges are the buyer’s responsibility.

2,please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.







...
