Help CenterFactory Price 8 Inch Tablet Mini pc Zigbee Android All in One pc With Hdmi Quad Core
Related Products
-
10.4" Touchscreen Monitor With VGA Can Match With GPS and Car pc and 2AV PortUS$ 110 - 120MOQ: 100 Pieces -
22" i3 All in One Lcd pc With H61 Express Chipset ,i3 Processor,IR Multi Touch ScreenUS$ 650 - 750MOQ: 1 Piece
-
2013 Popular 17 Inch Built in WEBCAM and DVD ROM TOUCH ALL IN ONE PCUS$ 300 - 550MOQ: 100 Pieces
-
1 Year Warranty DL 22 Inch LCD Panel All In One Cheap Computers With VGA/ HDMIUS$ 450 - 500MOQ: 1 Piece
-
10.4inch FANLESS ALUMINIUM TOUCH ALL IN ONE COMPUTERUS$ 300 - 480MOQ: 10 Packs
Specifications
Tablet mini pc zigbee android all in one pc with hdmi quad core2G RAM,160G HDD
universe mini fanless pc
Aluminum case
.
Factory price 8 inch tablet mini pc zigbee android all in one pc with hdmi quad core
| System parameters | Working Voltage | DC 11.5-13V DC,AC100-240V | |||
| Working Current | 1200MA | ||||
| Working Temperature | -40~60°C | ||||
| Input configuraion | Two video input ( VGA ,AV1 ) | ||||
| Aspect Ratio | 4:3 8 inches (diagonal) | ||||
| Resolutions | 800(H)×(RGB)×600(V) | ||||
| Adjust Angle | Verticale and Horizontal | ||||
| Touch Screen | USB2.0 | ||||
| Chromatic System | PAL/NTSC Auto Switch | ||||
| Contast | 500:1 | ||||
| LCD Brightness | 350 cd/m2 | ||||
| View Angle | 45/60(U/D), 65/65(L/R) | ||||
| Parameters about the motherboard | onboard Intel Atom N270 1.6GHz CPU +4 COM+ TV port+ LVDS | ||||
| CPU: Intel Atom CPU (onboard) N270 1.6GHz | |||||
| Chipset: Intel 945GSE+ICH7-M | |||||
| FSB: 533 MHZ | |||||
| Memory: DRII533, 1 x DDR2 200PIN SODIMM | |||||
| Graphic Card: GMA950, support DX9.0 | |||||
| Audio: 6 sound channel | |||||
| LAN: Onboard with 1000M LAN, | |||||
| Storage Interface: 1*IDE, 1*MINI IDE, 2*SATA300Mb/s, | |||||
| Expansion slot: 1*PCI, 1*MINI PCI-E, 1 x DDR2 200PIN SODIMM | |||||
| USB: 8*PCS (4pcs on back panel) | |||||
| Back Panel Connectors: | |||||
| 1*PS/2+1*VGA+1*TV out +4*USB+2*RJ45 (1000M) +2*Audio Jacks | |||||
| Form Factor: ITX 170*170MM | |||||
| (on board) 1*MINI PCI-E, 1*MINI IDE, 1*CF card DIMM, 4*COM | |||||
| (On board) Intel Atom CPU N270 1.6G Hz Support Dual 1000M LAN | |||||
| Memory: DDR2 400/533MHz 200PIN SODIMM ; it can be up to 1GB | |||||
| MONITOR | |||||
| 2G RAM | |||||
| 160G Hard disk | |||||
| BLUETOOTH/WIFI | |||||
| power supply | |||||
| Required specifications | Touch function | ||||
| 1*LAN port | |||||
| 2* USB port | |||||
| AV input | |||||
| 2G RAM | |||||
| 160G Hard disk | |||||
| wifi built in ,bluetooth for option | |||||
| Fanless design,supprt 100mm*100mm VESA | |||||
| windows xp system | |||||
| Accessories | 1pcs Stand Shelf | ||||
| 1pcs AV Cable | |||||
| 1pcs Instruction Manual | |||||
| 1pcs CD Drive | |||||
| 1pcs Touch Pen | |||||
| Some Screw for Fixing the Shelf | |||||
Can be customized.
Android system or window system is optional.
Restautant pos system, retail pos system, pos system for lottery, pos system printer, supermarket pos system is all can be customized.
fanless design,low power consumption,no noise:

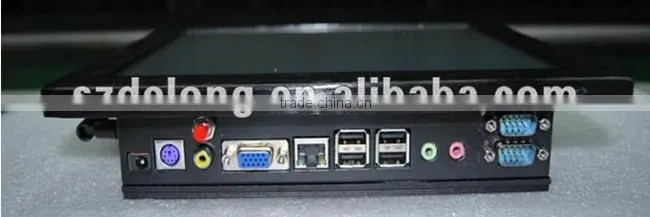

VGA,RS2323,RJ45,ETC,PORT:

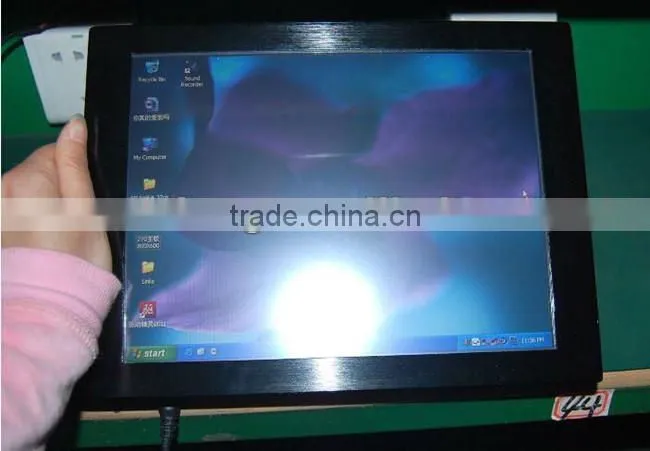

Product Picture

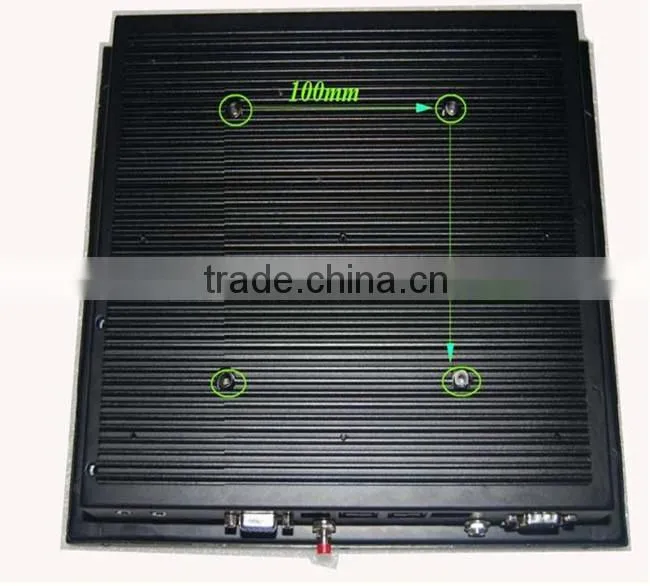

support 100mm*10mm VESA holes:

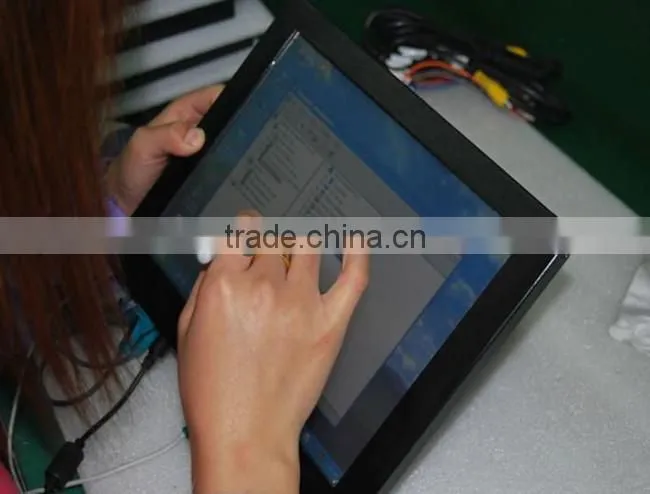

testing view ,finger or pen touch:

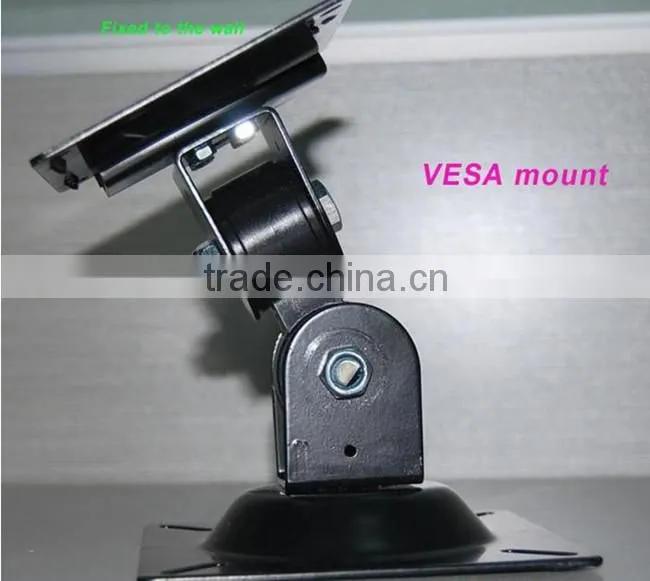

wall-mount VESA:
Factory price 8 inch tablet mini pc zigbee android all in one pc with hdmi quad core
Shipping:
1,We are shipping to worldwide except some countries which due to custom issue: Brazil, Turkey, Russia and far area and you can not accept for additional charge for far area fees.
2,Import duties, taxes and charges are not included in the item price or shipping charges.These charges are the buyer's responsibility.Please check with your ountry's customs office to determine what these additional costs will be prior to placing
3,we accept Drop shipping, the buyer can't see any informantion about us when they received package, we are not responsible for any accidents,delays or other issues that are the responsibility of the shipping service
Warranty Terms:
1, We provide one year warranty,If you feel desappointed with the item, please notice us within 7day of delivery
2, All the items must be returned in original condition for refund /exchange,the buyer is responsible for all shippig costs incurred,maybe you have frustrations,please contact us before
opening and dispute or leaving any nertral/negative feedback, we carefull to do our endeavor to solved any problem in a good bussiness manner;
We are committed to providing top quality and great service all the time
...
