1. Our MOQ is usually 10 CTNS.
2. The time of delivery is around 15 days.
3. We ship the goods via Ningbo or Shanghai port.
4. We accept 30% T/T in advance,70% in the period of shipment or 100% L/C.
5. You can contact us with Trade Manager or send us an email by click Contact Supplier bottom.
6. We could send you the samples ,most samples are free to send ,transport fee should be paid by you.
7. Sample time:1days
8. Package: Pack in clean white plastic bag package inner side and three crimp paper package outside
9. Trade Terms:FOB,CIF,CFR,etc
10. OEM is accept, print your logo or brand on the products body.
|
Zhejiang Linglong pipes Systems Co., LTD specializes in the production of a variety of high-grade brass valves, brass fittings and multilayer pipes. Our products divide to nine series: PP-R piping systems , electroplate aluminum plastic compound tube adapter series , brass aluminum plastic compound tube adapter serious , water divider systems , heater-supply pipe systems , PE-X supply water systems , Aluminum-plastic PP-R systems , valves systems and thread &solder copper alloy fittings. Zhejiang Linglong has a very extensive marketing and operations network – the company has over 100 agencies and sales offices in China and overseas. Relying on our enviable reputation and company image, our product excellence and innovation, and our extensive technical expertise, Zhejiang Linglong has become a major player in the global market. Zhejiang Linglong has always been keeping on the goal of “Promoting Development on Quality and Expending Market on Fame”, striving to develop and produce new-type water-plumbing popes so as to improve the customers' life quality and promote their health. We warmly and sincerely welcome all friends from home and abroad come here and give you a pleasant surprise. We always seek to exploit new markets , and our products are sold widely across Europe, America and Southeast Asia. |

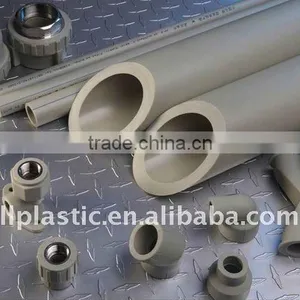

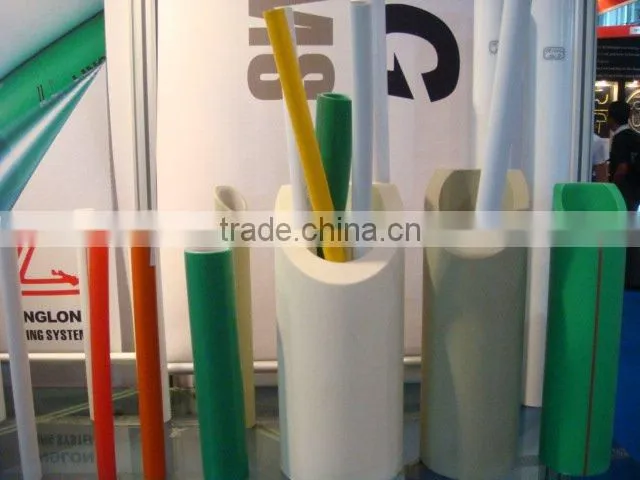

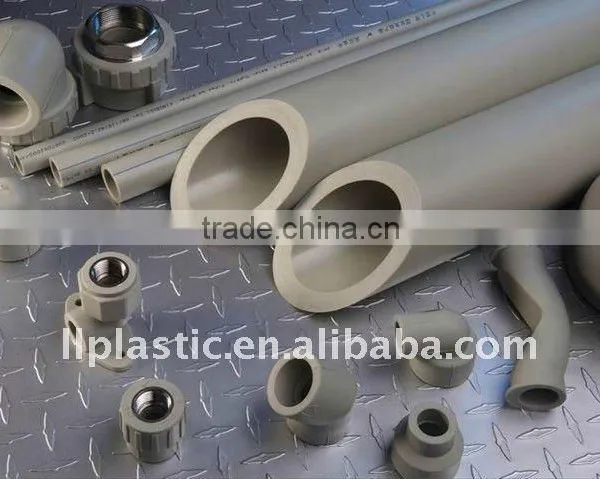

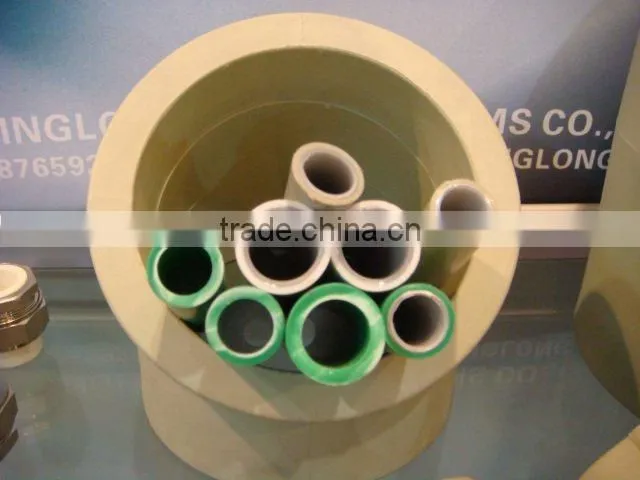

Name: ppr pipe
Features:
- Material: Random Polypropylene(Type 3)
- Sizes: 16mm to160mm
- Pressure Rating: 1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
- Colors: light grey, white or other colors on request
- Connection: socket fusion joint, electro fusion joint or transition joint
- Standard: ISO15874 tested by Bodycote, BS6920 tested by WRAS
- Certification: ISO9001, ISO14001, OHSAS18001
- Applications: Cold or hot water supply, heating system including flooring heating, wall heating and radiating system, Central air conditioning system, industrial liquids transportation
Advantages:
- High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
- Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
- Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
- Corrosion Resistant: resist chemical matters or electron chemical corrosion
- Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
- Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
- Long Life: more than 50 years under normal conditions
- Recycled and Environment-friendly
PP-R Water Supply Pipe
|
|
PN 1.0MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
|
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
16 |
|
|
|
|
20 |
2 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
2.9 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.3 |
63 |
5.8 |
7.1 |
8.6 |
10.5 |
75 |
6.8 |
8.4 |
10.1 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15 |
110 |
10 |
12.3 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26.6 |
If anything you are interested in, pls feel free to contact me, we will give your large discounts.
