Specifications

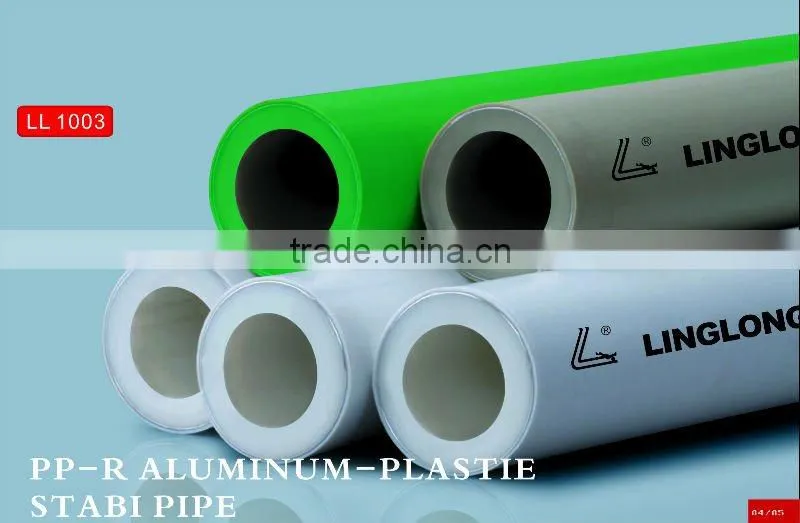

THE HIGH QUALITY PPR AL-PLASTIC STABI PIPE.SIZE IS RANGING FROM 20-110MM
COLORS CAN ACCORDING TO CLIENTS' DEMAND.
DETAILS:
The high quality, hygienic ,nontoxic,heat-resistant, durable, good-looking, qualified ppr al-plastic stabi pipe.
THE NAME: PPR ALUMINUN-PLASTIC STABI PIPE
MIN.ORDER: 100 PIECES, IF YOUR ORDERS IS LOWERS THAN THIS ,PLS CONTACT US.
MATERIAL: POLYPROPYLENE WITH ALUMINIUM
PRESSURE RATING :25Mpa
STANDARD:ACCOUNDING TO GB/T18742.3 AND DIN8077/8078
COLOR: WHITE GREY RED BLUE GREEN AND OTHER COLORS ACCOUNDING TO CLIENTS'NEEDS.
DELIVERY TIME: IN 10-25 DAYS AND WE HAVE ABLITY TO DEAL WITH URGENT ORDERS.
PACKAGING : CARTON BAGS WITH INNER SMALL PE BAGS AND THE FRONTS AS CLIENTS' DEMAND.
SIZE: 20-110MM
DETAILED INFORMATION:
| Diameter | thickness/e(mm) | |||
size | Dn(mm) | PN10 | PN16 | PN20 | PN25 |
Dn20 | 20 | 2.0 | 2.3 | 2.8 | 3.4 |
Dn25 | 25 | 2.3 | 2.8 | 3.5 | 4.2 |
Dn32 | 32 | 3.0 | 3.6 | 4.4 | 5.4 |
Dn40 | 40 | 3.7 | 4.5 | 5.5 | 6.7 |
Dn50 | 50 | 4.6 | 5.6 | 6.9 | 8.3 |
Dn63 | 63 | 5.8 | 7.1 | 8.7 | 10.5 |
Dn75 | 75 | 6.9 | 8.4 | 10.3 | 12.5 |
DETAILED PICTURES:
Advantage:
- High temperature resistance: the maximum sustained working temperature is up to 70°C,the maximum transient temperature is up to 95°C
- Heat preservation: low thermal conductivity result in preserving heat
- Non-toxic: No heavy metal additives , would not be covered with dirt or contaminated by bacterium
- Lower installation costs: light weight and ease of installation can reduce installation costs
- Higher flow capacity: smooth interior walls result in low pressure loss and high volume
- Excellent Flexibility: can be supplied in coil
- Longevity: more than 50 years under proper use
- Recycled and environment – friendly
Application:
- cold and hot water supply
- heating system including flooring heating
- heating and radiant system
- central air conditioning system
- industrial liquids transportation
If you have intereted in our products,pls do not hesitate to contact us. OEM IS ALSO WELCOMED.
