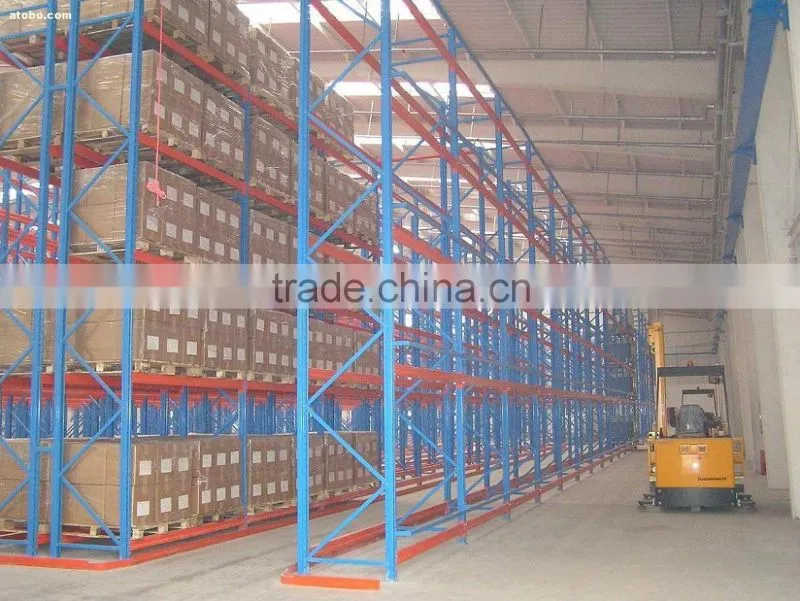

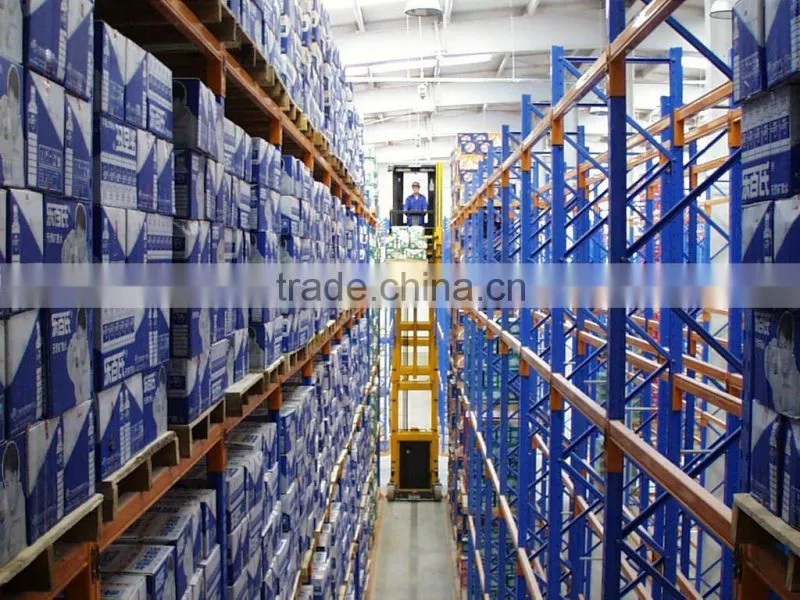

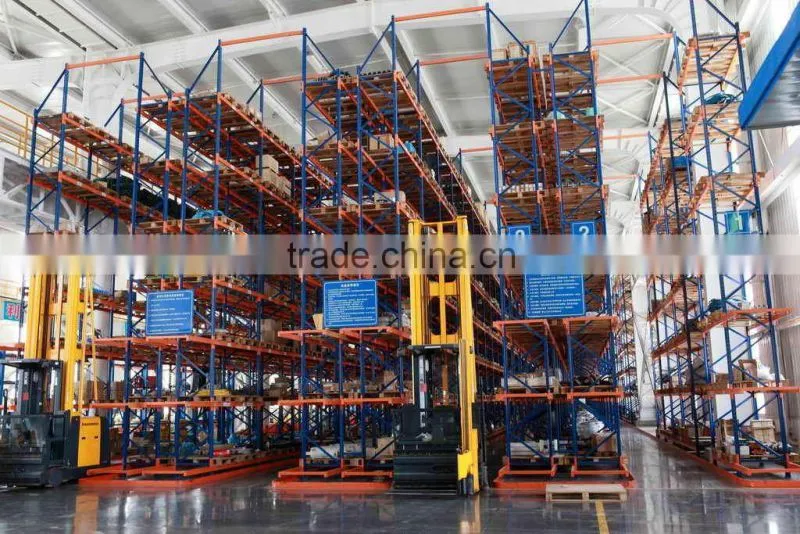

Heavy Duty Warehouse Storage Rack

Length

width

Height

layer

capacity

1500

900

3000

2/3/4/5/6..is ok

meet your demands

2000

1000

4000

2500

1200

5000

3000

1500

6000

we can design according your product and warehouse!

• Pallets can be located, accessed and moved individually.
• Rapid handling of almost all types of palletised goods.
• Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
• Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
• Strength and rigidity prevents compression damage to goods.
• Bottom level of pallets can be stored on the floor, lowering structure costs.

• Loading capacity: 500-4,000 kgs UDL/beam level.
• Height: 1,000-11,000mm
• Depth: 400-1,500mm
• Length: 1,500-3,300mm
• Specail sizes also avaiable to specific storage needs.

• Upright section: There are 3 models for upright; they respectively are 90*60*1.5(or 2.0) mm, 100*75*2.0(or 2.5) mm, 120*90*2.0(or 2.5) mm. We will choose one according to your storage situation.
• Box beams section: there are 2 types for beam, one is Square Tube Beam with 80*40*1.5mm, 100*50*1.5(or 2.0) mm and 120*60*(or 2.0) mm.

  Another is double C shape beam, with size 85*30*1.2(or 1.5) mm, 85*40*1.5mm, 105*40*1.5mm, 125*40*1.5mm, 125*45*1.5mm, 145*45*1.5(or 2.0) mm. We will choose one according to your storage situation.

• High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.

• High-quality Powder Coating Finish.

• Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.

• Goldwinner ® Warehouse racking system, ISO certified, is designed and manufacturered to European Racking Code FEM 10.2.02, the Australian Standard - Steel Storage Racking AS4084-1993, and American racking standards.
