Radio Pallet Shuttle Rack System

Name: Radio Pallet Shuttle Rack System
Brand: HEGERLS
Availability: InStock

FOB Price

USD $50 - $500 / Set

10 Sets(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	HEGERLS
Model Number	HGLS-S01	Type	Other, shuttle racking
Scale	Heavy Duty	Capacity	500-1500kg

Product Description

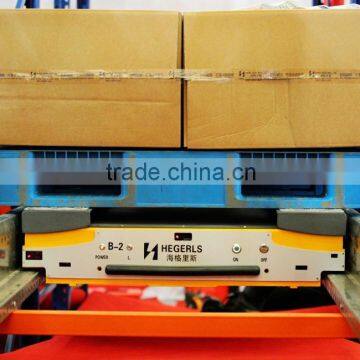

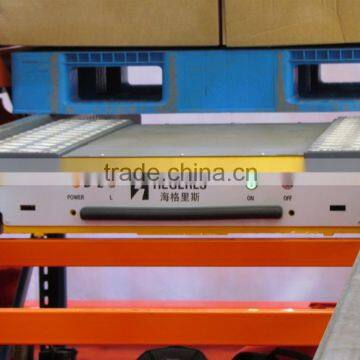

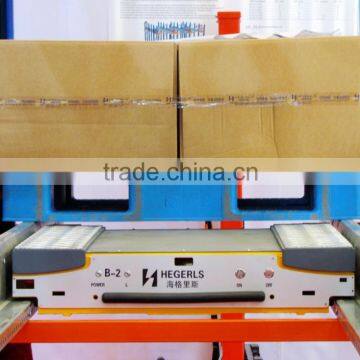

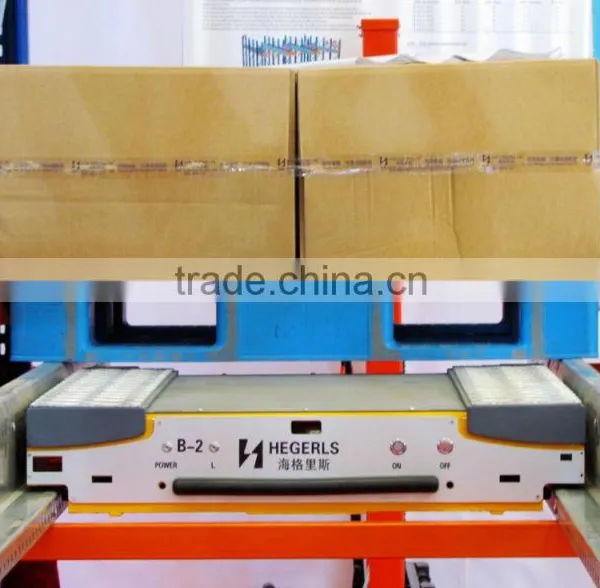

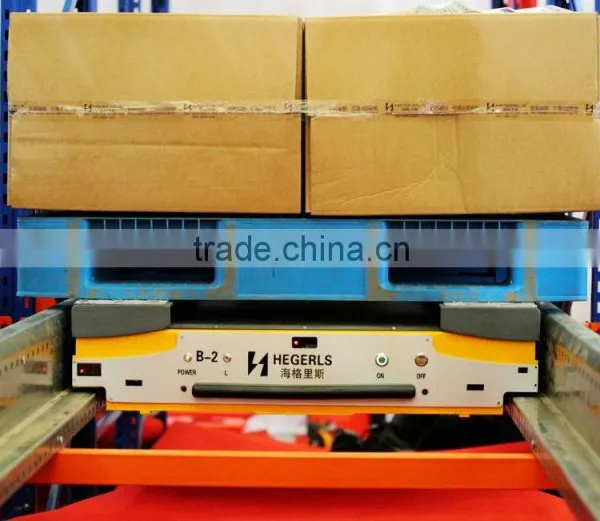

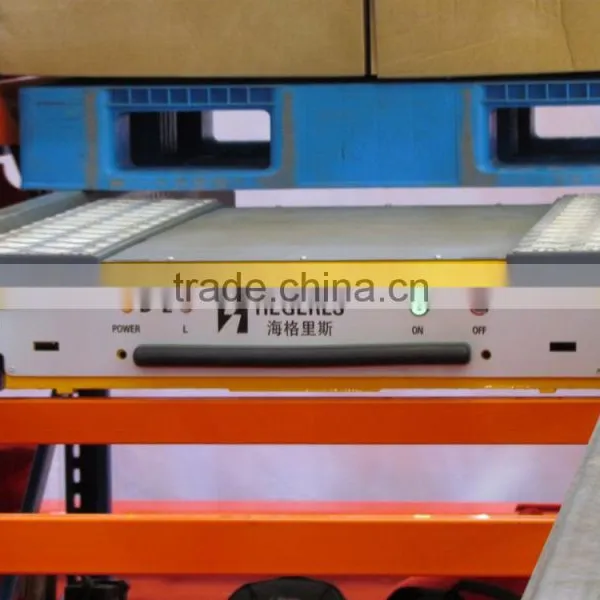

Radio Pallet Shuttle Rack System

Production Description

For the shuttle

Radio Shuttle / Radio Guide Vechile		Model
Item	parameter	RGV-500		RGV-1000					RGV-1500
1	Suitable Pallets :
1.1	Standard Pallet: L x W mm	W1200 X D1000mm
1.2	Size Range Available :L x W mm	W1100 ~1250, D800 ~1100mm
1.3	Styles of Pallet Bottom	"" or""
1.4	Material of Pallet	Wood,Plastics,Steel
1.5	Deflection of Pallet	Max 20mm
2	Total Weight of Loading	Max 500Kg		Max 1000Kg			Max 1500Kg
3	Model of Running	In the rails
4	Data of Running:
4.1	no load Running	1.1m/s
4.2	full load Running	0.9 m/s				0.7 m/s			0.5 m/s
5	lift parameter
5.1	Time of Single Lift	2s		2.3s				2.5s
5.2	height of Lift	40mm
5.3	space between pallet and rail	13mm
6	specification of RSC:
6.1	Outside Dimensions L x W x Hmm	L1100xW977x 198mm
6.2	Weight of RSC	242Kg			268Kg			300Kg
6.3	Plate Size of Equipment	L1030xW185xT3.5mm,2Pcs
6.4	Inner Width of Fork	230mm
6.5	Width of Single Fork	236mm
7	Driver Motor for movement	Lenze 24V 370W
8	Wheels of Running	φ120mm Vulkollan
9	Driver Motor for Lifting	Lenze 24V 370W

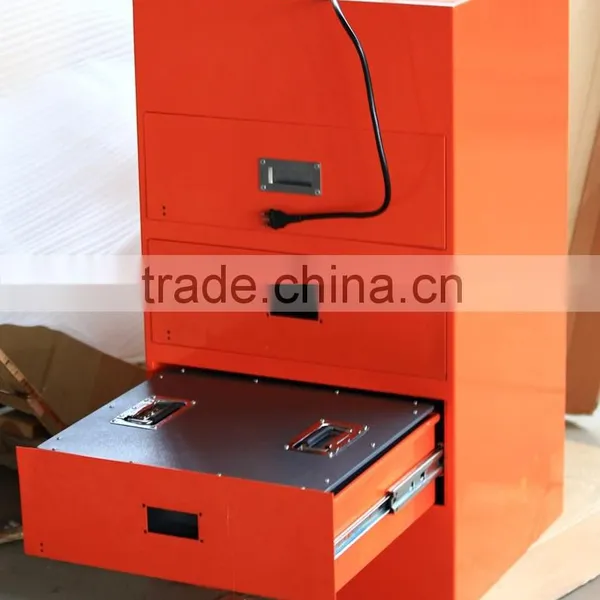

10	Battery Capacity	24V 60AH
11	Weight of Battery	20Kg
12	Charge times	900
13	Duration of Charging	About 5 hours
14	Method of Remote Control	Radio Frequency 433MHz,3.7V 1500mAh
15	Remote Controller		Hand remote control
16	Mode of Control		manual / Automatic Mode
17	Temperature of Warehouse		-18~40ºC(Normal)/ -30~-18ºC(Cryogenic)
18	Programmable Logic Controller		Siemens PLC
19	Voltage of Controller loop		DC 24V
20	Noise in Running		<70db

Feature

1.The engine is purchased from Germany, with brand of Lenze. The power is 550V.
2. The battery is Lithum. it could be working for 8 hours one time.
3. All the detectors are with brand of SICK.
4. The quality warranty is 12 months.

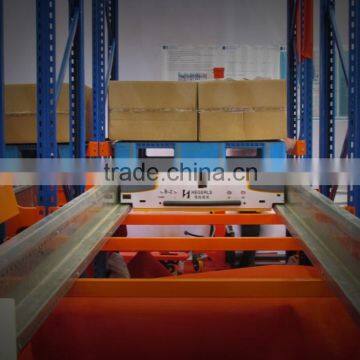

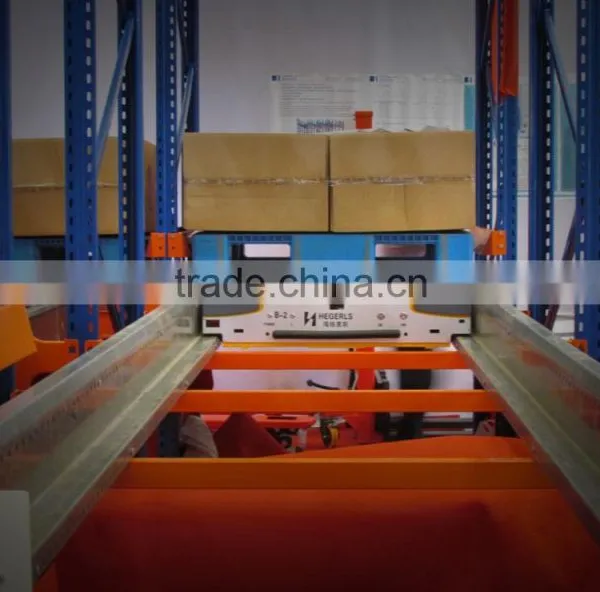

For the racking

Advantage:

* Shorter unload times for pallets.
The Radio Shuttle modules (RSM) retrieve the pallets and bring them
to the aisle entrance so the forklift does not have to enter the lane
* Great for deep lane storage
* Allows the storage of different reference numbers per module and
therefore a higher number of stored references
* Lower risk of accidents
* Reduced reliance on forklifts inside lanes helps prevent rack damage
* By adding more RSMs, the flow of incoming and outgoing goods increases
* Optimizes space by compacting pallets with different widths inside
the channels
* Height between levels is minimized
* Improve Efficiency: Radio Shuttle brings the pallets to the entrance
so the forklift doe not have to enter lanes
* Increase Storage: Permits storage of different reference numbers per module
* Redcues Accidents
* Eliminate Lane Damage: Prevent the risk of rack damage since forklifts are
no longer needed ton enter the racking unit.
* Maximize Productivity: Simply by adding more carts, the flow of incoming
and outgoing goods increases.
*Highly Compatible: Optimizes space by compacting pallets with different
widths inside the lanes.

Certification:

SGS Certification

ISO 9001

Company information:
We Hebei Woke Metal Products Co., Ltd was founded in 1996, As a large scale metal products processing enterprise, specialized in manufacturing store shelves&racks, and supplying related facilities, within one set of R&D, design, producing, sales and service, our brand, HEGERLS,is known as shelf expert, China Top Brand, receiving National Inspection free Product honorary title.
We have been supplying facilities for SINOPEC, Petro China, GM, Lenovo, Coco cola,Nestle,etc.

Packing terms:

standard packing: carton, films,

Shipping:

full container by 20' fcl or 40'ft or 40' HQ
less than container LCL

Payment terms:

TT, L/C or negotiated

Our Services:
1, OEM service is available.
2, Customized sizes and specifications are welcomed.
3, Free rack layout design for your warehouse.
4, We are supplying all the related facilities, as pallets, hand truck,storage cage,etc.
5, Assemble instructions support.
6, At least one year warranty with free exchange if has any quality issues.

For Details Quotation:
Please offer us the following information in details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size L*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
