Auotmated Radio Shuttle Rack System

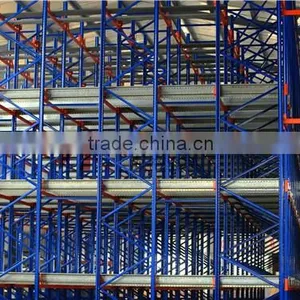

Auotmated Radio Shuttle Rack System thumbnail-1

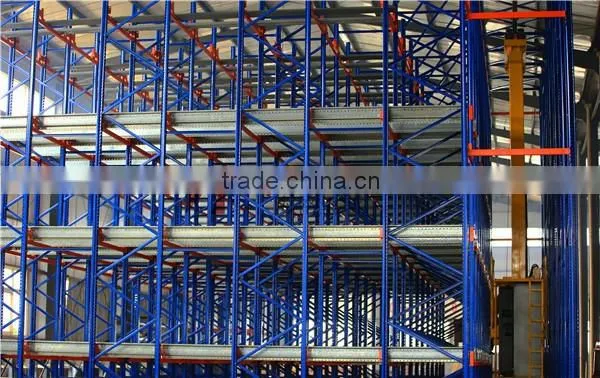

Auotmated Radio Shuttle Rack System photo-1
US$ 50 - 300 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HEGERLS
Model Number:
HGLS-S01
Contact Supplier Request Quote Chat Now
Hebei Woke Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HEGERLS
Model Number HGLS-S01
Type Other, Shuttle Rack
Scale Heavy Duty
Capacity 500-1500kg

Auotmated Radio Shuttle Rack System

Production Description

For the shuttle
Auotmated Radio Shuttle Rack System

Radio Shuttle / Radio Guide Vechile  Model
Item parameter RGV-500 RGV-1000 RGV-1500
1 Suitable Pallets :
1.1 Standard Pallet: L x W mm W1200 X D1000mm
1.2 Size Range Available :L x W mm W1100 ~1250, D800 ~1100mm
1.3  Styles of Pallet Bottom "" or""
1.4 Material of Pallet Wood,Plastics,Steel
1.5  Deflection of Pallet Max 20mm
2 Total Weight of Loading Max  500Kg Max  1000Kg Max  1500Kg
3 Model of Running In the rails
4 Data of Running:
4.1 no load Running 1.1m/s
4.2 full load Running 0.9 m/s 0.7 m/s 0.5 m/s
5 lift parameter
5.1 Time of Single Lift 2s 2.3s 2.5s
5.2  height of Lift 40mm
5.3 space between pallet and rail 13mm
6  specification of RSC:
6.1 Outside Dimensions  L x W x Hmm L1100xW977x 198mm
6.2 Weight of RSC 242Kg 268Kg 300Kg
6.3  Plate Size of Equipment L1030xW185xT3.5mm,2Pcs
6.4 Inner Width of  Fork 230mm
6.5  Width of Single Fork 236mm
7  Driver Motor for movement Lenze  24V 370W
8 Wheels of Running φ120mm Vulkollan
9 Driver Motor for Lifting Lenze  24V 370W
10 Battery  Capacity 24V 60AH
11 Weight of Battery 20Kg
12 Charge times 900
13 Duration of Charging About 5 hours
14 Method of Remote Control Radio Frequency 433MHz,3.7V 1500mAh
15  Remote Controller Hand remote control
16  Mode of Control manual / Automatic Mode
17 Temperature of Warehouse -18~40ºC(Normal)/ -30~-18ºC(Cryogenic)
18 Programmable Logic Controller Siemens PLC
19 Voltage of Controller loop DC 24V
20 Noise in Running <70db
Feature 1.The engine is purchased from Germany, with brand of Lenze. The power is 550V.
2. The battery is Lithum. it could be working for 8 hours one time.
3. All the detectors are with brand of SICK.
4. The quality warranty is 12 months.





For the racking

Auotmated Radio Shuttle Rack System

Advantage: * Shorter unload times for pallets.
  The Radio Shuttle modules (RSM) retrieve the pallets and bring them
  to the aisle entrance so the forklift does not have to enter the lane
* Great for deep lane storage
* Allows the storage of different reference numbers per module and
  therefore a higher number of stored references
* Lower risk of accidents
* Reduced reliance on forklifts inside lanes helps prevent rack damage
* By adding more RSMs, the flow of incoming and outgoing goods increases
* Optimizes space by compacting pallets with different widths inside
  the channels
* Height between levels is minimized
* Improve Efficiency: Radio Shuttle brings the pallets to the entrance
  so the forklift doe not have to enter lanes
* Increase Storage: Permits storage of different reference numbers per module
* Redcues Accidents
* Eliminate Lane Damage: Prevent the risk of rack damage since forklifts are
  no longer needed ton enter the racking unit.
* Maximize Productivity: Simply by adding more carts, the flow of incoming
 and outgoing goods increases.
*Highly Compatible: Optimizes space by compacting pallets with different
  widths inside the lanes.


Certification:

SGS Certification  ISO 9001

 Auotmated Radio Shuttle Rack System


Company information:
We Hebei Woke Metal Products Co., Ltd was founded in 1996, As a large scale metal products processing enterprise, specialized in manufacturing store shelves&racks, and supplying related facilities, within one set of R&D, design, producing, sales and service, our brand, HEGERLS,is known as shelf expert, China Top Brand, receiving National Inspection free Product honorary title.
We have been supplying facilities for SINOPEC, Petro China, GM, Lenovo, Coco cola,Nestle,etc.
 Auotmated Radio Shuttle Rack System
Packing terms:

standard packing: carton, films,

Auotmated Radio Shuttle Rack System
Shipping:

full container by 20' fcl or 40'ft or 40' HQ
less than container LCL


Payment terms:

TT, L/C or negotiated


Our Services:
1, OEM service is available.
2, Customized sizes and specifications are welcomed.
3, Free rack layout design for your warehouse.
4, We are supplying all the related facilities, as pallets, hand truck,storage cage,etc.
5, Assemble instructions support.
6, At least one year warranty with free exchange if has any quality issues.

For Details Quotation:
Please offer us the following information in details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size L*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
