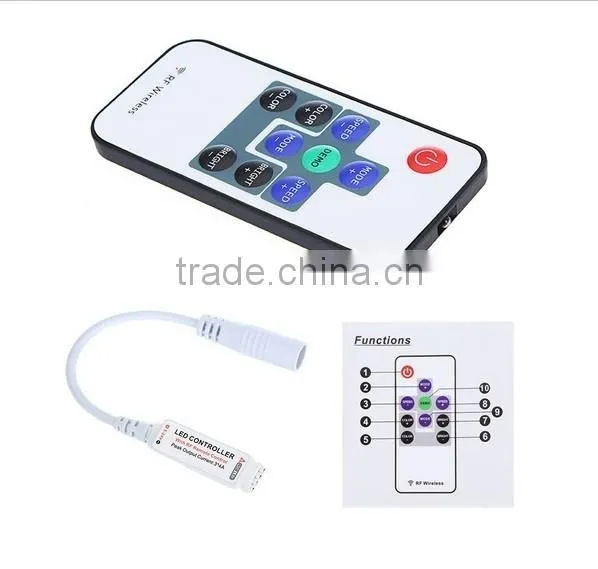

DC12V/24V RGB Remote Control LED Controller
Technical Parameters:
Working temperature:-20-60℃
Input voltage:DC5-24V
Output:3 circuit
Connection mode:Common anode
controller size:L40.0×W12.0×H5mm
controller size:L85.9×W39.6×H6.9mm
RF frequency:433.92Mhz
Net weight:35g
Gross weight:40g
Static power consumption:<0.5W
Output current:<2A*3CH(each circuit)
Output power: 5V:<30W, 12V:<72W

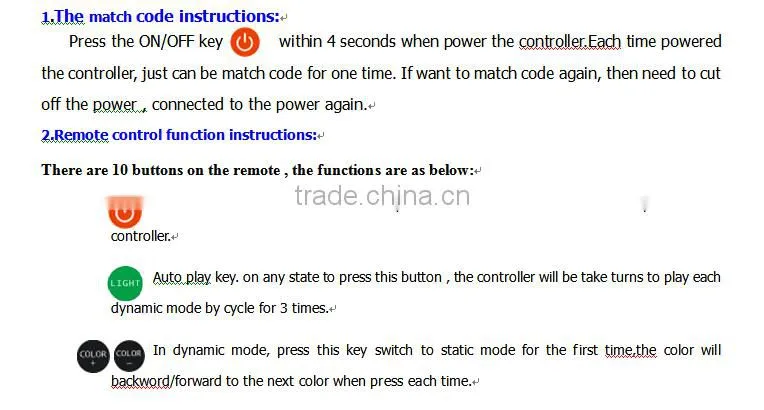

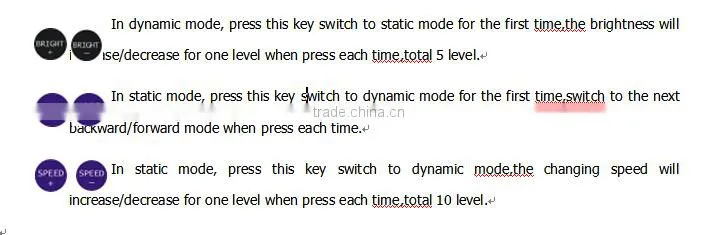

How to use:
3,This controller's sequence is +RGB order,in case of other sequence(+BRG/+GRB) will appear in the other effect. Based on sequence of + RGB, pattern are as follows:
|
Dynamic model |
NO. |
Mode |
NO. |
Mode |
NO. |
Mode |
1 |
7 color fade |
8 |
Purple fade in and fade out |
15 |
Blue blasting flash |
|
2 |
3 color fade in and fade out |
9 |
Blue fade in and fade out |
16 |
Purple blasting flash |
|
3 |
7 color fade in and fade out |
10 |
3 Color Jump |
17 |
Yellow blasting flash |
|
4 |
White fade in and fade out |
11 |
6 color Jump |
18 |
White blasting flash |
|
5 |
Green fade in and fade out |
12 |
3 color flash |
19 |
3 color blasting flash |
|
6 |
Yellow fade in and fade out |
13 |
Red blasting flash |
|
|
|
7 |
Red fade in and fade out |
14 |
Green blasting flash |
|
|
|
|
Static mode |
NO. |
Mode |
NO. |
Mode |
NO. |
Mode |
1 |
Red |
8 |
Milk-white |
15 |
Blue-purple |
|
2 |
Green |
9 |
Dark yellow |
16 |
Yellow-white |
|
3 |
Blue |
10 |
Sky blue |
17 |
yellow |
|
4 |
White |
11 |
Brown |
18 |
cyan |
|
5 |
Orange |
12 |
Pink-white |
19 |
purple |
|
6 |
Light green |
13 |
Light-yellow |
20 |
Blue-white |
|
7 |
Dark blue |
14 |
Light blue |
|
|
Product Size:
