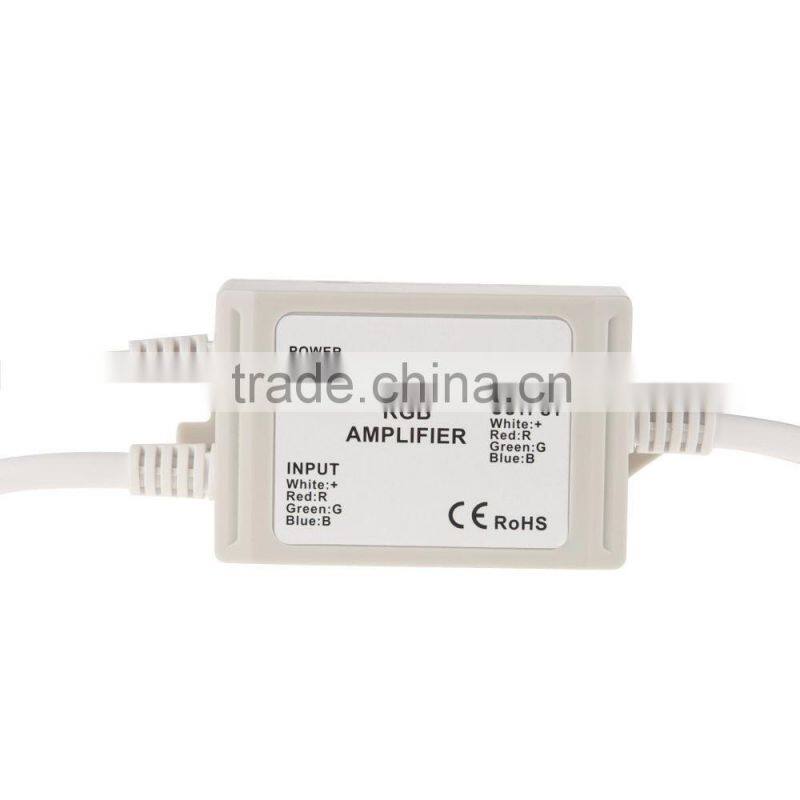

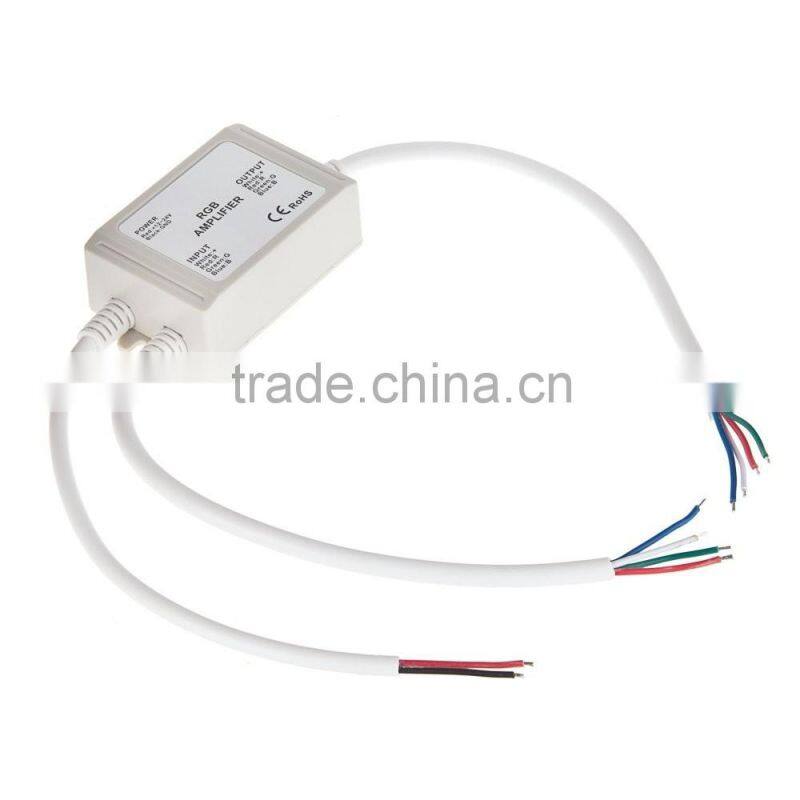

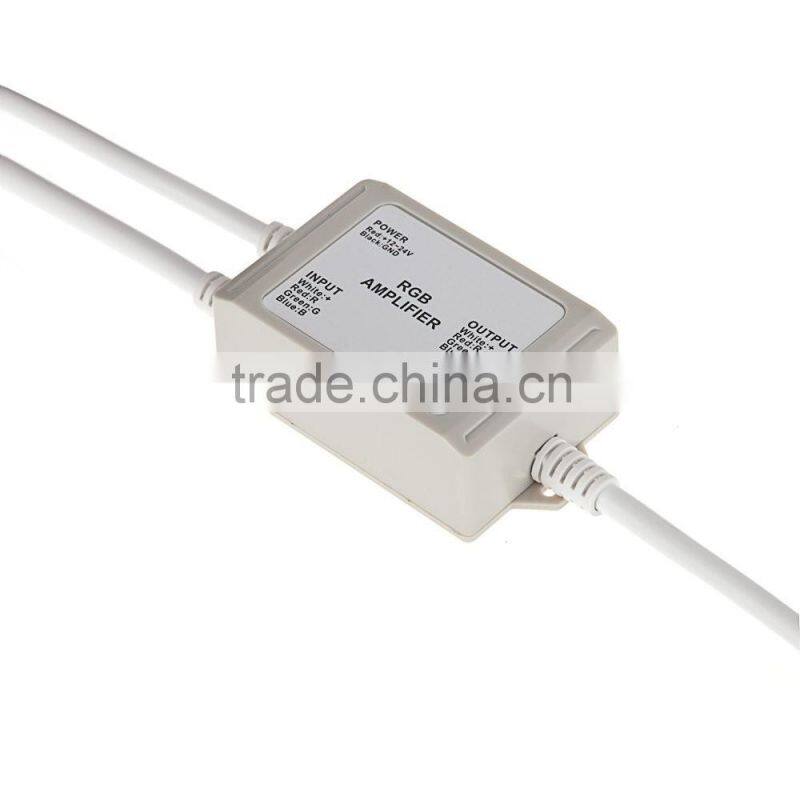

DC12~24V RGB Waterproof Amplifier 3CH Output 4A/CH for LED Strip Lights

FOB Price

USD $5 - $6 / Piece

5 Pieces(Min.Order)

Product Details

Place of Origin:	Guangdong, China	Brand Name:	ryker	Model Number:	RL-AMP-RGB-IP67
Type:	Other, RGB Amplifier	Max. Load Power:	12V/144W	Voltage:	Other, DC12V-DC24V, DC12V-DC24V

DC12~24V RGB Waterproof Amplifier 3CH Output 4A/CH for LED Strip Lights

Product Description

Technical Parameters:

Working temperature:-20-60℃

Input voltage:DC12~24V

Output:3 circuit

Connection mode:Common anode

Product’s size:L105×W65×H23mm

Package size:L115×W70×H35mm

Net weight:110g

Gross weight:125g

Static power consumption:<1W

Output current:<4A/CH (8A/ch For optional)

Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W

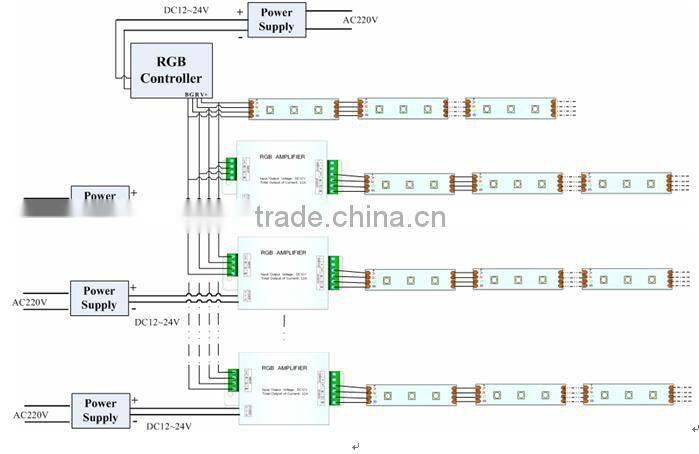

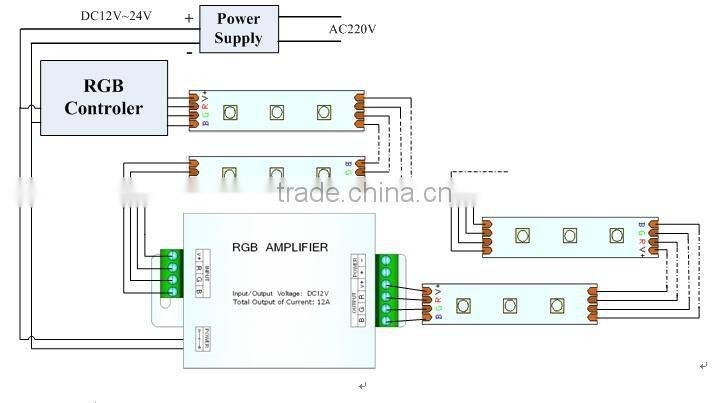

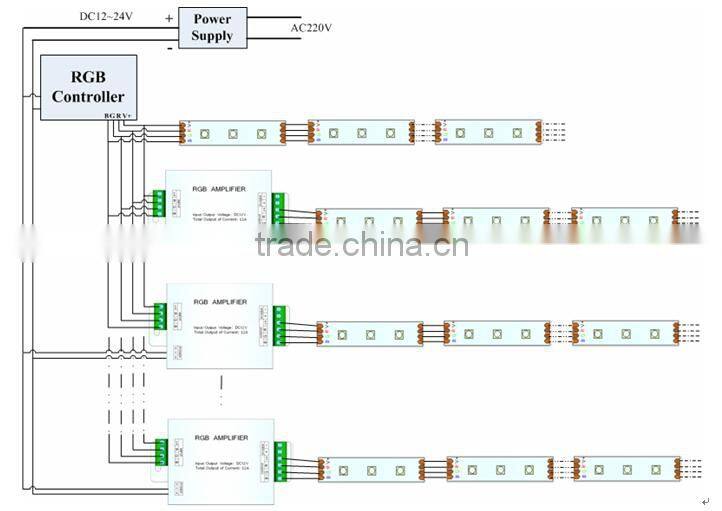

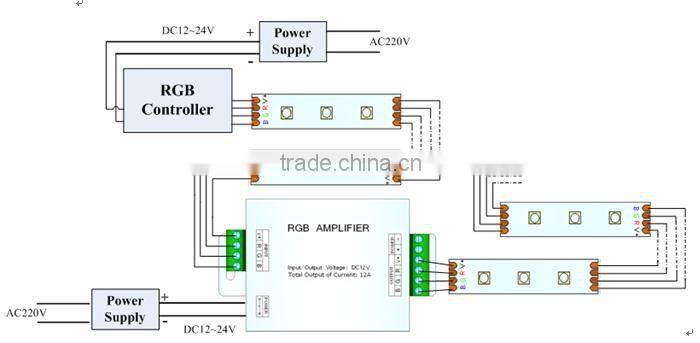

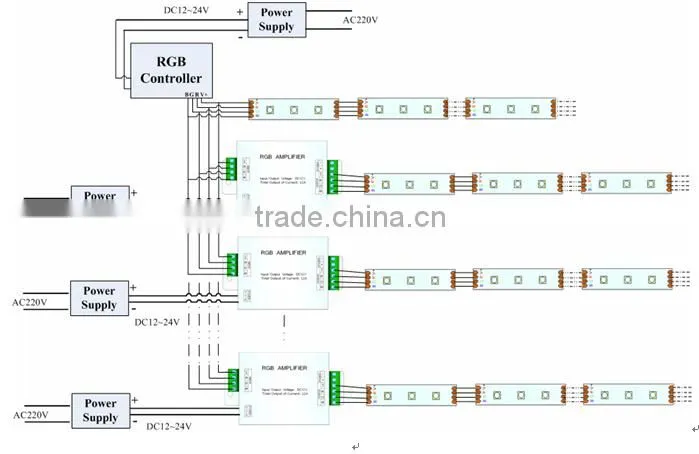

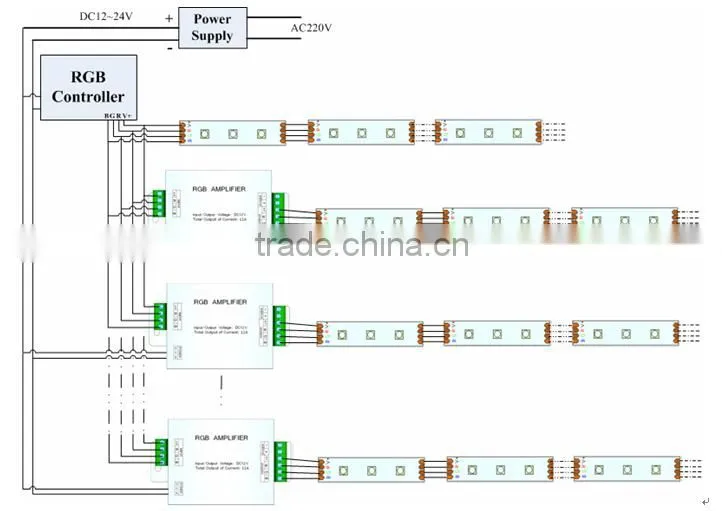

Application
