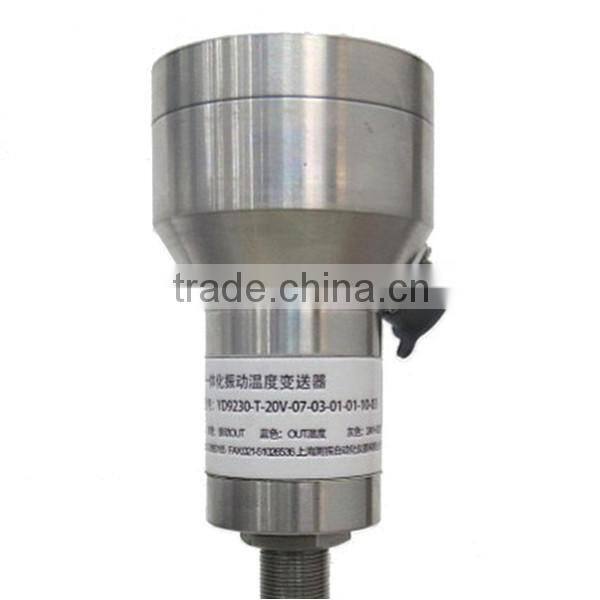

YD9230 vibration temperature sensor 4-20ma
1.Brief Introduction:
YD9230 integrated vibration temperature transmitter is collected by PT100 platinum resistance temperature.
Output 4-20mA current signal, vibration acquisition by magnetic sensors. Using imported detectors,with
high anti-interference ability. Output 4-20mA current signal, stable and reliable. Shell is made of 316
stainless steel materials, corrosion resistance.
Integrated vibration temperature transmitter using independent signal of vibration and temperature output
circuit .The circuit and the signal is independent of each other. Various parameters have been strictly
calibrated at the factory, the user does not need a secondary calibration.
2.Technical Specifications:
2.1 Vibration Range: 0 ~ 100mm / s (Speed)
0-1000um (Displacement)
2.2 Temperature Range: -50 °C ~ 150 °C
2.3 Current output : 4~20 mA (Vibration Speed or Vibration Displacement )
4~20 mA (Temperature )
2.4 Output Impedance :<500Ω
2.5 Accuracy:±1%
2.6 Power Supply: DC24V
2.7 Working temperature : -30~70°C

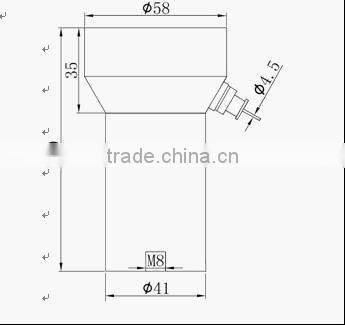

3.Transmitter Dimensions
4.Type Selection
YD9230-A00(V/D)-B00-C00-D00-E00-F00-G00
A.Installation Direction
01:Vertical 02:Horizontal 03:Universal
B.Vibration measuring range ( Choose “V”or “D” )
V:Speed (mm/s)
01 0--10mm/s 02 0--20mm/s 03 0--30mm/s ......
D:Displacement (μm)
01 0-100um 02 0-200um 03 0-300um ......
C.Mounting thread
01 M10*1.5 02 M10*1 03 M8*0.75 04: Customized
D.Cable Length
01: 1m 02: 2m 03: 3m 04: 4m ......
E.Temperature down rod insertion depth
01: 10mm 02: 20mm 03 : 30mm ...... 10: 100mm
F. Lead way:
00(K):Directly lead. “K” means armored
01: Aviation plug
G.Temperature Range :
01: 0-100°C 02: 0--150°C 03: -50°C~150°C 04 : -50°C~100°C
