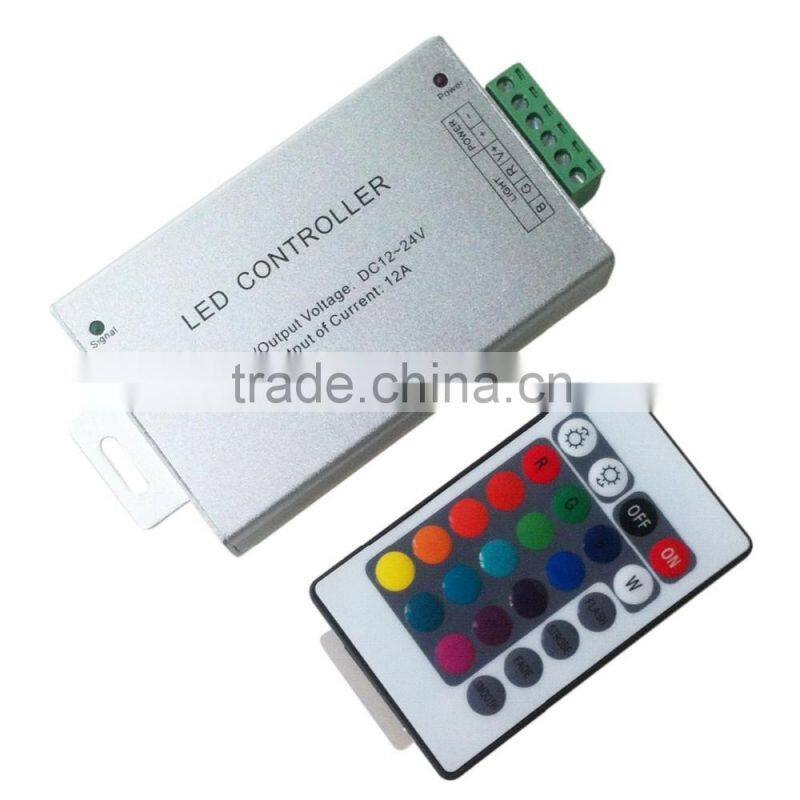

DC12V 144W IR 24 Key RGB LED Controller Aluminum
US$ 3.3 - 3.8
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Ryker
Model Number:
RL-IR-24-AL
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V 12A 144W 44 Key Remote LED Aluminum Controller for RGB SMD LED Strip LightUS$ 4 - 4.5MOQ: 5 Pieces -
44 Key RGB IR ControllerUS$ 2 - 2.5MOQ: 5 Pieces
-
Ryker Wholesale Led 10-key Rgb ir Led Strip ControllerUS$ 2.5 - 3MOQ: 5 Pieces
-
RGB LED DMX Decoder/RGB DMX512 LED Decoder Controller/RGB DMX DecoderUS$ 11 - 12MOQ: 5 Pieces
-
Waterproof RGB LED Amplifier Data Repeater, 12-24V DC, 4A*3CHUS$ 5 - 6MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Ryker
Model Number
RL-IR-24-AL
Type
Remote Control
Max. Load Power
DC12V/144W
Voltage
Other, DC12V-DC24V
DC12V 144W IR 24 Key RGB LED Controller Aluminum
Technical Parameters
Working temperature |
-20-60℃ |
Supply voltage |
12V~24V optional |
0utput |
3 channels |
Connecting mode |
common anode |

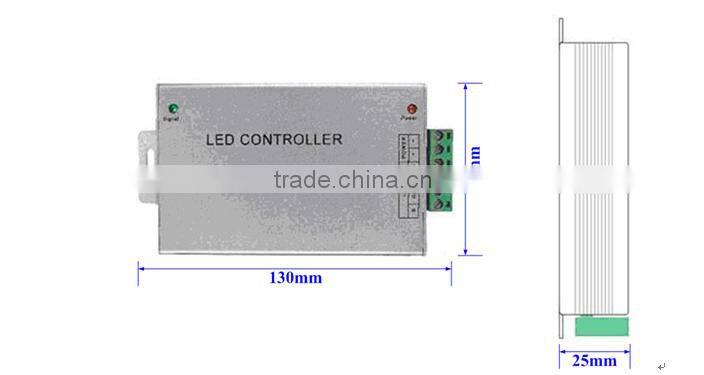

External dimension |
L130*W64*H24 mm |
Packing size |
L137*W80*H54mm |
Net weight |
185g |
Gross weight |
215g |
Static power consumption |
<1W |
Output current |
<4A or 8A each channel Optional |
Output power |
12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W |
Function:
Product Size:
Application:
