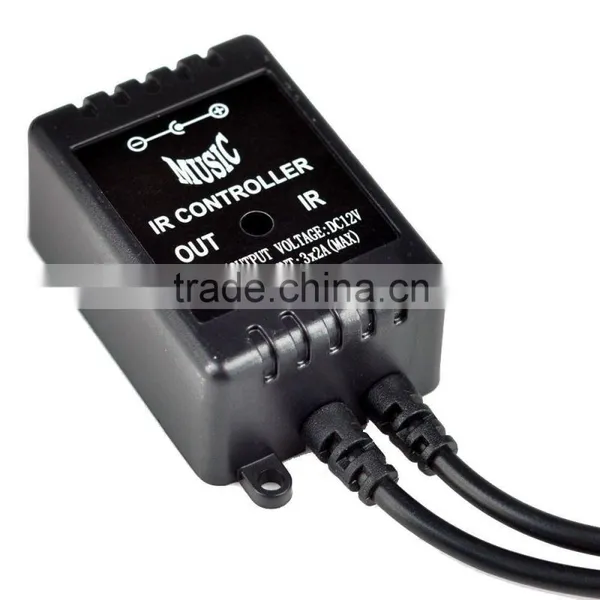

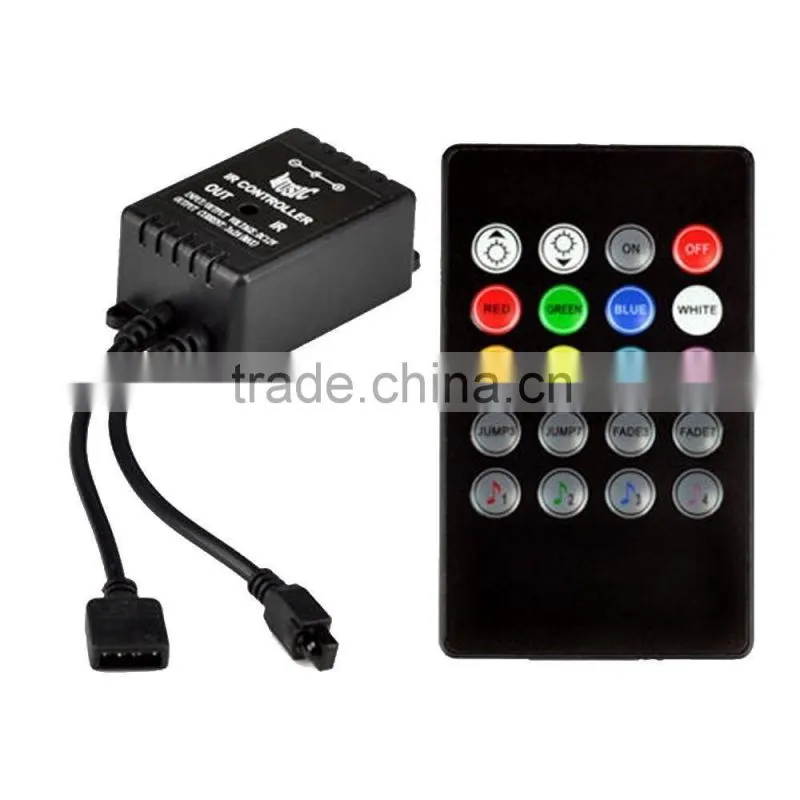

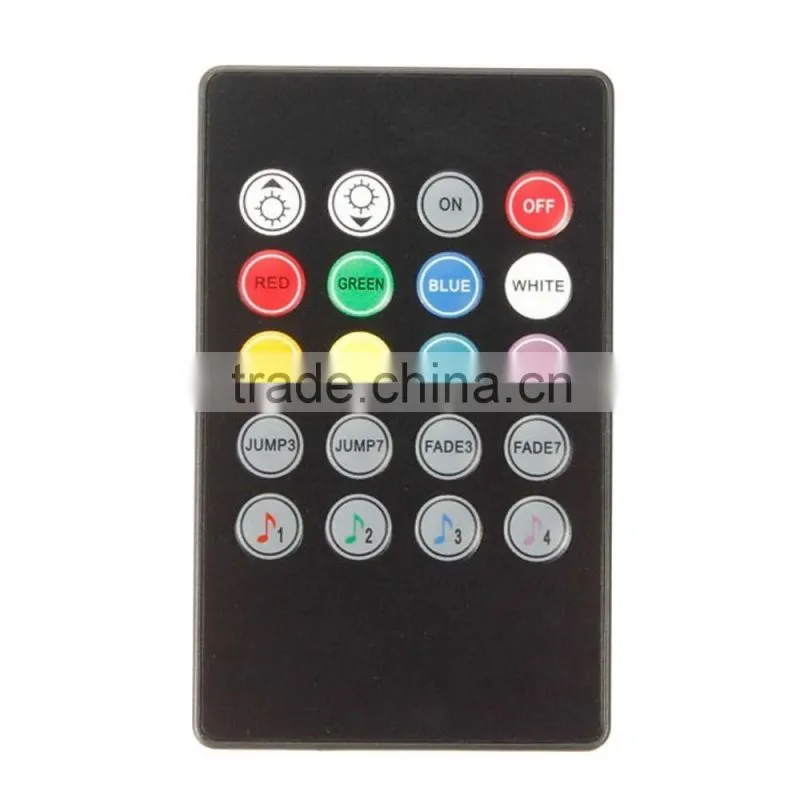

Infrared Music Controller 20 keys IR Remote Controller Sound Sensor Controller
Technical Parameters
Working temperature:-20-60℃
Supply voltage:DC5V/12V,12~24V (both of voltage are available for choice)
Output:Three CMOS drain open circuit output

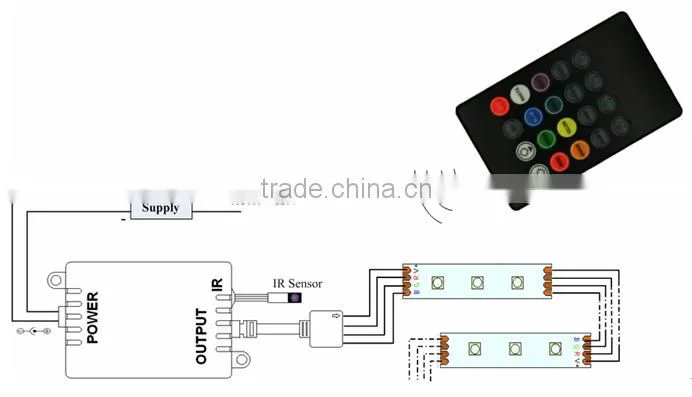

Connection mode:Common anode
Controller size:L63×W35×H22mm
Remoter size:L84×W51×H7mm
Net weight:50g
Gross weight:66g
Static power consumption:<1W
Output current:<2A(each circle)
Output power:5V<30W, 12V<72W, 24V<144W

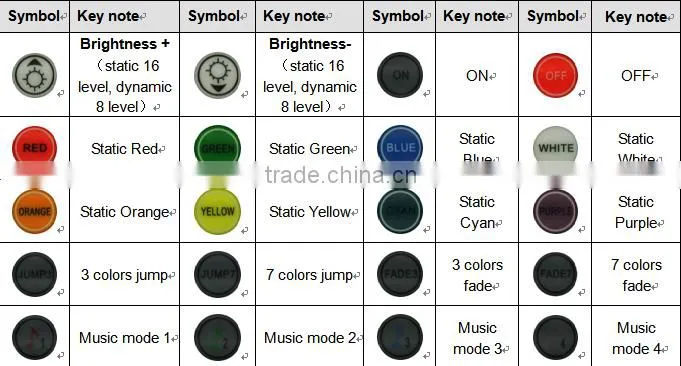

Controller function:
Music mode supplemental instruction :
1)Sound-control mode 1(general music):all colors will gradual or jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will gradual change.
2)Sound-control mode 2(tenderness music):all colors will slow breathing or jump change following the music/sound rhythm. If no music/sound input or sensed, all colors will slow breathing change
3)Sound-control mode 3(active music):all colors will jump change following the music/sound rhythm. If no music/sound input or sensed, current colors keep lighting.
Sound-control mode 4(DJ music):all colors will strobe change following the music/sound rhythm. If no music/sound input or sensed, all colors off.
Application:
