WS2811 TM2801 Digital LED Strip Controller

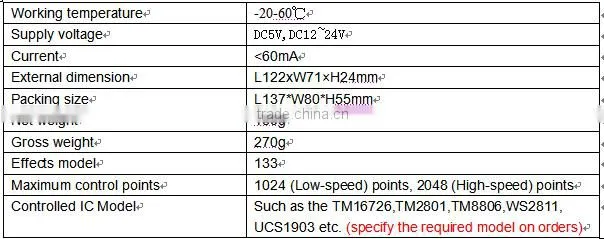

Technical Parameters:

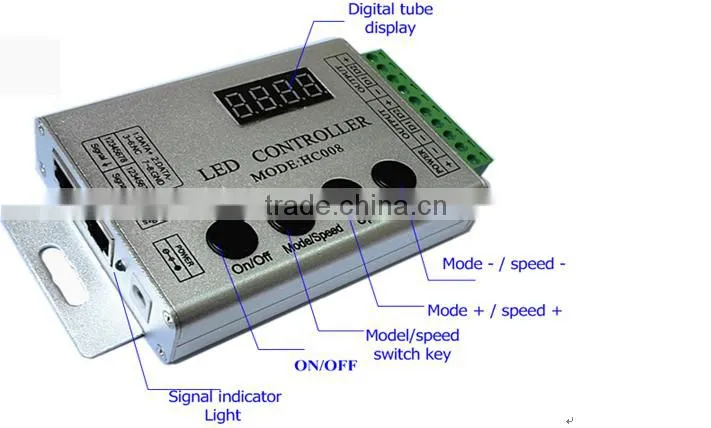

How to use:
On/off:It can turn on or turn off the output..
Mode/Speed :Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP:Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
DOWN:Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Remarks:When power the controller, the red indicator light will be light up, and the green indicator light will be flash when press the button each time.

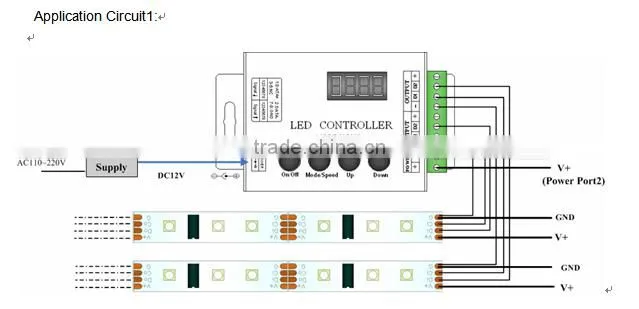

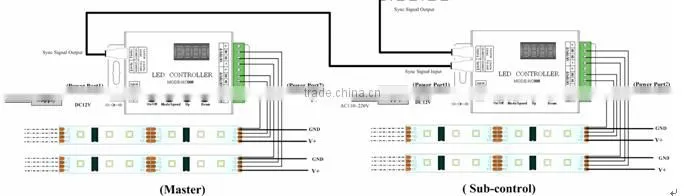

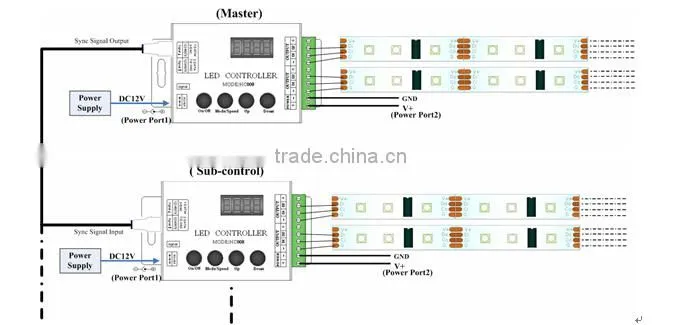

Application:
