CZ9600 Seismic Indicating Vibration Transmitter
Overview:
CZ9600 seismic indicating vibration transmitter is a velocity vibration transmitter come with 3 digit LCD indicator for local vibration readout. It’s a real vibration monitoring transmitter used for industry, operating temperature reach at -35-+85℃.The transmitter combines a vibration sensor and signal conditioner in a single enclosure. It provides the ideal solution for rotating machinery vibration level and transmit a 4-20mA signal directly to a PLC, DCS, monitor, or other 4-20mA signal input devices, and the alarm could be programmed on the instruments. CZ9600 is directly mounted on the machine case or bearing bush.
Features:
3 digital LCD indicator
2-wire non-polarized loop power supply
4-20mA output proportional to the vibration levels
Directly connected to PLC, DCS or other 4-20mA input devices
Different mounting stud available
High & low pass filter available
Wide operating temperature range -40℃~+85℃
Low crossed axis sensitive
Technical Standards:
Frequency response: 4.5HZ-1000HZ (vertical, horizontal) 10HZ --- 1 000HZ (universal, vertical or horizontal)
Range: 0-50mm / s smart adjustable (press the button or adjust HART Communicator)
0-500um smart adjustable (press the button or adjust HART Communicator)
Supply Voltage: DC 12 ~ 36V
Output: two-wire
Overload Current: ≤ 50mA (overheating or short circuit protection)
Load resistance: 500 Ohm
HART features: process variables, analog output, lower limit of analog range, upper limit of analog range, lower limit of sensor range, upper limit of sensor rang, damping analog range etc.
Operating temperature: -40 ~ 85 °C (LCD working limit temperature 85 °C)
Installation: vertical, horizontal, universal
Weight: 350 grams (stainless steel shell optional)
Dimensions: φ58mm × 90mm (LCD)
Optional Project Parameters:
Stainless steel shell
Alarm relay output
485 communication protocol
Real-time storage function
Wireless 2.4G ZIGBEE industrial local area network transmission
Unlimited GPRS network transmission
Output voltage DC 0-5V
Outline dimension drawing of the transmitter:

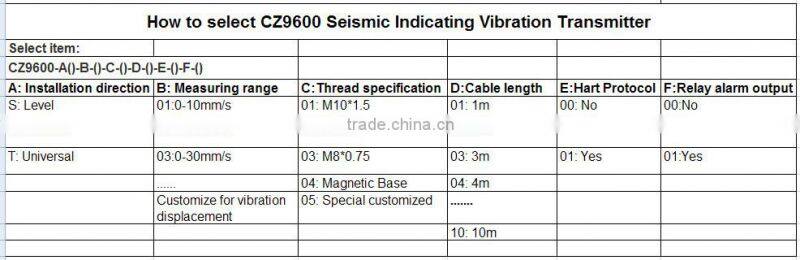

Technology Selection:

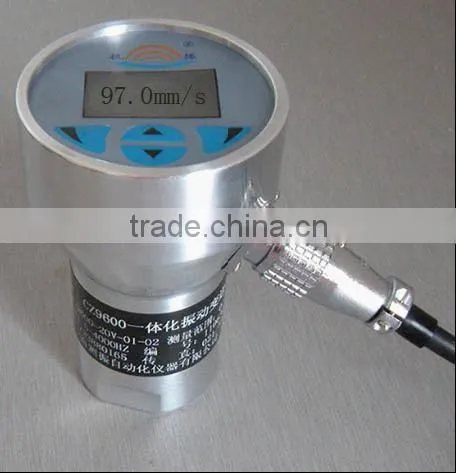

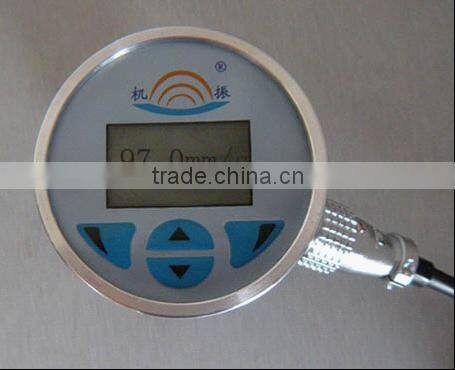

Product picture
