yamaha outboard motor Stepper Motor Gear Motor Model Number: 42 Series Stepper Motor Three Phase
Phase: Three Type Hybrid
Certification: CE ISO
Step Angle(degrees): 1.2°
Holding Torque:8-20 N.cm
Current / Phase: 4.3-6.9 A
Frame size: according to customer
Leads: 4
Shape: Square
Usage: Industrial
Protect Feature: Enclosed
Function: Control
Speed: Low speed
yamaha outboard motor
Item:110 Series
Step Angle Accuracy: 5%
Temperature:80 Degree
Ambient Temperature: -20 degree to 50 degree
Insuiation Resistance: 100
Dielectric Strength: 500V
Shaft Radial Play:0.06 mm Max
Shaft Axial Play: 0.08 mm Max
Step Angle Accuracy: 5%
Temperature Rise: 80
Ambient Temperature: -20 degree to 50 degree
Insulation Resistance:100
Dielectric Strength:500V
Shaft Radial Play: 0.02 M max
Shaft Axial Play: 0.08mm Max
Step Motor: Model: FHB 31112
Step Angle:1.2 Degree
Motor Length: 127-219 mm
Holding Torque: 8-20 N.m
Current: 4.3-6.9 A
Weight: 5-10.7 kg
Shaft Diameter: 19 mm

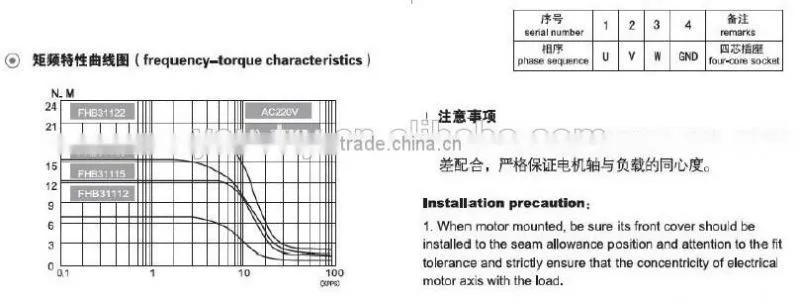

Electric Motor Stepper Motor Installation Precaution:
yamaha outboard motor Packaging Details:Standard Export Packing
Delivery Detail:5~30 days
yamaha outboard motor Stepper Motor Our Superiority:
1) No MOQ limited
2) Keep 2,000pcs Stocks for this standard item.
3) Quickly response in time
4) Good Pre/After Sales Service
5) Also Available for Customized: Crimped Connector, Shaft Machine, Pulley, etc.Short Lead Time for Customized
6) Competitive price and good quality
7) Used for transmission systems.
8) Excellent performance, long using life
9) Can develop according to your drawings or samples
10) Following the customers' requirements or as our usual packing
11) Brand name: ZJWC or we can make according to every customer's requirement.
12) Flexible minimum order quantity
13) Sample can be supplied
For more information about us, contact us right away.
We will do our best to meet your requrement of the product and provide the most perfected after-sales services for you.
We are factories specialized in manufacturing yamaha outboard motor Stepper Motor with nearly 20 years. Our manual production quantity is more than 6000,000,000 sets.
1.Industry and Trade Integration
2.With CE Certifications
3.Abundant experience in the mechanical processing industries.
4.Large quality of various material purchase and stock in warhouse which ensure the low cost for the material and production in time.
5.Strick quality control are applied in the whole production.
6.We have incoming inspection, process inspection and final production inspection which can ensure the perfect of the goods quality.
7.Long time cooperate with the Global Buyer, make us easy to understand the customers and handle the export.
At the moment, 75% of our products are main export to Europe, meanwhile around 20% are exported th American Market, pls kindly contact us if there is any inquiry, we will check and give you a quick response.
Feel free to take a closer look around our pages, and if you have interested in, please enquiry to us your favorite items.
welcome you connect with us or come to our factory to make order with sample for the good develepment of our distribution.
For more information about us yamaha outboard motor , contact us right away.
We will do our best to meet your requrement of the product and provide the most perfected after-sales services for you.
Feel free to take a closer look around our pages, and if you have interested in, please enquiry to us your favorite items.
welcome you connect with us or come to our factory to make order with sample for the good develepment of our distribution.
