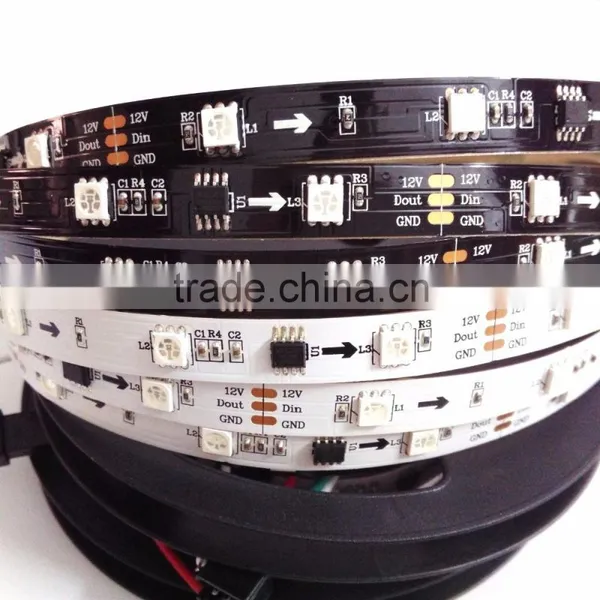

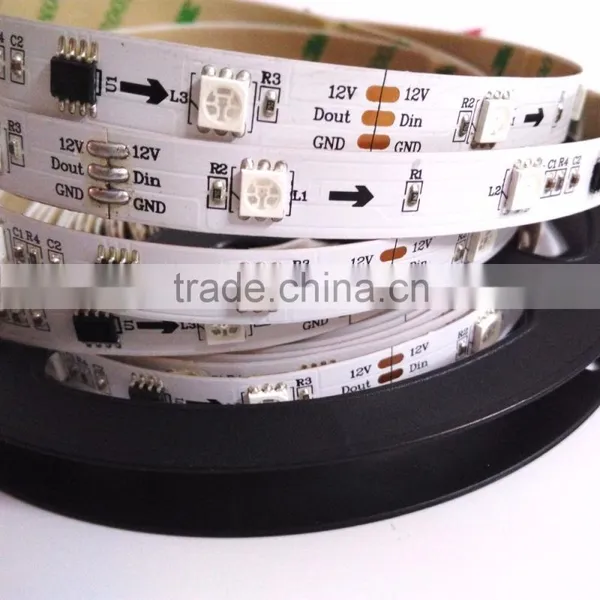

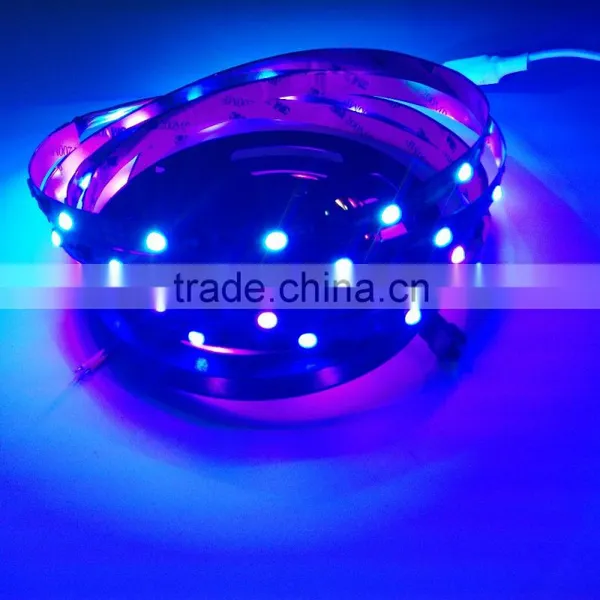

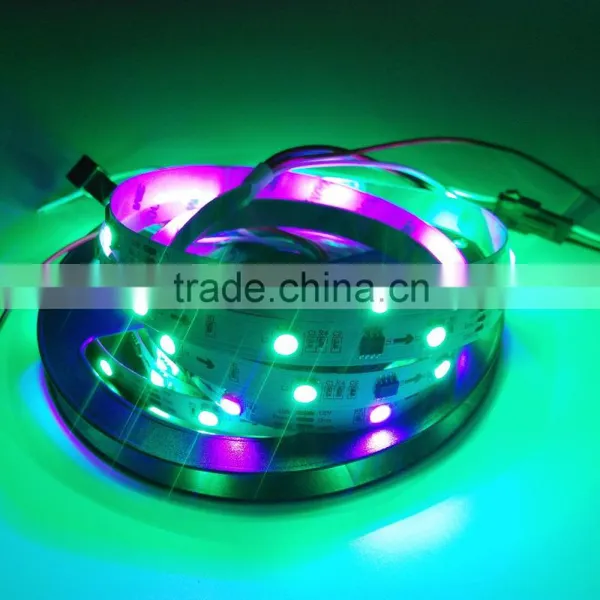

12V WS2811 30leds/m 5050SMD Digital RGB Dream Color Pixel LED Strip 10mm Black/White PCB 30led/m WS2811 Led Strip 10 IC
WS2811 Strip Description:
1) WS2811 Strip is powered by a 12V power supply (not included) and is controlled by a single data line from a suitable controller (not included).
2) 3-pin JST connector included: Red:VCC, Blue:GND, Green:DATA.

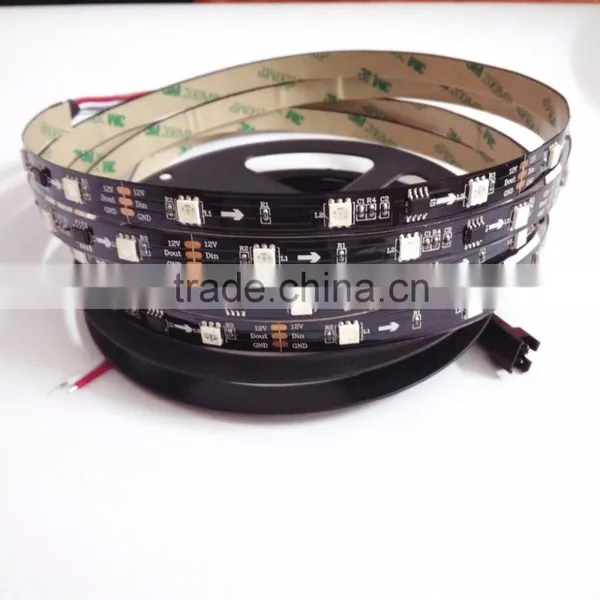

3) The strip has 3M adhesive tape on the back. Installation surface must be smooth, clean and dry.
4) Strip can be cut between every three LEDs to create custom lengths.
5) Do not bend strip sharply. Do not exceed 5 meters in a single circuit. Longer runs should be powered from both ends to reduce voltage drop.
Specification for WS2811 LED Strip:
Strip Voltage: DC 12V
Emitting Color: RGB Multicolor
Viewing Angle: 120°
Number Of LEDs: 30PCS/m
Number of ICs: 10PCS/m
LED Type: 5050 SMD
Waterproof Rating: IP30(Non-waterproof)
Every three LEDs cuttable without damaging the rest strips, according to your requirement.
WS2811 Strips Products Application:
WS2811 dream color strips can be used for hotel, KTV, bar, game room,entertainment decoration to heighten the atmosphere, car decoration, shop decoration, home decoration and other decoration.
