Specifications
1,Imported Starfire control software2,Panasonic servo motor
3,Imported Cutmaster welder
4,Arc pressure adjuster
5,CE

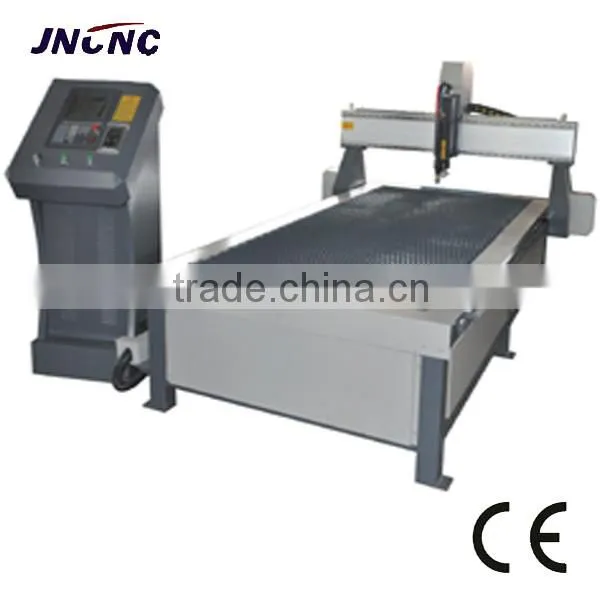

120A cutmaster cnc metal plasma cutting machine
1,Brief introduction:
It is mainly used in steel construction, steel tower, plates, construction machine, boats and ships
manufacturing industry.

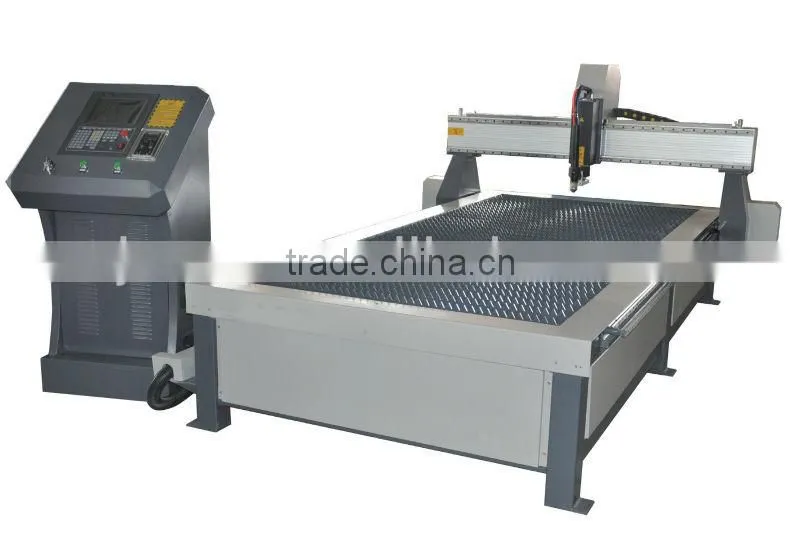

2,Picture of metal plasma cutting machine:
3,Technical parameters:
| Model name | metal plasma cutting machine |
| Working area | 1300x2500mm(1500x3000mm) |
| Plasma power | 60-200A |
| Cutting thickness | 0-30mm(carbon steel) |
| Cutting speed | 0-8000mm/min |
| Moving speed | 0-50000mm/min |
| Control system | Starfire |
| Driver | Panasonic servo motor |
| Welder | Cutmaster(imported from USA) |
| Arc | Untouched Arc Striking |
| Files transfer | USB interface |
| Processing materials | Iron, Carbon steel, Staniless steel, Aluminium sheets, etc |
| Machine power | 8.5kw-10kw |

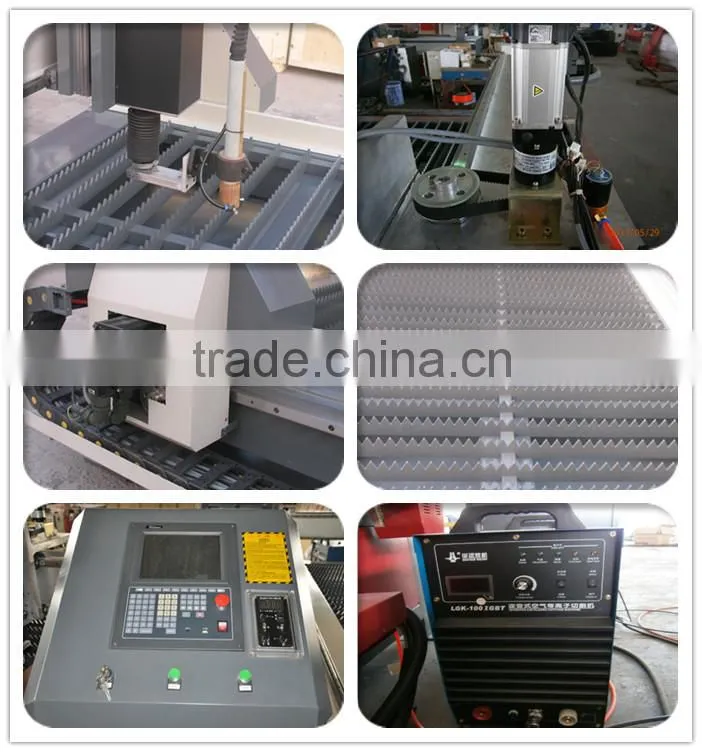

4,Main parts picture of metal plasma cutting machine:
5,Application fields:
1,This machine is mainly used in the cutting of thick metal plates, such as steel plates, copper plates,
iron plates, the aluminum plates, galvanized plates, titanium plates and other metal plates.
2, Widely used in Engineering Machinery, Shipbuilding Industry, Mining Machinery, Thick Metal Contour
Cutting, Rivet Welding Industry.

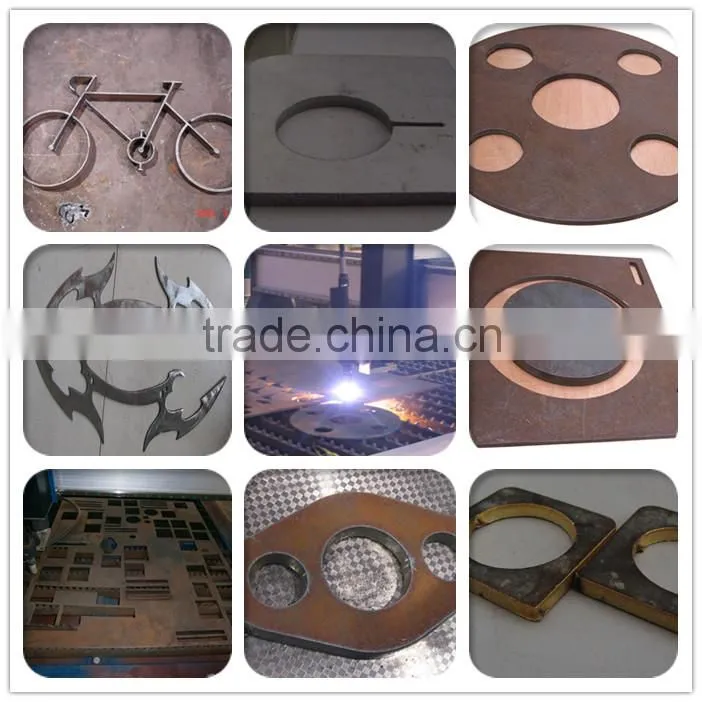

6,Sample pictures of metal plasma cutting machine:
7,Features:
1,Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission.
Lower noises, stable and accurate coordinate movement.
2,Starfire control system made in Sino-US joint venture and Germany design software FastCAM with
auto material saving function.
3,American Cut-Master plasma power supply (120A/200A) together with high sensitive arc pressure
adjuster. Self-adjusting to choose the best distance between plasma gun and working piece
automatically in order to ensure cutting accuracy.

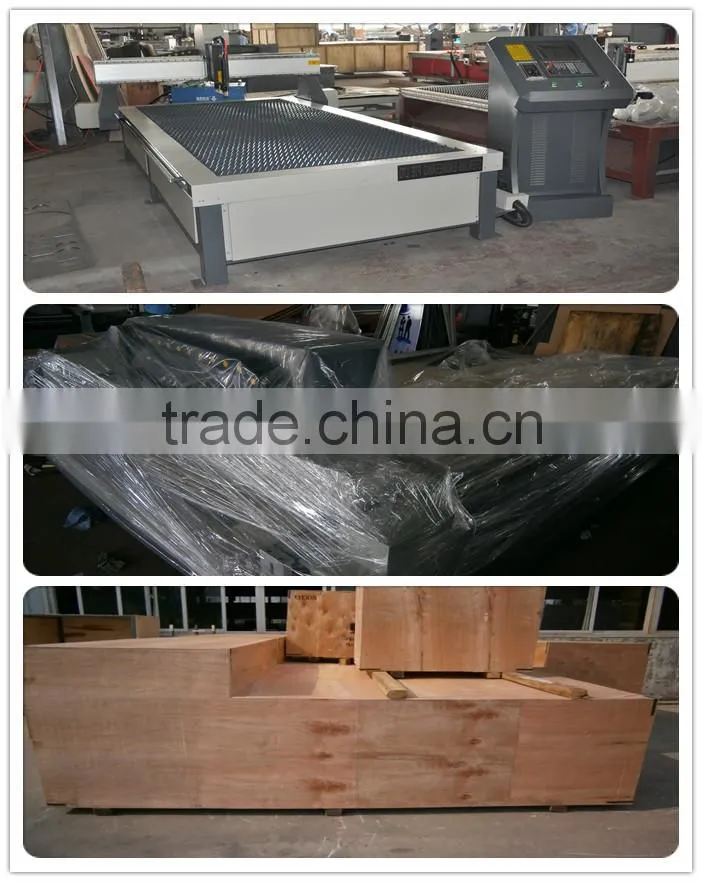

8,Packing pictures of metal plasma cutting machine:
9,Exhibition show:
10. Warranty and After Sales Service:
1)One year free warranty, main parts are free of charge when problems happened during the warranty period.
2) Life time free maintenance service.
3)Free training course at our factory with professional engineers.
4)We provide the consumable parts at agent price when you need replacement
5)24 hours online service each day, free technical support with different languages.
6) We provide door to door technical support to agents, if necessary
