Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Thick Metals China Plasma Cutting Plotter

Thick Metals China Plasma Cutting Plotter

Name: Thick Metals China Plasma Cutting Plotter
Brand: JNCNC
SKU: 101819519

Thick Metals China Plasma Cutting Plotter thumbnail-1

Thick Metals China Plasma Cutting Plotter photo-1

US$ 2,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

JNCNC

Contact Supplier Request Quote Chat Now

Jinan CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name JNCNC

Model Number china plasma cutting plotter

Voltage AC380/220V 50-60HZ

Certification CE/FDA

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Metal material cutting
2.Cutting thickness:5-300mm
3.Auto-ignition system
4.Flame lighter off automatically
5.CE/FDA

Thick Metals China Plasma Cutting Plotter

1.Brief Introduction:

CNC Flame plasma cutting machine is a high efficiency and energy saving equipment which suits the precision cutting of any thickness of mild steel , stainless steel , and non-ferrous metal sheet .

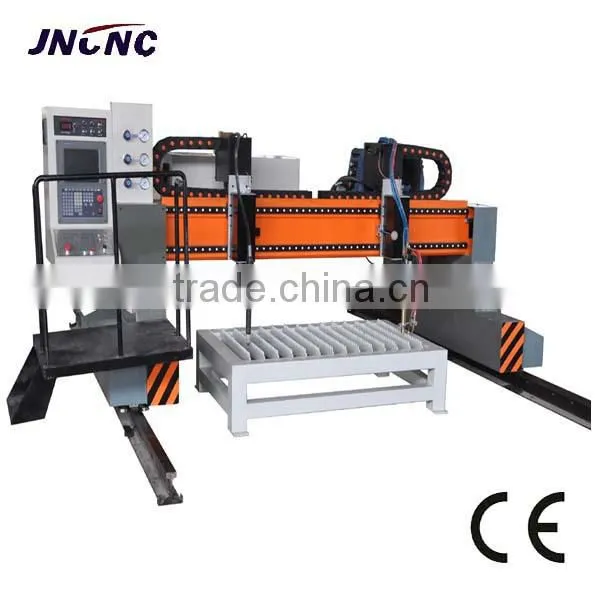

2.Picture of China Plasma Cutting Plotter:

3.Technical Parameters:

Parameters	2500mm	3000mm	3500mm	4000mm	5000mm	6000mm	7000mm	8000mm
Drive mode	Dual Sides Drive
Cutting width	1800mm	2300mm	2800mm	3300mm	4300mm	5300mm	6300mm	7300mm
Track length(L)	10m or as customer's requirement
Moving Speed	Dual-side drive:12000mm/min
Cutting speed	Flame cutting speed:50-800mm/min
Cutting thickness	Mild steel:1-120mm
Torch Carriages	1-6 Group(according to customer's requirement)
Cutting torch lifting travel	200mm,(optional)300mm
Cutting height	(optional) Automatic torch height control
Control system	Starfire sh-2200
Required voltage	Three phase 380V,50HZ,Single phase(control system)220V,50-60HZ
Cutting Length	2m less than track length

4.Features:

1. CNC series digital cutting machine is a kind of newly researched and developed efficient automatic cutting equipment for steel plate to support processing of metallic parts based on absorbing domestic and overseas advanced software and hardware technology.

2. It can perform vertical and horizontal cutting and cutting on any position of arc curve, which is featured with high cutting surface precision and small deformation.

3. The equipment is featured with appropriate structure, easy operation, and advanced technology etc.

4. CNC flame cutting is a traditional thermal cutting method, which is applicable to cut the carbon steel plate with good quality and the cutting thickness is 6-150mm.

5. CNC plasma cutting machine is applicable to cut stainless steel and nonferrous steel with quick speed, good cutting surface roughness, high precision and small deformation.

6. It is a best choice to get the higher quality of cutting metal material.

7. CNC cutting machine is widely applicable to the automobile, shipbuilding petrochemical industry, boilers, pressure vessels, construction machinery, light industrial machinery and other industries.

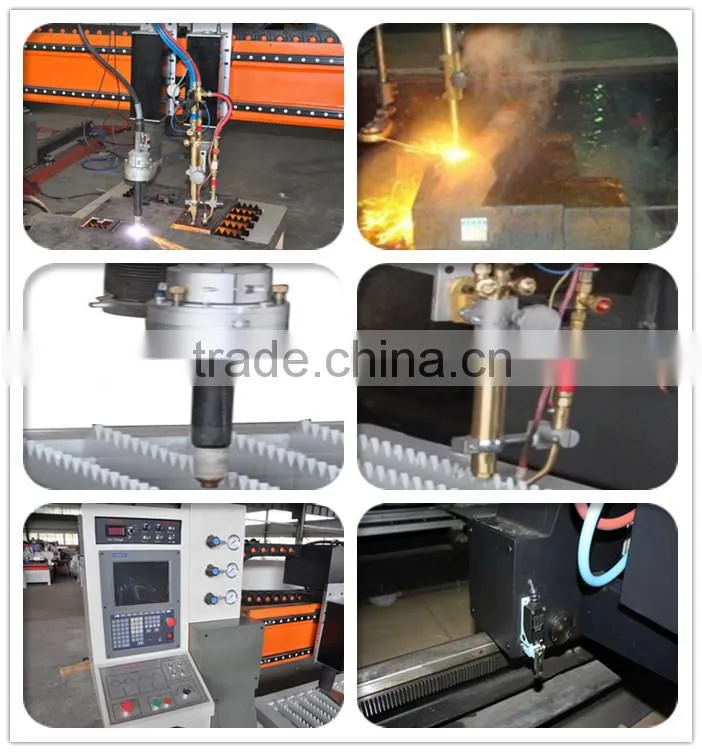

5.Main Parts Picture:

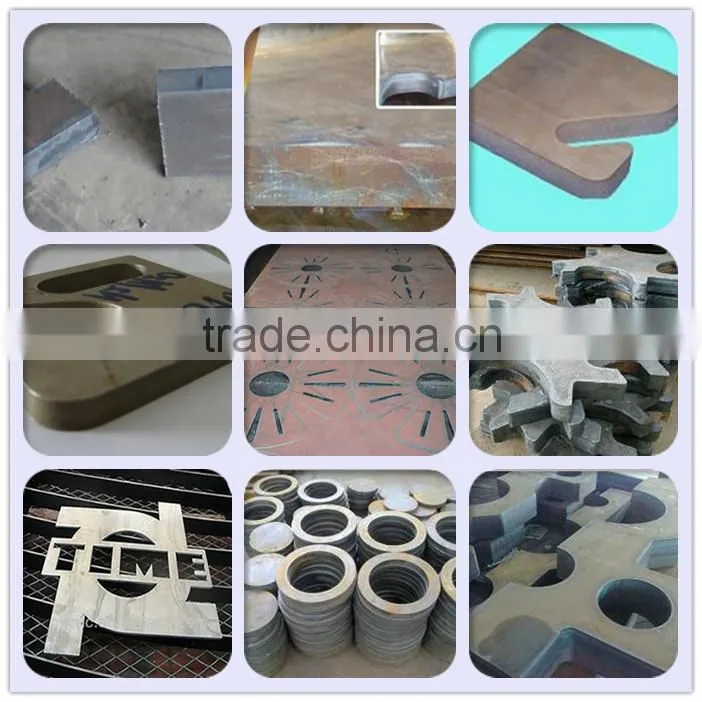

6.Samples Picture:

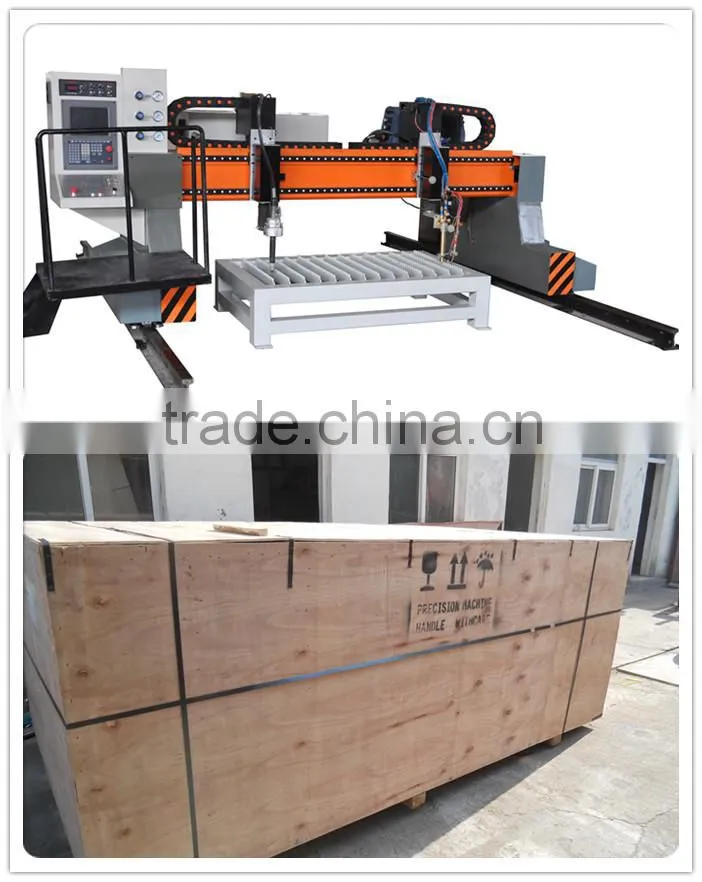

7.Packing Show:

8.Factory Show:

9.Warranty and After Sales Service:

1).One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2).Maintenance free of charge during lifespan.

3).Free training course at our plant.

4).We will provide the consumable parts at an agency price when you need replacement.

5).24 hours on line service each day, free technical support.

6).Machine has been adjusted before delivery, operation disk is included.
