Specifications
1,USA Cutmaster welder2. Taiwan linear square rail
3. Panasonic servo driving
4. Fastcam software
5.CE/FDA certificate

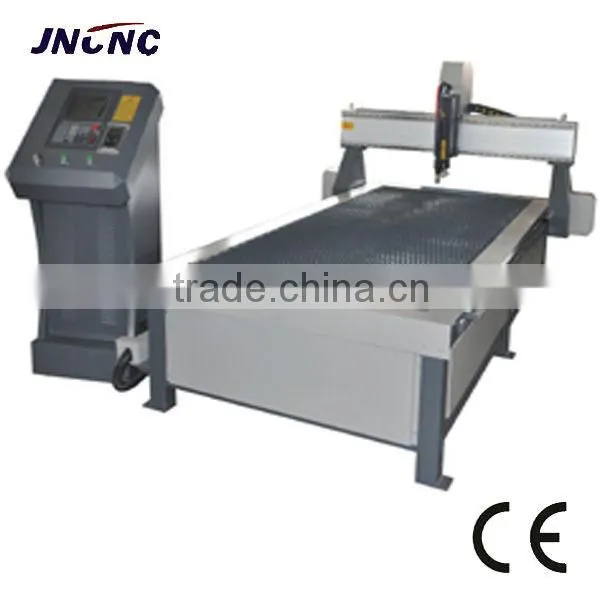

Cutmaster plasma cnc metal cutting machine
1.Brief Introduction:
It is mainly used in steel construction, steel tower, plates, construction machine, boats and ships
manufacturing industry.

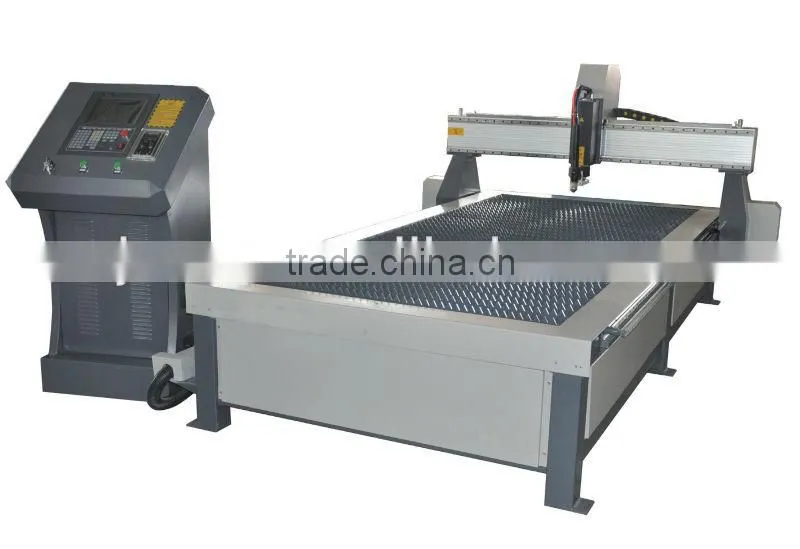

2.Picture of Metal Cutting Machine:
3.Technical Parameters:
Working Area |
metal cutting machine |
Cutting Thickness |
(120A)3-16mm (200A) 3-30mm ( according to the material) |
Moving Speed |
0-50000mm/min |
Cutting Speed |
0-10000m/min |
Cutting accuracy |
±0.02mm |
Power Supply |
HWAYUAN / American HYPERTHERM (HPR)/ American THERMADYNE |
Input Voltage |
3 Phase 380V |
Power Frequency |
50HZ |
Flies Transfer |
USB Interface |
Arc type |
Untouched type |
Motor |
Panasonic servo motor |
Guide rail |
Taiwan imported linear guide |
Transmit way |
Taiwan imported ball screw |
Operation language |
English or Chinese |
Command |
G code, *uoo, *mmg, *plt |
Optional power source |
American Hypertherm and American Thermadyne |
Spare parts |
Electrode, Electricity nozzle and Water jacket |
Control system |
DSP or Start control system
|
Applicable material |
Steel, carbon steel, stainless steel, iron plates, aluminum and copper |

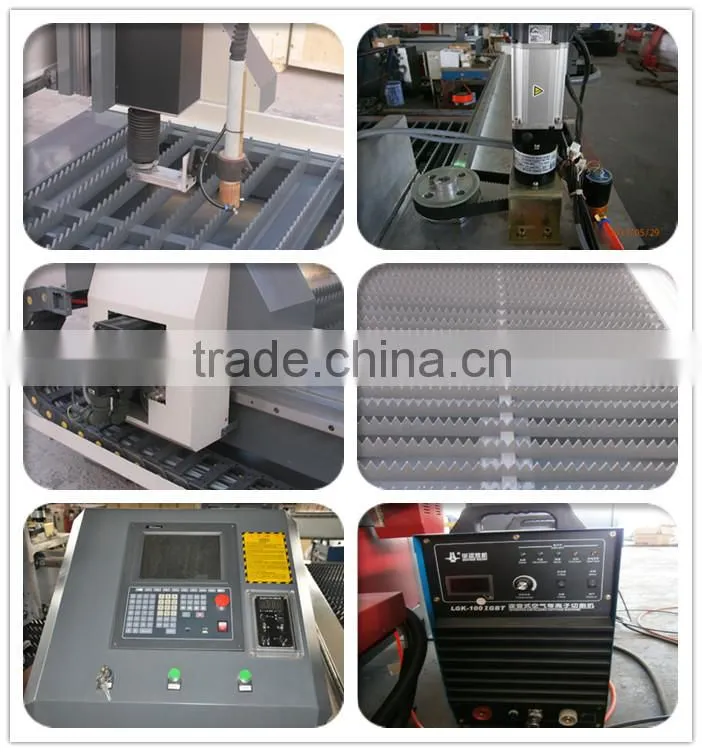

4. Main parts picture of metal cutting machine:
5. Applications:
1,Metal cutting industry. suitable for the cutting of any metal plate, such as stainless steel plate, carbon
steel plate, silicon steel plate.
2,Discharging metal material for machining industry,construction industry, Auto industry, Ship industry,
Mining industry and so on.
3,Other industries needing cutting of metal plate.
6. Samples picture of metal cutting machine:
7.Features:
1).It can apply to steel plates, copper plates, iron plates, the aluminum plates, galvanized plates,
titanium plates and other metal plates.
2).Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission.
Lower noises, stable and accurate coordinate movement.
3).Starfire control system made in Sino-US joint venture and Germany design software FastCAM with
auto material saving function.
8.Packaging Details:
9.Exhibition Show:
