Specifications
1.Japan Yaskawa Servo Motor2.Linear Tool Magazine
3.SYNTEC control system
4.HIWIN linear guide rail and rack
5.CE FDA
ATC CNC Router Wood Carving Tool For Sale
1. Brief Introduction:
ATC CNC Router is widely used in furniture, decoration, industrial equipment parts, music instruments, molds, arts &crafts, building models, and advertisement engraving and cutting.

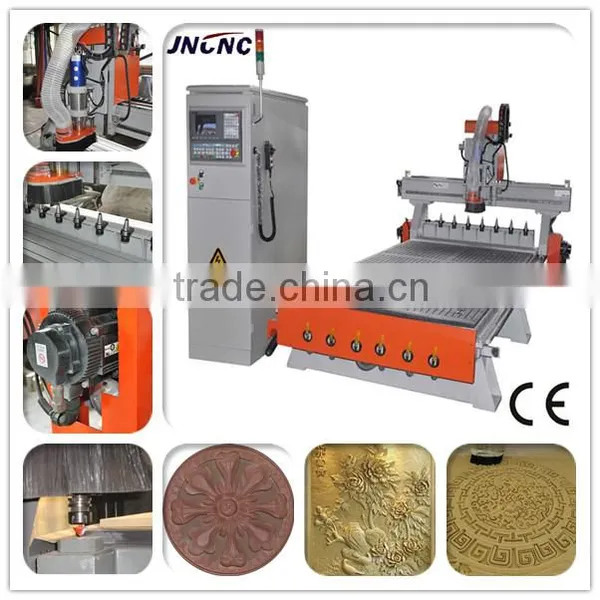

2. Wood Carving Tool For Sale Pictures:
3. Parameters:
Model Name |
CNC-WRS1325 |
CNC-WRS1530 |
CNC-WRS2030 |
CNC-WRS2040 |
Working Area |
1300*2500*190mm |
1500*3000*190mm |
2000*3000*190mm |
2000*4000*190mm |
Lathe Bed |
welded |
|||
Beam |
Aluminum Alloy |
|||
X Y Transmission |
Imported Square Rail |
|||
Z Transmission |
Imported Ball Screw |
|||
Spindle Motor |
5.5KW ATC water cooling |
|||
Spindle Speed |
6000-24000rpm |
|||
Inverter |
HSD 11KW 9KW 5.5KW |
|||
Control System |
SYNTEC control system DSP |
|||
Typeset Software |
Type 3(English)/Ucancam |
|||
Motor |
Japanese Yaskawa Servo System 850W |
|||
Driver |
Leadline882 |
|||
Vacuum |
Tube and Lathe Table |
|||
Vacuum Pump |
TONGYOU 5.5KW(Water Cooling) |
|||
Max Moving Speed |
60000mm/min |
|||
Max Engraving Speed |
25000mm/min |
|||
Positioning Accuracy |
<0.04/300mm |
|||
Lathe Table |
Plastic Sheet |
|||
Dust Collector |
3.0KW |
|||
Voltage |
AC380V/50HZ |
|||
Tool Diameter |
2-----20 |
|||
Tool |
Tool magazine capacity of 8 tools, changing tools only takes 8 seconds |
|||
Application |
mainly used for production of closet doors, solid wood processing, furniture, etc. Also can be used for cutting and production of MDF |
|||
Warranty |
One year (Spindle motor is half year. The blades, sensor, power cable are expendables, not include.) |
|||
Payment |
50% prepayment by T/T, the balance to be paid upon receipt of B/L copy |
|||
Advantage |
Simple design, Complete Function |
|||
Optional Equipment | ||||
Name |
Specification |
|||
Operation system |
SYNTEC control system |
|||
LNC control system | ||||
Spindle Motor |
Italy 9.0KW HSD air cooling |
|||
Protection Device |
Limitation switch Dust collecting system |
|||
4. Features:
1) The bed lathe is welded by thick wall seamless cast steel. It is analyzed and designed with FEA and worktable is more reasonable and stable.
2) All of the bearings, ball screw, linear square rails, etc are lubricated and maintained automatically by the concentrate control system of the machine.
3) The main parts of the machine are all top-grade brands of the world, such as Japanese Yaskawa servo system.
4) Auto Tools Changer (ATC) with 8pcs of tools makes tools-changing rapidly and stably.
5) Vacuum sucking working table is divided into 6 individual zones, each of which has separate switch controller.
5. Applicable Industry and Materials:
1) Furniture: wooden doors, cabinets, plates, office and wood furniture, tables, chairs, doors and windows.
2)The wood products
3) Plate processing
4)Decoration industry
6. Factory Picture:
7.Exhibition Picture:
