Specifications
1.Structure: cast steel lathe2.NC Studio or DSP operating system
3.HIWIN square linear guide rail
4.OEM avilable
5.CE FDA
Engraver and Cutter 1325 cnc router
1.Brief Introduction:
Engraver and Cutter 1325 cnc router is widely used in advertisement, furniture, and doors engraving and cutting .

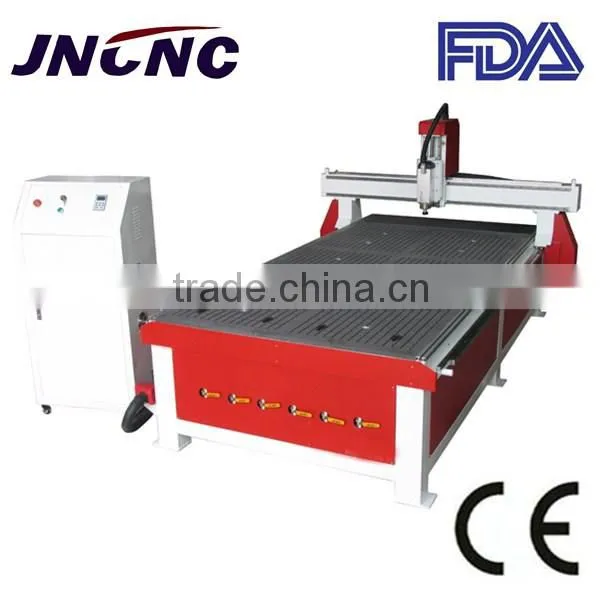

2.1325 CNC Router Picture:
3.Parameters:
Model Name |
CNC-R1325 CNC-R2040 CNC-R1530 |
Working Area |
1300*2500*190mm 2000*4000mm 1500*3000mm |
Spindle Power |
2.2Kw/3.0kw /5.5Kw |
Lathe Bed |
cast or welded |
Lathe Table |
Aluminum alloy/PVC |
XYZ guide rail |
Square Rail |
XY transmission |
Rack Gears |
Z transmission |
Ball Screw |
Spindle |
Changzhou |
Inverter |
Rituo or other brands |
Driver |
Leadshine882 |
Working Dictate |
G Code |
Operation Software |
NC Studio |
Typeset Software |
Artcut (English) |
Working Dictate |
G Code |
Processing accuracy |
<0.05mm/300mm |
Max Engraving Speed |
20,000mm/min |
Spindle rotational speed |
6000-24000rpm |
Tool Diameter |
Φ3.175mm,Φ6mm,Φ12.7mm |
Working Voltage |
AC220V/50Hz 380V/60Hz |
Optional Parts |
Dust collecting system |
Vacuum table with air pump | |
Mist sprayer and flume | |
Rotary device with Dia 80mm/100mm/200mm |
4. Applicable Industry of Engraver and Cutter 1325 cnc router :
Wooden door and furniture decoration industry, Wooden crafts processing, Electronic product industry, Instrument industry, EVA processing industry, Other industries.
5. Applicable Materials:
Wood, acrylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.

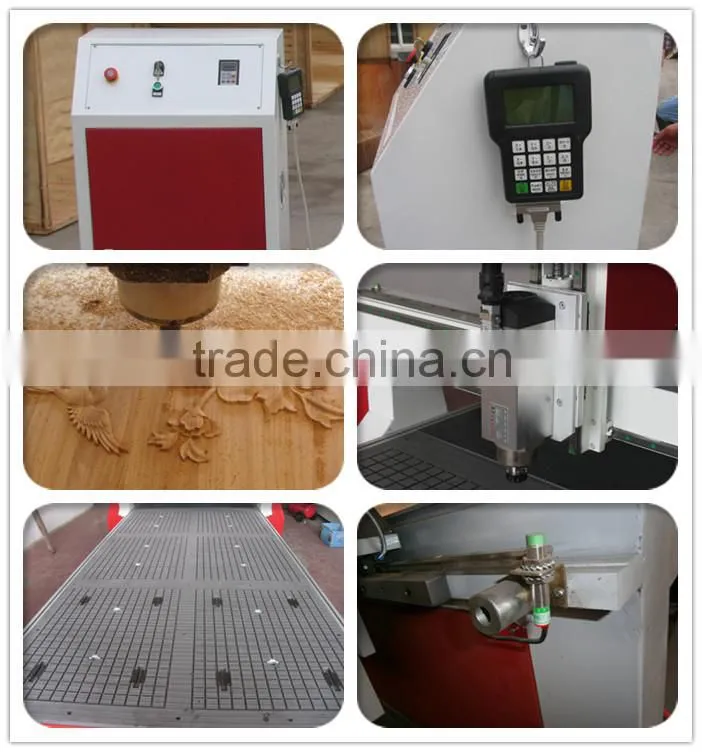

6. Standard Accessories:
7.Samples Pictures of Engraver and Cutter 1325 cnc router :
8. Exhibition Picture:
9. Warranty and After Sales Service:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2) Maintenance free of charge during lifespan.
3)Free training course at our plant.
4)We will provide the consumable parts at an agency price when you need replacement.
5)24 hours on line service each day, free technical support.
6)Machine has been adjusted before delivery, operation disk is included.
