Specifications
1.NC studio or DSP control system2.Max Engraving Speed:4000mm/min
3.Reposition Accuracy: 0.02mm
4.OEM avilable
5.CE FDA
China Wood 6090 cnc router
1. Brief Introduction:
China Wood 6090 cnc router with multi-functions, it can cut and engrave non-metal materials and also can
configure water tank to cut and engrave metal materials.

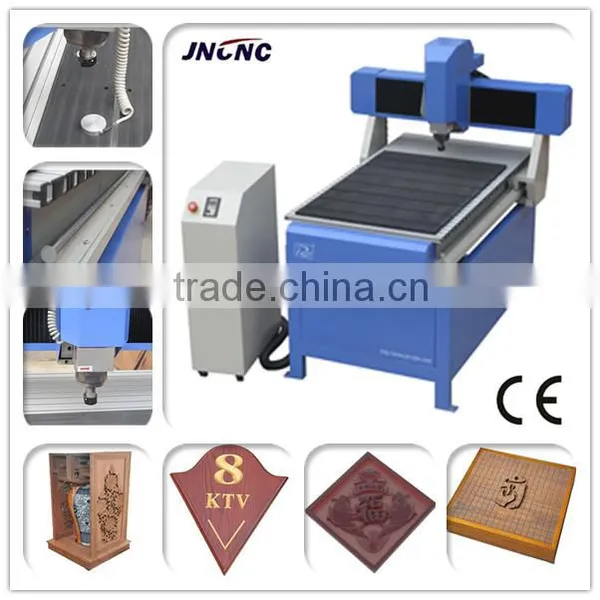

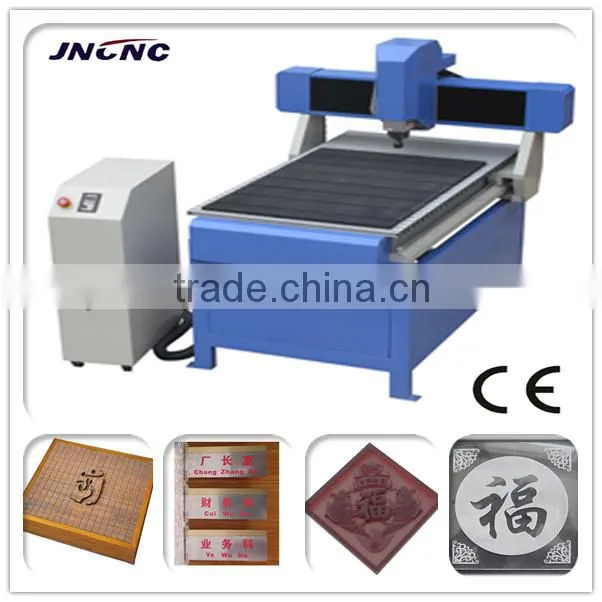

2. 6090 CNC Router Picture:
3. 6090 cnc router Parameters:
Model Name |
6090 cnc router |
Working Area(X*Y*Z) |
360*360*100mm 600*900*100mm 600*400*100mm |
Spindle Power |
1.5KW / 2.2KW |
Lathe Bed |
cast |
Lathe Table |
PVC |
XYZ guide rail |
Round Rail |
XYZ transmission |
Ball Screw |
Spindle |
changzhou |
Inverter |
1.5kw |
Driver |
chuangwei |
Operation Software |
NC studio |
Typeset Software |
Artcut (English) |
Processing accuracy |
<0.05mm/300mm |
Reposition Accuracy |
0.02mm |
Max Moving Speed |
6000mm/min |
Max Engraving Speed |
4000mm/min |
Tool Diameter |
φ3.175mm, φ4mm, φ6mm |
Working Voltage |
AC110V/220V, 50HZ/60HZ |
Optional Equipment |
2.2 Spindle Power |
Square rail transmission | |
Water Tank | |
Vacuum Table with air pump | |
DSP handle | |
Dust collecting system |

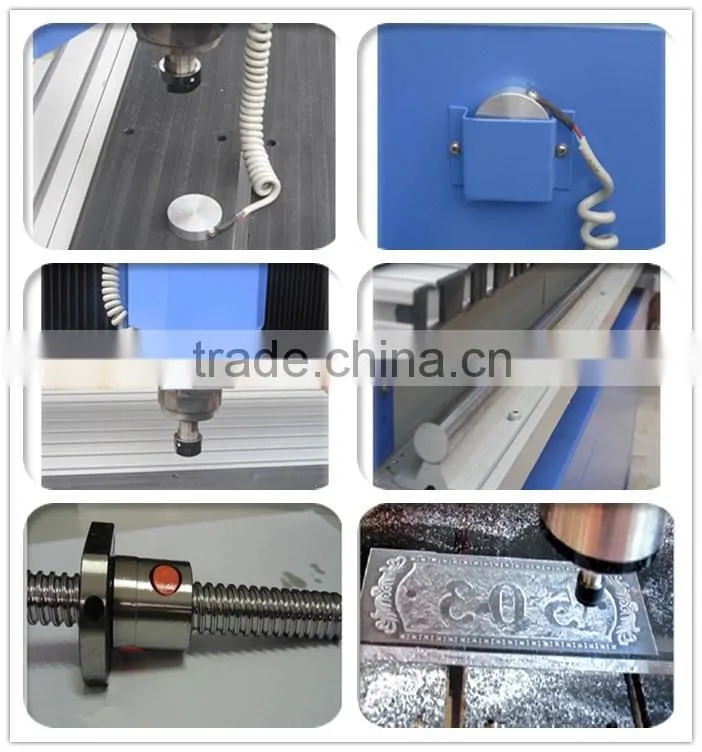

4. Picture of Main Parts:
5. Features:
1) Internal cast lathe bed, solid and stable, without distortion.
2) Imported ball screws ensures stable and smooth movement of the machine.
3) Water-cooling brushless spindle, low noise, vigorous cutting strength
4) Subdivision driver ensures fast speed and high accuracy.
5) Dust-proof and water-proof design ensures the maintenance more easily.
6. Samples Picture:
7. Factory Picture:

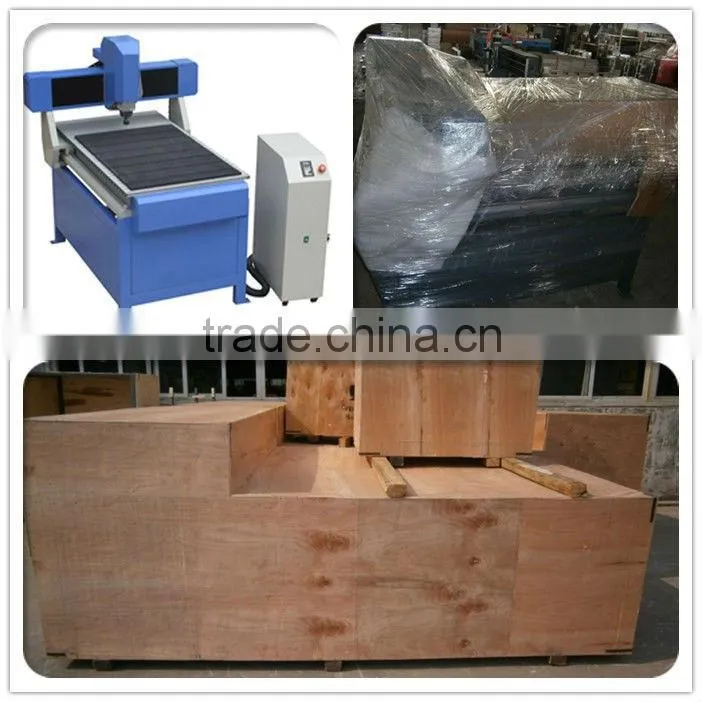

8. Packing picture:
9. Warranty and After Sales Service:
1) One year warranty for machine, maintenance free service within this period.
2) 24 hours online answer via skype, email.
3) Free training in our factory
