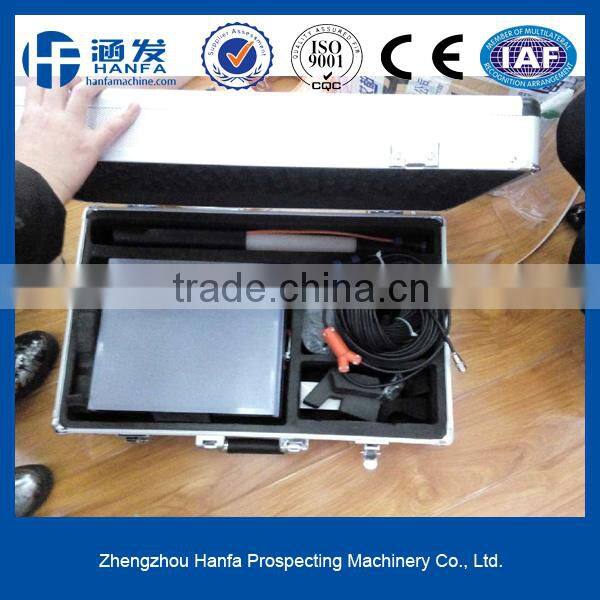

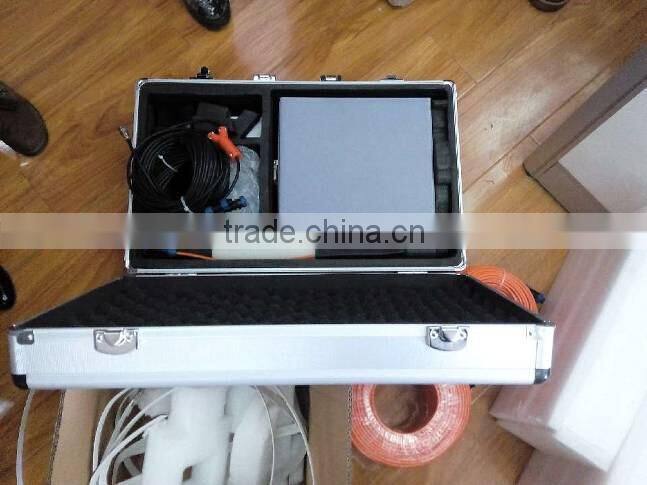

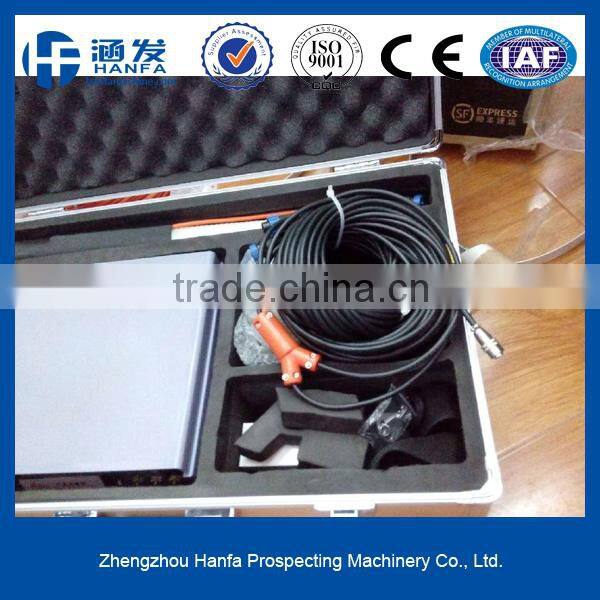

Hanfa Brand HFD-C water finder, mine finder

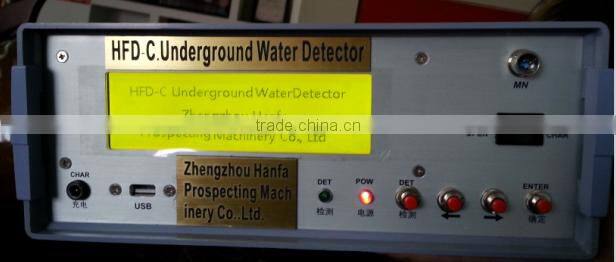

HFD-C Natural VLF Water detector/ Mine Locator

Use relative parameters like resistivity variation produced by benign conductors to find water. It can get water location, depth and outflow etc. It has obvious advantages: low cost, fast,high accuracy, full information, simple operation etc.

Feature:

Fast and high efficiency:Complete 4000m profile survey in a day, speed and efficiency improved 10 times than traditional method.

Easy to carry: Earth natural electric field as signal source without heavy power supply, weight ≤5kg, easy to carry and use.

Simple operation:Controlled by micro PC. Master operation within 10min. Just 2h you can finish training.

Good precision and high accuarcy:Resolution up to 0.001mV, high precision ±5%.

Strong Anti-Jamming capacity: Advanced anti-jamming technology and multiple anti-jamming design, get good curves result even in noisy road and high electric jamming area.

Flexible array: Traditional and unique array method: Multi-array measurement: traditional and original array method, good geological effect, easy explanation. Big achievement in direction, depth and thickness of ore vein.

Technical Parameters:

Automatic noise reduction, super anti-Jamming.

Measure 3frequencies(25HZ, 67HZ, 167HZ) or 30 frequencies test synchronously.

Operation functions are all displayed on LCD, simple operation.

Automatic test, data storage and map curves. No need to record data. No data will loss even power off.

Store 30 curves in 3 frequencies and 30 curves in multi-frequency surey.

Curves and data displayed, transmit data by U-disk storage them map or print.

Buit-in rechargreable batteries to supply power.

Electrode detection and power montioring.

Measuring range: 0.001mV-255mV(exchange range automatically)

Resolution: 0.001mV

Input Impedance: ≥10MΩ
