Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | Hanfa | Model Number: | HFT600ST |
Usage: | Water Well | Power(W): | 141KW | Dimension(L*W*H): | 12000*2500*4230mm |
Weight: | 27T | Certification: | ISO CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

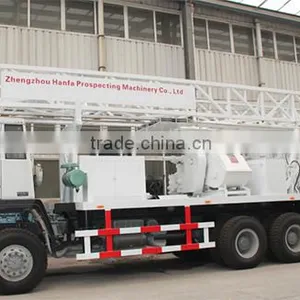

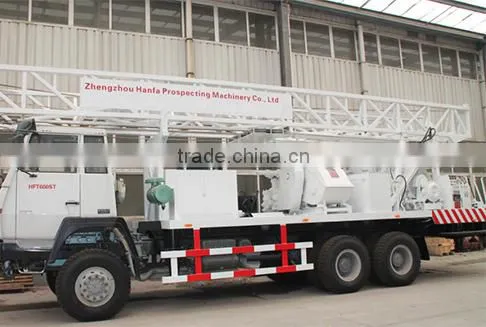

HFT600ST truck mounted water well drilling rig for sale
1.HFT600ST Drilling Depth 600 m, diameter of hole 190-500mm.
2.HFT600ST main components are installed in the "HOWO" brand 6×6 automotive chassis2.HFT600ST equipped with the breakout-gun cylinder.
3.HFT600ST is added a separate diesel engine as power, can also be provided with the motor as power, which can be electrically firewood dual-purpose.
4.HFT600ST equipped with BW1100 mud pump, can realize direct and reverse circulation, equipped with air compressor ,can realize DTH drilling.
5.HFT600ST is equipped with four jacks to reduce physical labor and improve the efficiency of installation.
6.HFT600ST with high efficiency heat heat dissipation structure, especially suitable for high temperature desert zone.
7.Exploration and investigation of hydro-geological condition.
Water well drilling for agriculture irrigation, industry and national defense.
Ventilation of underground tunnel. HFT600ST can also be used in building engineering
Power | BF6L913C | |
Drilling Depth | 600 m | |
Diameter of hole
| Open-hole 500mm | End hole 190mm |
Drilling pipe
| 89×9×6000mm 73×7×6000mm | |
Max through hole diameter of rotary
| 505mm
| |
Driving Kelly | 108×108×7315mm
| |
Mast
| ||
Effective height | 11m
| |
Rated load of hook
| 25T | |
Hoisting system
| 3×4 | |
Dimensions (in transportation state) (L×W×H)
| 12000×2500×4230mm
| |
Total weight
| 27T
| |
Max.truck speed
| 73Km/h | |
Away angle
| 13.5
|
