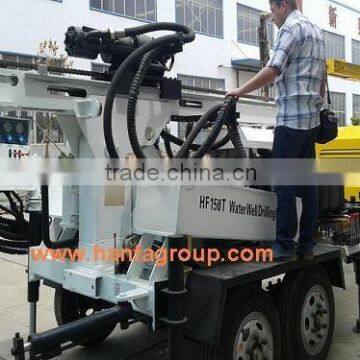

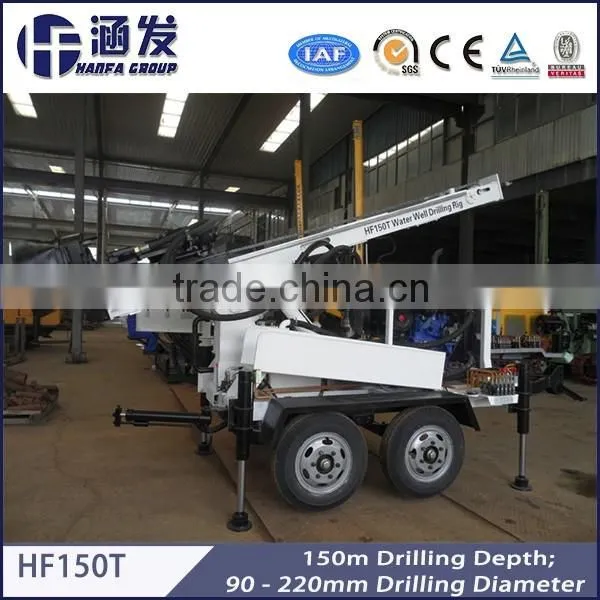

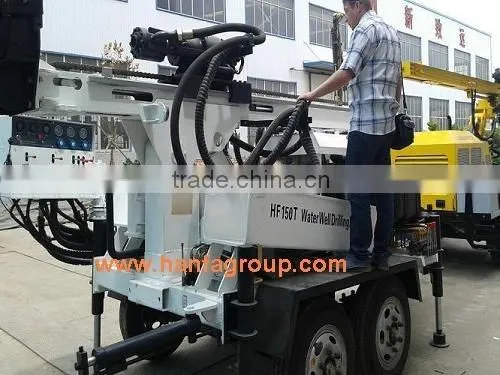

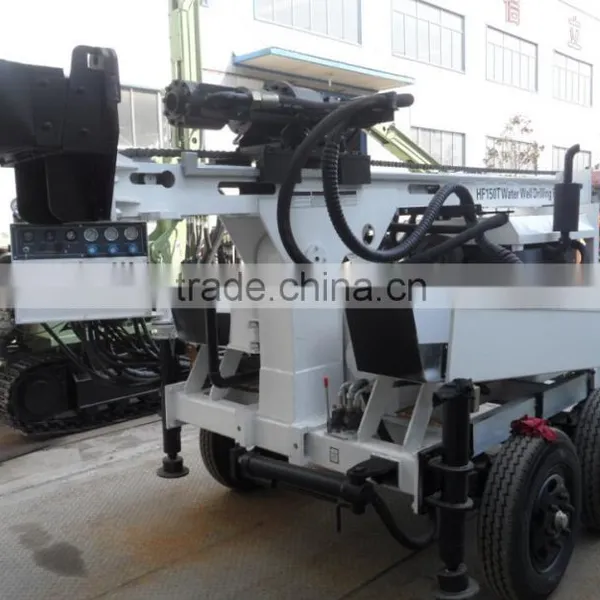

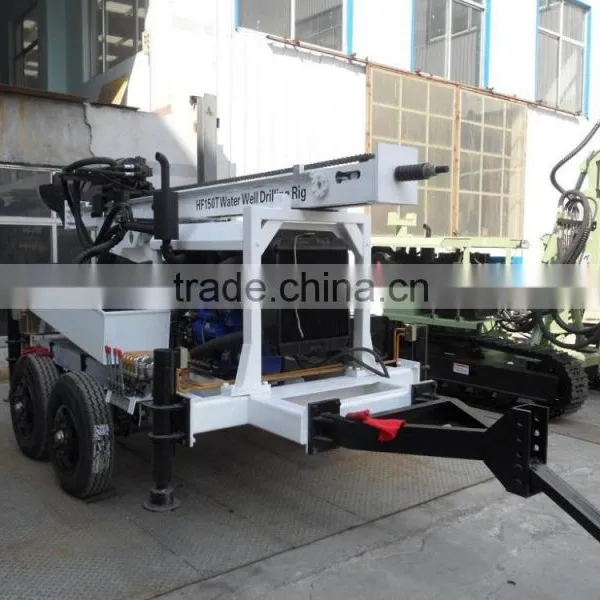

Welcomed in Market 150m Depth HF150T Trailer Water Well Drill Rigs

FOB Price

USD $20,000 - $50,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	10-30M/hour	Place of Origin	Henan, China
Brand Name	HF	Model Number	HF150T
Voltage	220v	Power(W)	45KW
Dimension(LWH)	4540X1750X1900	Weight	6T
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Main Technical Parameters:

Model	HF150T
Drilling diameter (mm)	90---220mm
Drilling depth (m)	0-150m
Drill system and operation	Hydraulic
Rig assembly	1 complete unit, main engine driven
Mobility	4 wheel tandem road trailer
Transportation	Towed by pickup or light truck
Drill pipe (diameter x length)	76 mm x 2 m
Foam pump	Hydraulic driven, mounted on rig
Speed of Rotary(RPM)	0---90
Torque of Rotary(N.m)	2232
Once promotion distance (mm)	2250
Pull up capacity (Kg)	3813
Pull-up speed-slow feed (m/min)	1.22
Pull-up speed-rapid feed (m/min)	12.26
Pull-down speed-slow feed (m/min)	0-1.88
Pull-down speed-rapid feed (m.min)	0-16.9
Power pack speed (r/min)	3000
Load power pack (HP)	47
Mud pump flow capacity (L/min)	400
Max working pressure (bar)	6
Hydraulic tank capacity (L)	140
Max. air pressure (bar)	40
Oil tank capacity (L)	8
Diesel engine model	YC2115
Diesel engine power(KW)	45
Total Weight (KG)	2177
Dimension (mm)	4540X1750X1900
