Max 120m Depth! HF100T Tractor Type Water Well Drilling Machine
- 50 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T Credit Card PayPal
You May Like
-
Welcomed in South America ! High Efficiency HF120W Trailer Hydraulic Portable Water Well Drill Equipment
-
Diesel Engine Type ,Easy -handing Mobile Drill Well Rig , HF150T Hydraulic 150m Deep Water Well Drilling Rig
-
air reverse circulation 400m depth HFW400L Deep Water Well Drilling Rig , Rotary Drilling Rig
-
120m Depth Trailer Mounted Drilling Rig portable drilling rig
-
exported to Phillippines !!! HF-6A Percussion borehole drilling machine foundation piling machine
-
exported to Tunisia 400 meters depth HFC400 truck mounted water drilling rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | Hanfa drilling rig | Model Number | HF100T | |
| Usage | Water Well | Voltage | 220V/380V | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 3400*1350*2200mm | |
| Weight | 1 ton | Certification | ISO CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Water Well Drilling Machine
2016 Hot saling ! rock expert !

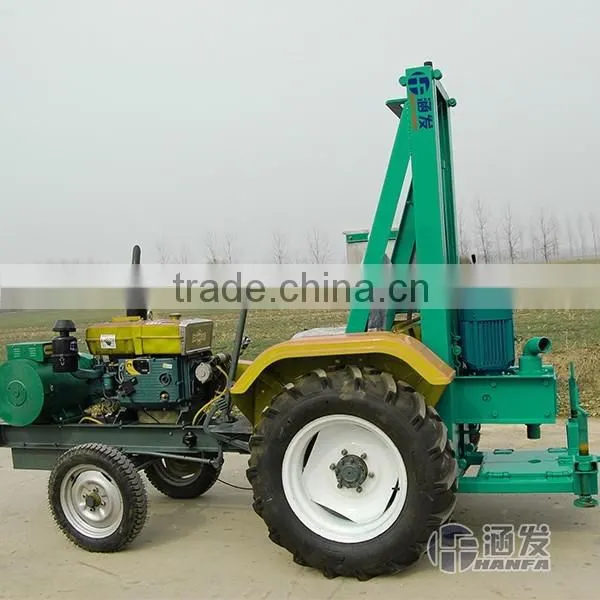

HF100T Tractor Water Well Drilling Machine
1. This drilling rig adopts advanced topdrive technic, vibration technology, Fully hydraulic controlling, saving 50% of energy compared to the same drilling machine.
2. No complicated mechanical operation handles, the drilling machine structure is compact, strong and durable,no need to disassemble when being transported.
3. It is fast at drilling speed, strong stability,high vertical precision of boreholes.
4. Power head uses the gear reducer combined of vabration,strong torque;when meeting with hard rock, can use the vibration function to improve the drilling speed,it is the ideal drilling equipment for users at home and abroad.
5. This machine is suitable for the soil, sand, rock, gravel, weathering rock, construction precipitation, geothermal heat, industrial and agricultural water wells, family use well drilling projects and so on.
Drilling Capability | Drilling Caliber | Drilling Depth |
400~100mm | 40~120m | |
Drilling Speed in Soft Stratum | 40-50 m/h | |
Electrical Motor of Rotary Head | 7.5kw | |
Diesel Engine of Tractor | 16HP | |
Power of Generator | 24Kw | |
Sewage Pump | 5.5kw/7.5Kw | |
Speed of Lifting Drill Pipe | 30 m/min | |
Max. Lifting Weight | 1 ton | |
Dimension (L*W*H) | 3400*1350*2200mm | |
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
