HF-6A Percussion Engineer Borehole Drilling Rig , Piling Rig

Name: HF-6A Percussion Engineer Borehole Drilling Rig , Piling Rig
Brand: Hanfa
SKU: 101810287
Availability: InStock

US$ 90000.00 - 90000.00 MOQ: 1 Set

Key Specifications

Condition:

New

Efficiency:

high

Place of Origin:

Henan, China

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency high

Place of Origin Henan, China

Brand Name Hanfa

Model Number HF-6A

Weight 9500kg

Dimension(L*W*H) 9.30*2.28*2.80m

Certification CE and ISO9001

After-sales Service Provided Engineers available to service machinery overseas

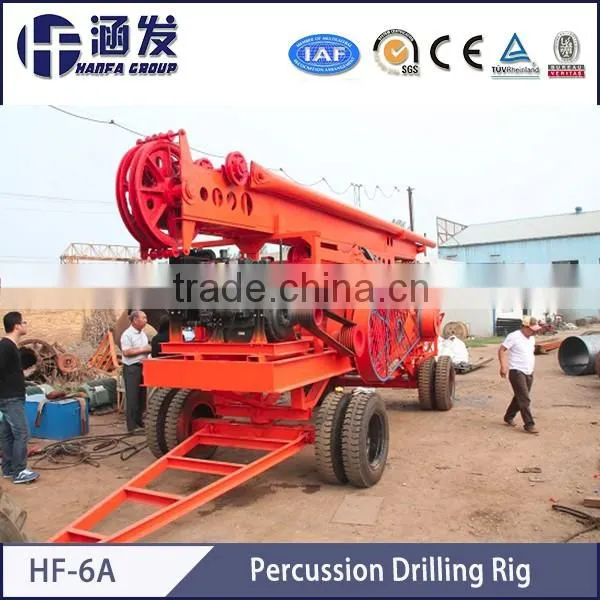

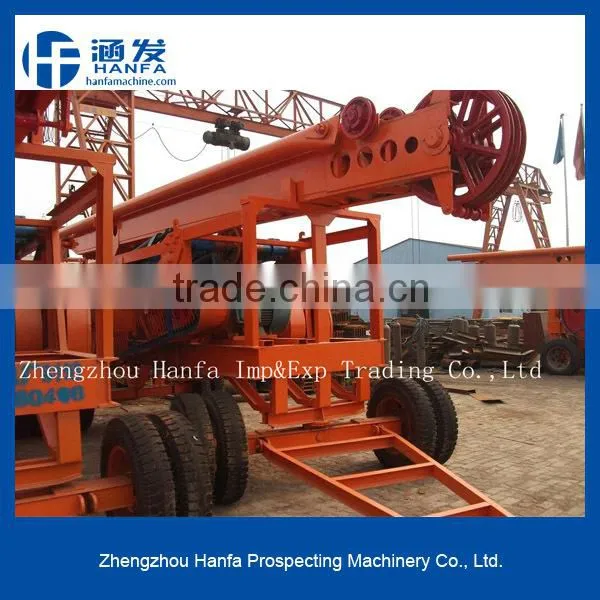

HF-6A Percussion Engineering Drilling Machine, Piling Machine

1.Percussion type drilling rig is one important drilling equipment in foundation construction of pile and

borehole.It can adopt to various geological conditions,especially to pebble bed and rock stratum.

Percussion drilling rig is more applicable than the other kinds of drilling machines.Meanwhile,when use

the percussion drilling rig to drill boreholes,after the hole is formed,there will be a dense layer of soil

around the hole wall,which is very useful for stabilizing the hold wall and improving the carrying

capacity of the pile foundation.

2. HF-6A drilling rig isvery popular in the market currently,all of its components are all installed in

the trailer,like electric motor,drive motor,hoist,mast etc,integrate motion. The percussion drilling rig

uses the crank link mechanism to change the power's gyration motion into alternating motion ,

through the steel wire rope to drive the hammer bit to do up-and down motion.With the impact

effect of the hammer bit's free failing,to break the soil,sand,pebble or rock into pieces,and then

use the slag tube or mud pump to clean the slag our of the hole.

HF-6A Basic Mechanical Features and Specifications
Mechanical features		Specifications
Dimensions(M)		9.302.503.10
Transport dimensions(M)		9.302.282.80
Weight(kg)		9500
Drilling diameter(mm)		300-1800
Drilling depth(M)		300(when dia. Is 600mm)
Max.Weight of drill bit(kg)		5000
Impact stroke(mm)		Max.850,Min.700
Rate of impact(time/min)		38-42
Electric motor		Model YL280M2-6,55KW 980R/Min
Height of mast (M)		Single bar8.5-9.5m; Double bar12.5m
Load capacity of mast(kg)		50000
Hauling speed(km/h)		30
Lifting capacity of Hoist(N)	Front hoist	20096
Lifting capacity of Hoist(N)	Back hoist	68357
Steel wire rope of coiling block(M)	Front coiling block	6×37-dia.18 200-250(Left turning)
Steel wire rope of coiling block(M)	Back coiling block	6×19s+IWRC 200-300(Left turning)
Wheel	Tire size	7.50-20
Wheel	Steel ring size	20×7
