Non Contact Long Flexible SSI Output Linear Positon Sensor
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Germanjet
Model Number:
19 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20 - 0mA Magnetostrictive Level SensorUS$ 200 - 700MOQ: 1 Piece -
0-20mA Magnetostrictive Level SensorUS$ 200 - 700MOQ: 1 Piece
-
0-20mA Magnetostrictive Oil Level SensorUS$ 200 - 700MOQ: 1 Piece
-
20 - 0mA Magnetostrictive Oil Level SensorUS$ 200 - 700MOQ: 1 Piece
-
20 - 4mA Magnetostrictive Oil Level SensorUS$ 200 - 700MOQ: 1 Piece
Place of Origin
Germany
Brand Name
Germanjet
Model Number
19 Series
Usage
Position Sensor
Theory
Other, Magnetostrictive Sensor
Output
Analog Sensor
Product Description
Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

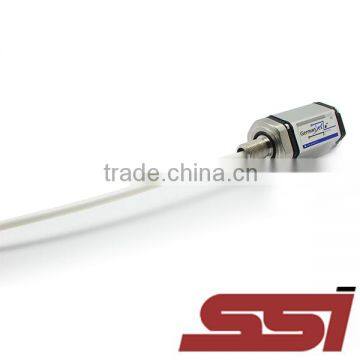

F model - Flex Sensor Housing
F model is design for very long stroke lengths and linear measurements on an arc. Standard stroke length begins from 2500mm up to 10 meters. And longer lengths are available for special applications. The F model is available with all 19 series outputs including analog, serial digital and fieldbus interfaces.
| Order Code | 192 |
| Output | SSI |
| Measurement Type | Linear displacement |
| Data Format | Binary or Grey |
| Data Length | 8 - 32 bits |
Data Speed |
Cable Length : <3 <50 <100 <200 <400 m |
Baud rate : 1000 <400 <300 <200 <100 kBd |
|
| Update Time | Measuring Length : 300 750 1000 2000 5000 mm |
| Measurement/sec : 3.7 3.0 2.3 1.2 0.5 kHz | |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
