CE Made In China Tube Bending Machine
1. Brief Product Introduction Of Tube Bending Machine:
This channel letter bending machine is mainly used in metal words advertising area .

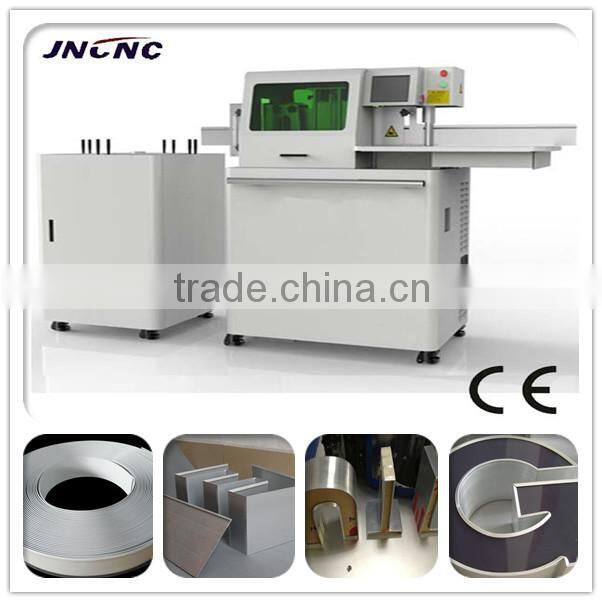

2. Picture Of Tube Bending Machine:
3.Parameters Of Tube Bending Machine:
Applicable Materials |
Stainless steel, galvanized sheet, aluminum sheet …etc |
|
Material thickness |
Stainless Steel: 0.5 ~ 1.0mm |
Galvanized iron: 0.5 ~ 1.2mm | |
Aluminum: 0.5 ~ 1.5mm | |
Material width |
20 ~ 150 mm |
Feeding speed |
10~40M/MIN |
Power |
1.7KW |
Voltage |
AC220V,50HZ |
Air Pressure |
0.7MPA |
Size |
1600*800*1550mm |
Weight |
450KG |
Precision |
0.05 mm |
Input file format |
.plt |
Communication port |
USB |
Range |
Types of channel letters made of metals. |
Packaging Details |
2 wooden boxes: 1.35m*1.1m*1.7m + 0.85m*0.85m*1.3m = 3.46cbm |
|
Advantages |
User-friendly interface, simple operation through LCD touch Screen
|
|
Patented notching blade, milling processing technology, no spark, no dust, slotting surface is smooth & bright | |
|
High precision & one-time notching for materials with different thickness | |
Double-sided slotting for customers' flexible choice | |
Non-crease bending, smooth surface | |
Super durable, stable |
4.Features Of Tube Bending Machine:
1).Non-stop working, sustainable for more than 72 hours.
2).Continuous processing several files at the same time.
3).Double-side notching, once cutting for different thickness, efficient and fast..
4).No spark, no dust, security, healthy during processing.
5).High notching precision-accuracy 0.01mm, apply milling process, smooth grooves, no burr.
6).Free switch notching or bending for your option, convenient and quick
7).Bending mechanism can be replaced flexibly with different bending blade, minimum diameter is 10 mm.
8).Software, hardware upgrade maintenance for free life long.

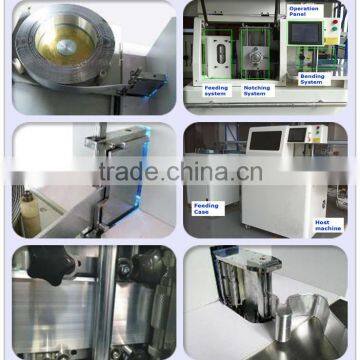

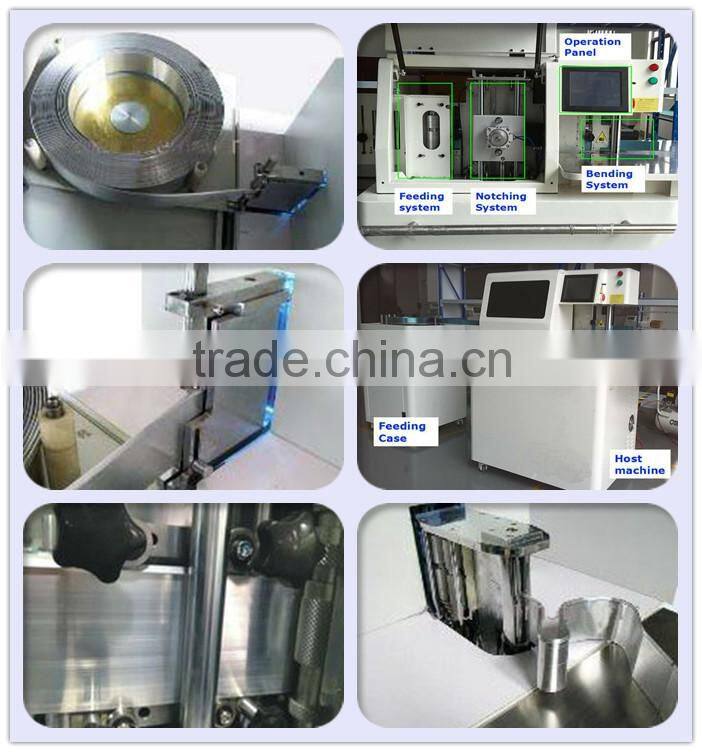

5.Main Parts Picture Of Tube Bending Machine:

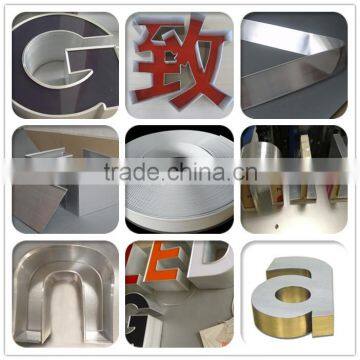

6. Samples Pictures Of Tube Bending Machine:

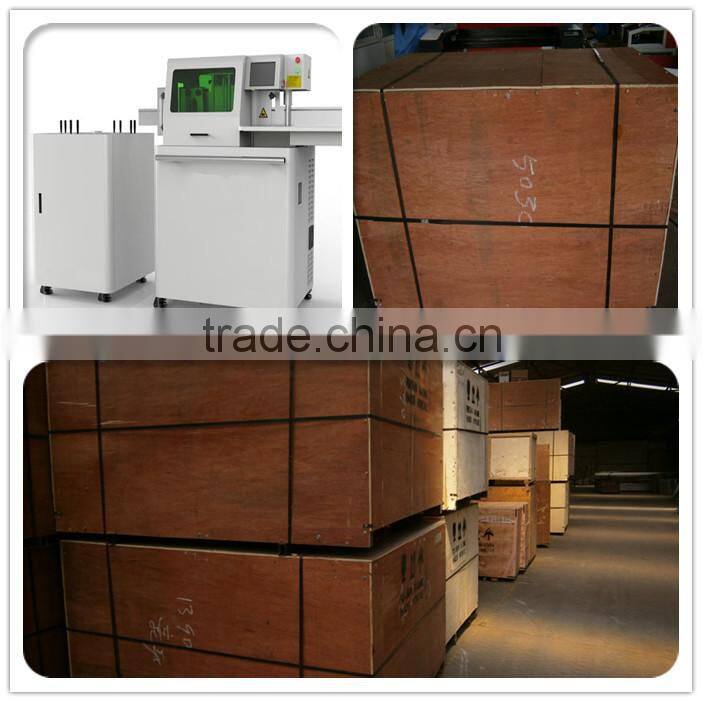

7. Packing Details Of Tube Bending Machine:
8.Factory Show Of Tube Bending Machine:

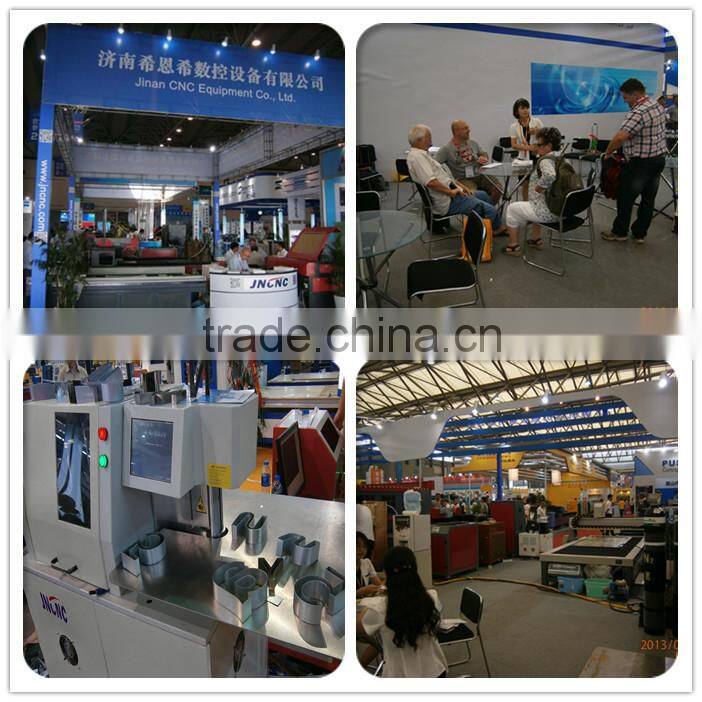

9.Exhibition Show Of Tube Bending Machine:
10.Warranty and After Sales Service Of Tube Bending Machine:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2).Maintenance free of charge during lifespan.
3).Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5).24 hours on line service each day, free technical support.
6).Machine has been adjusted before delivery, operation disk is included.
11. Why Do Clients Choose Us?
1) At the same quality grade, our price is better:
a) Since we are manufacturer, we produce machines on large scale. Our profit mainly comes from order quantity, not from unit machine.
b) We own advanced production equipment, high efficiency and low production cost, so we can provide you with the best price for machines.
2) At the same price level, our service is better:
a) Before purchasing, please feel free to talk with us through trademanager message tool. Our service staff will recommend the proper model to fit your demand best.
b) Aftersale, we guarantee the machine in 12 months dating from you receiving the machine. During warranty period, if some part is broken due to manufacturing defect, we will send you a new one to replace it by free cost and free shipment.
c) We will provide you free technical supporting during the whole lifespan of the machine.
