Specifications
1.Auto bending, notching, feeding2.Making metal letter,LED letter ,neon letter
3.1 year warranty
4.0.05mm precision
5.CE
CNC Metal Aluminum Channel Letter Bending Machine
1.Brief Introduction:
This channel letter bending machine is mainly used in metal words advertising area .

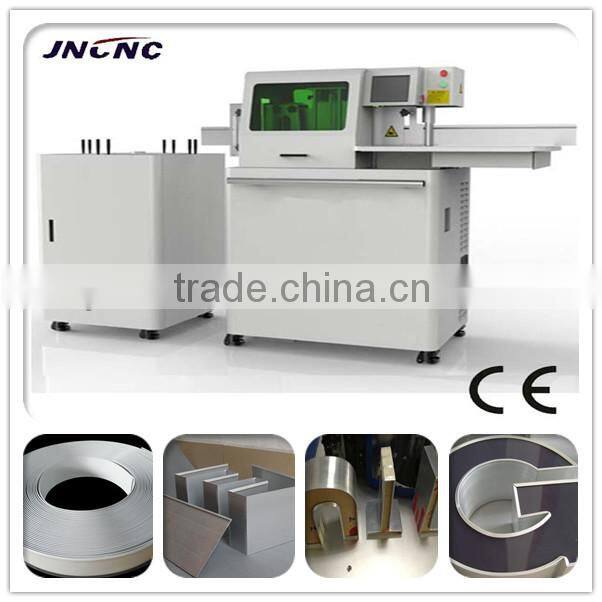

2.Picture of Aluminum Channel Letter Bending Machine:
3.Technical Parameters:
Applicable Materials |
Stainless steel, galvanized sheet, aluminum sheet …etc |
|
Material thickness |
Stainless Steel: 0.5 ~ 1.0mm |
Galvanized iron: 0.5 ~ 1.2mm | |
Aluminum: 0.5 ~ 1.5mm | |
Material width |
20 ~ 150 mm |
Feeding speed |
10~40M/MIN |
Power |
1.7KW |
Voltage |
AC220V,50HZ |
Air Pressure |
0.7MPA |
Size |
1600*800*1550mm |
Weight |
450KG |
Precision |
0.05 mm |
Input file format |
.plt |
Communication port |
USB |
Range |
Types of channel letters made of metals. |
Packaging Details |
2 wooden boxes: 1.35m*1.1m*1.7m + 0.85m*0.85m*1.3m = 3.46cbm |
|
Advantages |
User-friendly interface, simple operation through LCD touch Screen
|
|
Patented notching blade, milling processing technology, no spark, no dust, slotting surface is smooth & bright | |
|
High precision & one-time notching for materials with different thickness | |
Double-sided slotting for customers' flexible choice | |
Non-crease bending, smooth surface | |
Super durable, stable |
4.Features:
1).Non-stop working, sustainable for more than 72 hours.
2).Continuous processing several files at the same time.
3).Double-side notching, once cutting for different thickness, efficient and fast..
4).No spark, no dust, security, healthy during processing.
5).High notching precision-accuracy 0.01mm, apply milling process, smooth grooves, no burr.
6).Free switch notching or bending for your option, convenient and quick
7).Bending mechanism can be replaced flexibly with different bending blade, minimum diameter is 10 mm.
8).Software, hardware upgrade maintenance for free life long.

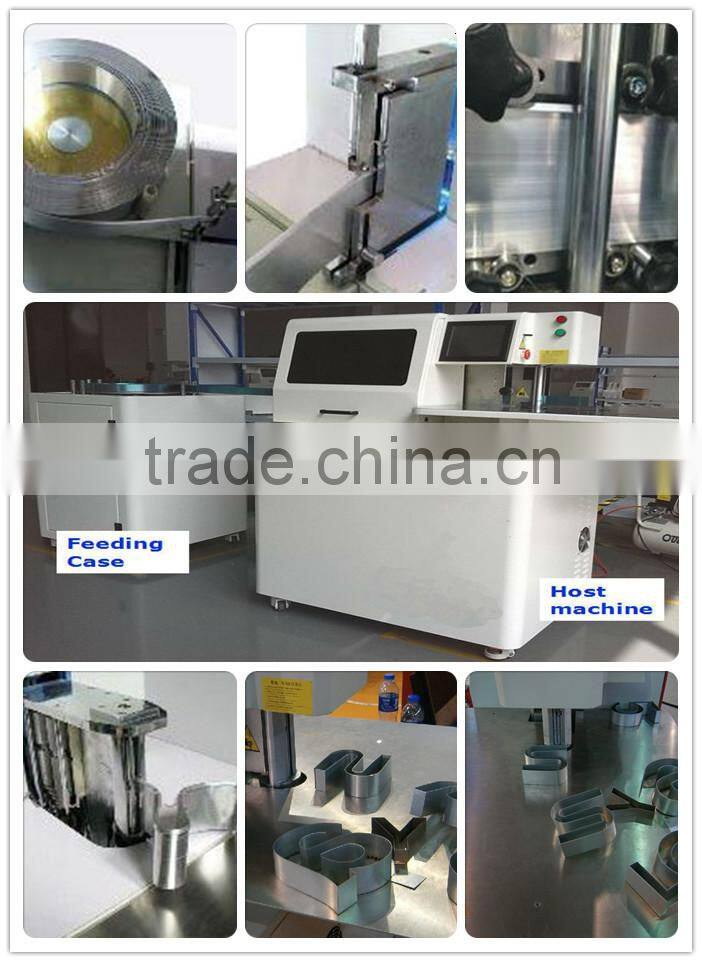

5.Main Parts Picture:

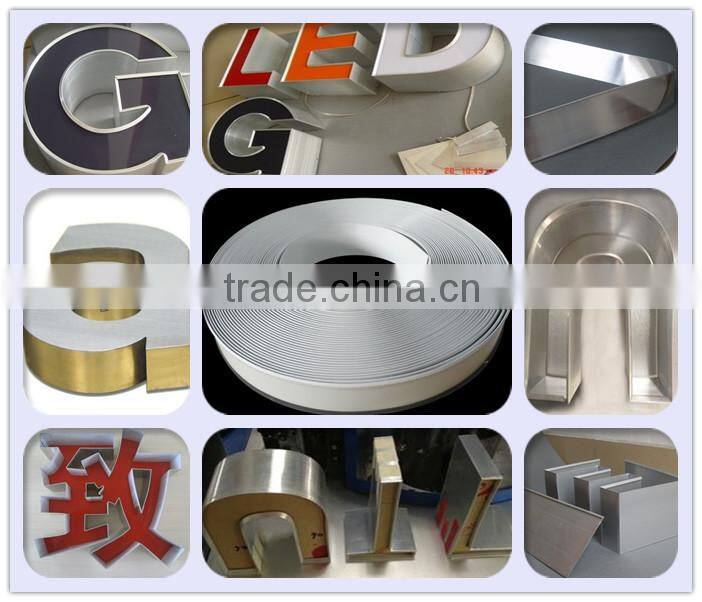

6.Samples Show:
7.Packaging Show:
8.Exhibition Show:
9.Warranty and After Sales Service:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2).Maintenance free of charge during lifespan.
3).Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5).24 hours on line service each day, free technical support.
6).Machine has been adjusted before delivery, operation disk is included.
