HF130Y crawler mounted hydraulc screw piling rig for solar PV
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Other, DTH rock drilling rig | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | Hanfa | Model Number: | HF130Y crawler mounted small solar spiral pile rig for sale |
| Usage: | Water Well | Voltage: | 220V/380V | Power(W): | 56Kw |
| Dimension(L*W*H): | 4460*1950*2460(mm) | Weight: | 4360Kg | Certification: | ISO CE |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

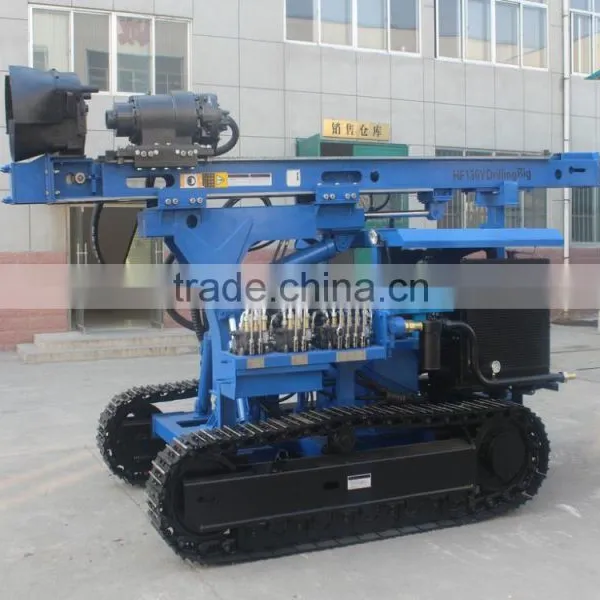

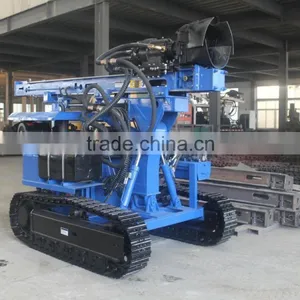

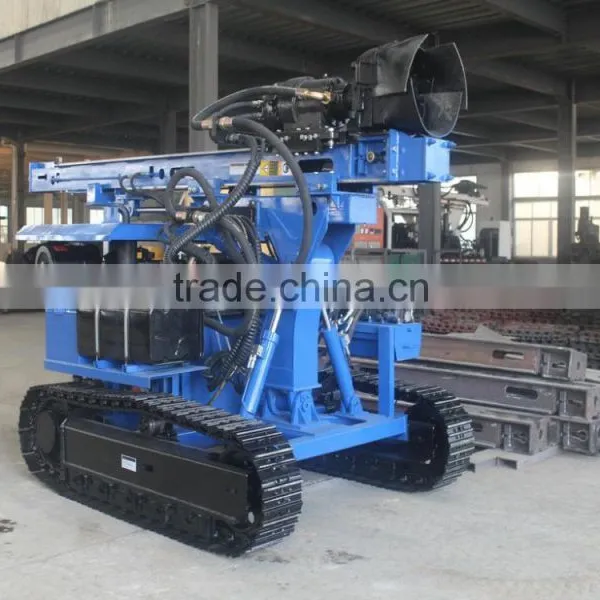

HF130Y crawler mounted hydraulc screw piling rig for solar PV
1. HF130Y DTH drilling rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection .
2. HF130Y DTH drilling rig structure is compact,.while the mast has adjustable
compensation function.when drilling, the mast supported on the ground, borehole stability is good.
3. HF130Y DTH drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
4. HF130Y DTH drilling rig is mainly used for piling anchor, water Wells,
Photovoltaic solar spiral pile, DTH blasting construction, etc.
Bore diameter(hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
|
Pipe diameter | 76mm/89mm |
For rock | F=6-20 |
Bore diameter(screw) | Max 400mm |
Bore depth | 0-30m |
Screw pipe diameter | 130-400mm |
Once promotion | 2000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 40° |
Rotation speed | 0-70r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 4460*1950*2460(mm) |
weight | 4360Kg |
Walk speed | 0-2.5km/h |
Hanfa Group established in 1998 is a key enterprise in the industry of drilling machine in China, with the ability to research, manufacture and market.Presently,it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd,Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.Hong Kong Hanfa Prospecting Machinery Co., Ltd.
Sales manager:Vincent Guo
Office tel:+0086-371-55019599
Accessories:+0086-371-55019184
Email:admin@
Website:
Contact Us
- Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
- Contact nameVincent Guo
- Phone86-0371-67990397
- AddressYulan Street, High-tech Zone, Zhengzhou City, Henan Province, China. Zhengzhou,Henan
-
