CE,ROHS Approved 28W Ultra Flat Led Light Panels 300X600

US$ 35 - 55 MOQ: 100 Pieces

Key Specifications

LED Light Source:

SMD

Warranty(Years):

Input Voltage(V):

AC85-265V

Shenzhen JuJiaXin Opto-Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source SMD

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 28

Lamp Luminous Flux(lm) 2800

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -30, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification BV, CCC, CE, CQC, C-tick, Energy Star, EMC, ETL, FDA, FCC, GS, GOST, LVD, PSE, REACH, SAA, SASO, UL, VDE

Place of Origin Guangdong, China

Brand Name JJX

Model Number JJX-PL28W

Specifications

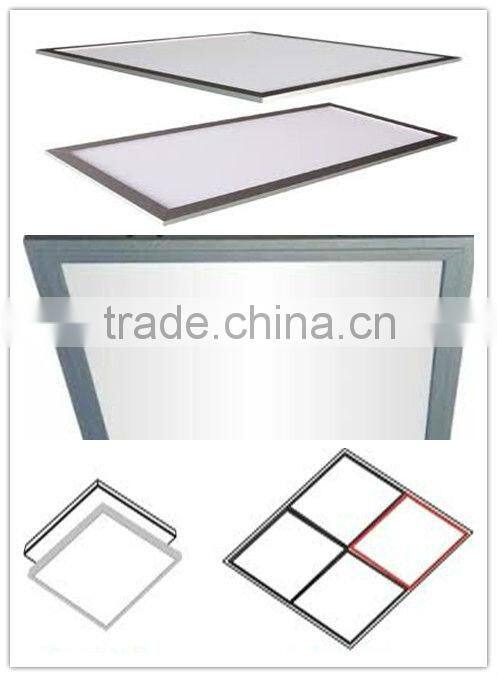

28W ultra flat led light panels 300X600
1.Ultra thin panel 12mm
2.CE,Rohs certificate
3.3years warranty

CE,UL approved 28W ultra flat led light panels 300X600

Specification :

input voltage	Power(W)	Driver type	PF	CRI	Beam Angle	Flux(lm)	Size(mm)	Light source	Rated Life(Hrs)	Warranty	CCT
AC85-265 50-60Hz/AC	28	constant current	>0.9	>85	>150	2800	300*600	SMD LED	50000	3YEARS	ww;2700k-3500k, pw:4000k-5000k,cw;5700k-7000k

Integrated with SMD LED sealing line and lamp assemly line, we are welcome your OEM orders!

Feature:

Energysaving up to 50%,super brightness, color rendering index: white 75 ; warm white 80.
Special different vision angle, the design diversification.
Instant start, no flickering,no humming.
Inner high efficiency (95%) With heat protection system, the constant current driver can work under unstable voltage.
No strobo flash, no radiation, no ultraviolet, no harmful gas, no glare.
Working temperature: -10°C~ +40°C.
No hertzian waves.
No such hazard that mercury or lead enters the environment.
No RF interference.
Warranty:3 years.

Installation:

Turn off the power.
connect the commercial power (85V-265V) with the input of the matched power supply, make sure that no copperware exposed.
Connect matched power supply and panel light together through the DC plug.
Insure safe connection.
Fix the panel light and power supply at suitable place.
Turn on the power,can immediately use.

Applications:

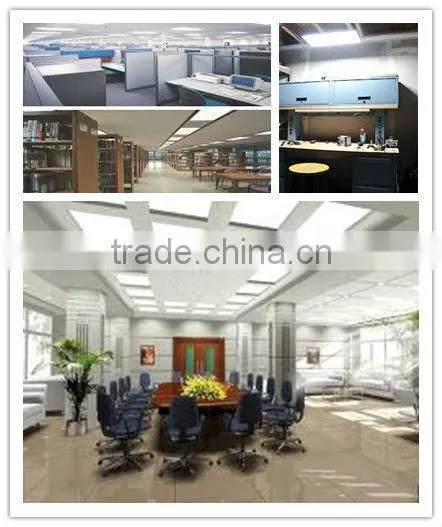

Hotel, Meeting Room, Office, Hospital, School, and places where energy saving and high color rendering index lighting needed.
