ClassicNon Contact Long Linear Poteniometer Replacement SSI Linear Transducer
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
15 Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Newest Non Contact Long Linear Poteniometer Replacement P-interface Linear TransmitterUS$ 300 - 1,000MOQ: 1 Piece -
High Quality Balluff Long Linear Poteniometer Replacement Current Magnetostrictive TransmitterUS$ 200 - 700MOQ: 1 Piece
-
2015 Newest Micropulse Long Linear Poteniometer Replacement Profibus Position SensorUS$ 200 - 700MOQ: 1 Piece
-
Special Price Non Contact Long Wind Turbo Digital Magnetostrictive TransmitterUS$ 100 - 500MOQ: 1 Piece
-
Lowest Price Advance Long Wind Turbo DeviceNet Level TransducerUS$ 100 - 500MOQ: 1 Piece
Type
Other, Sensor
Model Number
15 Series
Brand Name
Germanjet
Place of Origin
Germany
15 Series - level Sensing
15 series is the safe and reliable approach to level application in hazardous location. It is designed according to the explosion protection regulation. (GB3836.1-2000, Electrical Apparatus for Explosive Gas Atmospheres Part1:Genersal Requirements; GB3836.2-2000, Electrical Apparatus for Explosive Gas Atmospheres Part2: Flameproof enclosure "d")

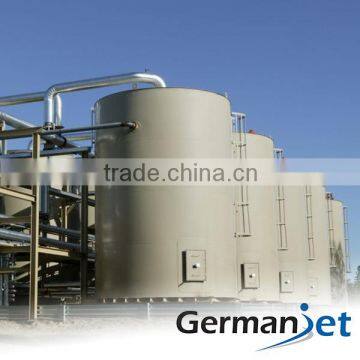

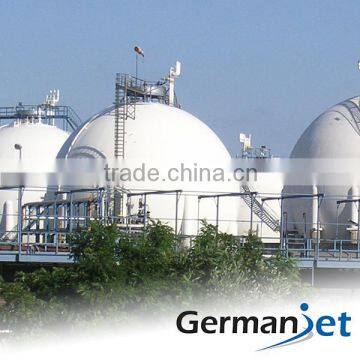

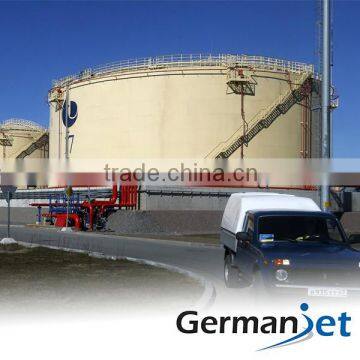

It adopts the non-contact magnet-rostrictive to provide feedback of fluid level and multi-interface level of a storage tank or process vessel. The non-contact feature provides exceptional ease of installation and guarantees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.
| Order Code | 150 |
| Output | Voltage |
| Measurement Type | Linear displacement |
| Resolution | 16 Bit D/A, 0.0015% (minimum 1um) |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Pressure Rating | 350 bar / 600 bar peak |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Vibration Rating | 15g / 10-2000Hz / IEC standard 68-2-6 15g / 10-2000Hz / IEC standard 68-2-6 |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
