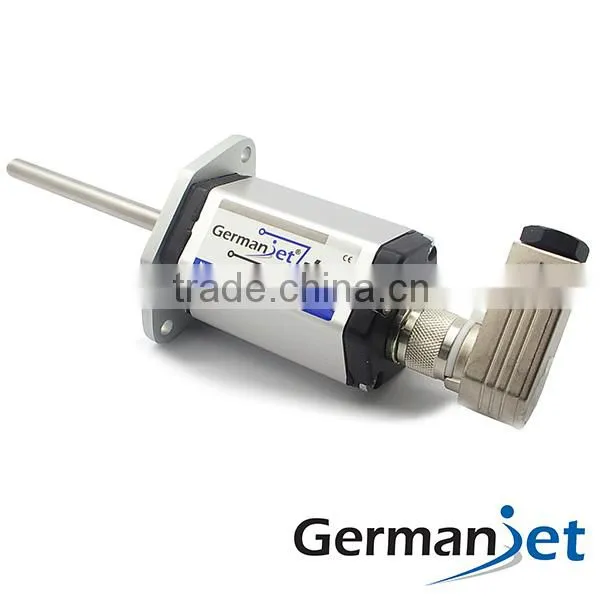

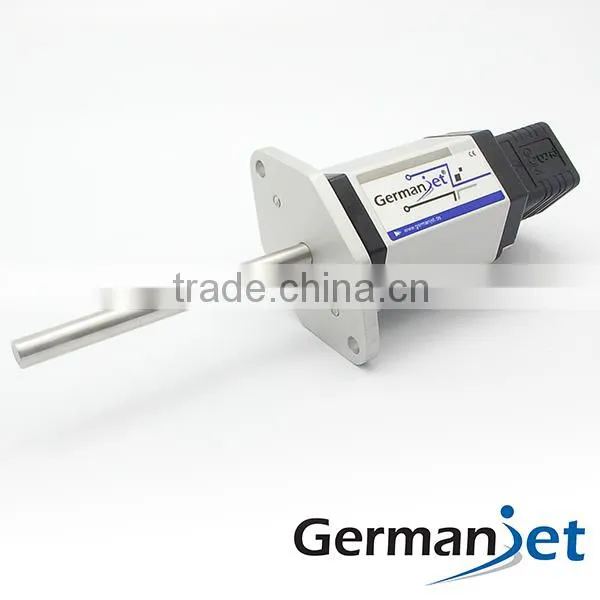

12 Series - Short Stroke Length
The 12 series non-contact absolute position transducer is specially designed for parisan control which dynamically control thickness of Parison to get a uniform thickness container on an Extrusion Blow Moulding machine.
The 12 series adopts the non-contact magnetostricitve measuring technology for precise, direct and absolute measurement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non-contact (Floating) cursor provides exceptional ease of installation with a variety of available cursor position target.
The high versatile profile housing (need to match a suitable connector) offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.
| Order Code | 123 |
| Output | Start / Stop Digital |
| Measurement Type | Linear displacement |
| Resolution | 0.1 / 0.01 / 0.005m |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Current Consumption | 50-140mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Repeatability | < ±0.005% of full scale |
| Non-Linearity | < ±0.02% of full scale (minimum ±90 μm) |
| Update Time | 0.2 ms |
| Mounting | M5 x 2 |
| Housing Material | Anodized aluminum |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP65 / IP67 (with connector) |
| Vibration Rating | 15g / 10-2000Hz / IEC standard 68-2-6 |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
