Non Contact High Accuracy Mobile Cylinder Absolute Position Measurment Magnetostrictive DeviceNet Linear Positon Sensor
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Sensor
Model Number:
19D Series
Brand Name:
Germanjet
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non Contact High Accuracy Mobile Cylinder Absolute Position Measurment Magnetostrictive SSI Output Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece -
Professional Balluff Steel CANopen Position TransducerUS$ 300 - 1,000MOQ: 1 Piece
-
High Quality Balluff Long Wind Turbine P-interface Position SensorUS$ 300 - 1,000MOQ: 1 Piece
-
ClassicMicropulse Long Wind Turbine CANopen Magnetostrictive SensorUS$ 100 - 500MOQ: 1 Piece
-
Customized Absolute Long Wind Turbine SSI Position TransducerUS$ 300 - 1,000MOQ: 1 Piece
Type
Other, Sensor
Model Number
19D Series
Brand Name
Germanjet
Place of Origin
Germany
D model - Sensing Rod Detached

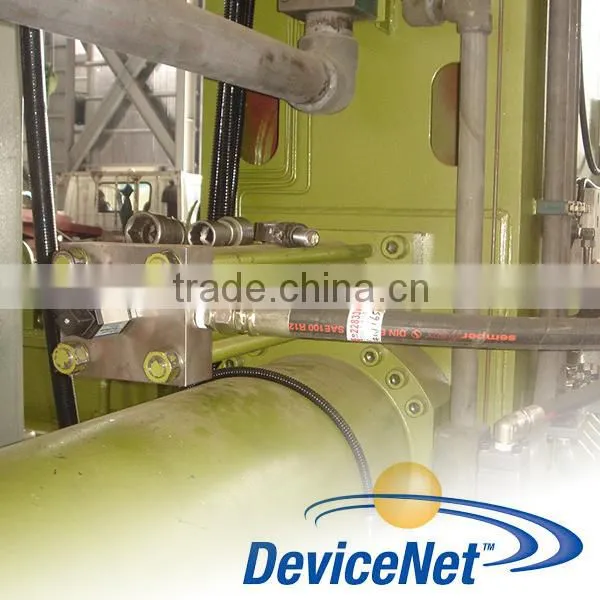

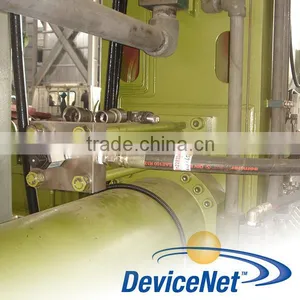

D model is design for hydraulic cylinder with limited head space or clevis rod ends hydraulic cylinder. Sensing rod is made by stainless steel which installed inside the hydraulic cylinder. It is connected to the electronic module installed at the outside of the cylinder by a robust cable.
| Order Code | 196 |
| Output | DeviceNet |
| Measurement Type | Linear displacement |
| Data Protocol | DeviceNet 2.0 Version |
| Output Signal | CAN FieldBus System ISO 11898 |
Baud Rate |
Baud rate : 500 250 125 Kbit/s |
Cable length : <100 <250 <500 m |
|
| Resolution | 2μm or 5μm |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
