CANBus Flexible Magnetostrictive Linear Position Sensor
US$ 300 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Germanjet
Model Number:
19F Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0 - 10V Voltage Magnetostrictive Absolute Linear Position SensorUS$ 300 - 1,000MOQ: 1 Piece -
CANBus Output Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
-
DeviceNet Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
-
SSI Output Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
-
0-10V Voltage Magnetostrictive Linear Positon SensorUS$ 300 - 1,000MOQ: 1 Piece
Place of Origin
Germany
Brand Name
Germanjet
Model Number
19F Series
Usage
Position Sensor
Theory
Other, Magnetostrictive
Output
Digital Sensor
Product Description
Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor

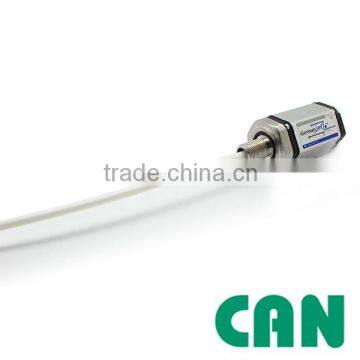

F model - Flex Sensor Housing
F model is design for very long stroke lengths and linear measurements on an arc. Standard stroke length begins from 2500mm up to 10 meters. And longer lengths are available for special applications. The F model is available with all 19 series outputs including analog, serial digital and fieldbus interfaces.
| Order Code | 194 |
| Output | CANBus |
| Measurement Type | Linear displacement |
| Data Protocol | CANopen: CIA Standard DS-301 V3.0 |
| CANbasic : CAN 2.0A | |
Baud Rate |
Baud rate : 1000 800 500 250 125 50 20 Kbit/s |
Cable length : <25 <50 <100 <250 <500 <1000 <2500 m |
|
| Resolution | CANopen CANbasic |
| 5μm 2μm 5μm 2μm | |
| 0.5mm/s 0.2mm/s 1.0mm/s 0.1mm/s | |
| Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
| Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
| Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
| 2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Power Consumption | 100mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |

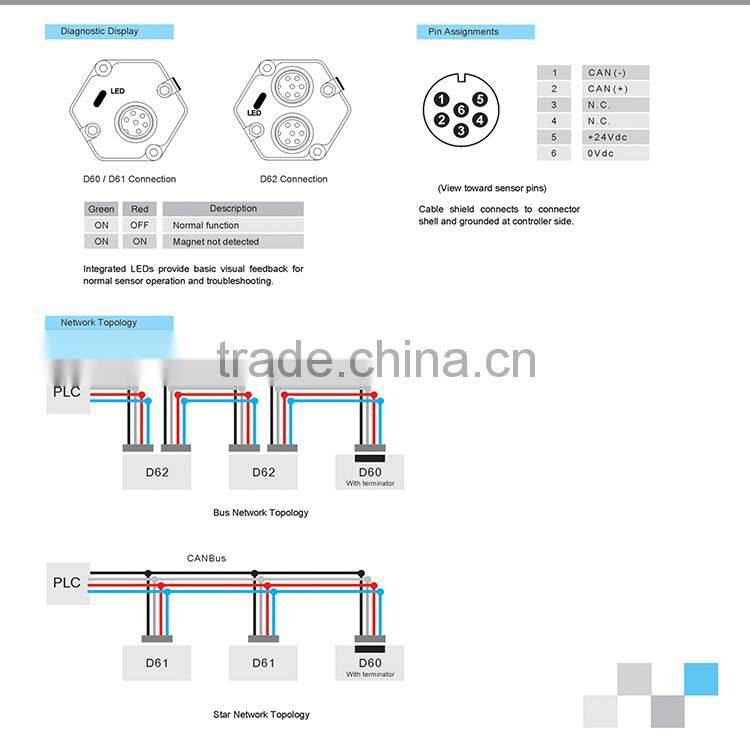

| Connector Type | D60 Male |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP67 (with connector) |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
