0-20mA Magnetostrictive Hydraulic Cylinder Linear Position Sensor
US$ 200 - 700
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Germanjet
Model Number:
17 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0-10V Magnetostrictive Hydraulic Cylinder Linear Position SensorUS$ 200 - 700MOQ: 1 Piece -
Magnetostrictive Non Contact Hydraulic Cylinder 0-20mA Current Absolute Linear Position SensorUS$ 200 - 700MOQ: 1 Piece
-
20 - 0mA Magnetostrictive Hydraulic Cylinder Linear Position SensorUS$ 200 - 700MOQ: 1 Piece
-
4 - 20mA Magnetostrictive Hydraulic Cylinder Linear Position SensorUS$ 200 - 700MOQ: 1 Piece
-
20 - 4mA Magnetostrictive Hydraulic Cylinder Linear Position SensorUS$ 200 - 700MOQ: 1 Piece
Place of Origin
Germany
Brand Name
Germanjet
Model Number
17 Series
Usage
Position Sensor
Theory
Other, Magnetostrictive
Output
Analog Sensor
Product Description
Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor
17 Series - Hydraulic Cylinder Insert
The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily.
The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.
ABC
| Order Code | 171 |
| Output | 0 - 20mA |
| Measurement Type | Linear displacement |
| Resolution | Infinite, restricted by output ripple |
| Input Voltage | +24Vdc (20.4 - 28.8Vdc) |
| Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
| Current Consumption | 50-140mA (stroke range dependent) |
| Dielectric Strength | 500Vdc (DC ground to machine ground) |
| Repeatability | < ±0.005% of full scale |
| Non-Linearity | < ±0.02% of full scale (minimum ±90 μm) |
| Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2500 mm |
| Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
| Sealing | IP65 (with 4 pin connector) / IP67 (with D60 and M12 connectors) |
| Vibration Rating | 15g / 10-2000Hz / IEC standard 68-2-6 |
| Shock Rating | 100g single hit per IEC standard 68-2-27 |
| EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
| Pressure Rating | 350 bar / 600 bar peak |
| Mounting | M18 x 1.5 |
| Housing Materia | Anodized aluminum cartridge, Stainless steel tube and flange, Plastic cartridge cover |

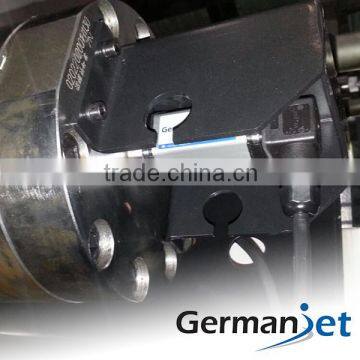

Installation
