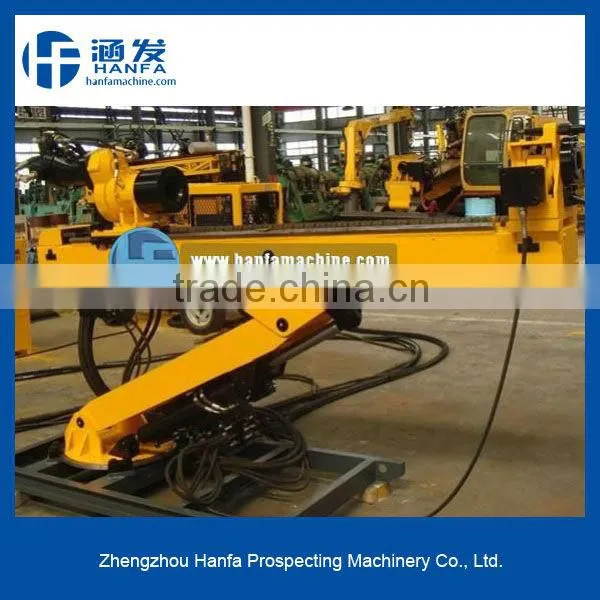

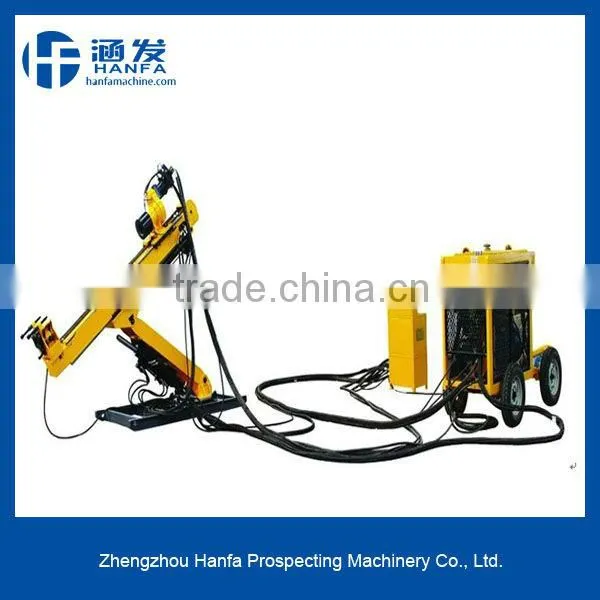

Hot Sale in Africa! High Efficiency & Practical HFU-3A underground core drilling machine
1. technical parameters about this drilling rig
I. General Introduction
HFu-3 drill rig is mainly applied in the fields of coal, geology, metallurgy and engineering. It is used for drilling large dia. gas suction hole in mines, gallery as well as coal mine, water injection hole, and big dia. horizontal hole. It can meet the big dia. roller drilling, hard tungsten-carbide drilling and percussive-rotary drilling.
II. Main Features:
1. It is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.
2. The hydraulic pump is driven by explosion-proof electric motor through operating system, then the hydraulic pump enforces hydraulic motor to make drill head rotate, and at the same time, the movement of drill head is realized by oil cylinder & chain double speed mechanism.
3. Hydraulic chuck can satisfy the function of shackles and power-off protection.
4. The sliding and extending & retracting function of the mast makes it convenient for the bottom of mast to touches the ground or platform, thus the drill rig will be more stable.
5. The swinging arm and mast can do luffing movement, which satisfy the request of multi-angle drilling.
6. The range of spindle rotating speed is wide and the torque is large.
III. Main Technical Specifications:
1. Drilling depth: Φ55mm(2.17inch) drill rod 300m(984feet)
Φ71mm(2.80inch) drill rod 200m(656feet)
2. Drill rod spec.: Φ55×1500mm(Φ2.17×59inch) drill rod
Φ71×1500mm(Φ2.80×59inch) drill rod
3. The range of spindle rotating speed: 425-1280rpm
4. The max. rotating torque of spindle: 795 N·m(586 lbf·ft)
5. The working pressure: 25 Mpa(3626 psi)
6. Spindle stroke: 1600mm(63 inch)
7. The max. Lifting force of drill head: 62KN(13938 lbf)
8. The max. Feeding force of drill head: 33KN(7418 lbf)
9. The sliding stroke of mast: 495mm(19.5 inch)
10. The swing angle of mast bracket (left & right): 90°
11. The swing angle of arm (up and down): 100°
12. Power unit: YB225M-4(dIICT4)explosion-proof electric motor 45KW(60HP)/1480rpm
13. Dimensions:
Main machine (L*W*H): 2950×950×1850mm(116×37.4×72.8 inch) Power unit (L*W*H): 1900×980×132mm(74.8×38.6×5.2 inch) Operation cabinet (L*W*H): 540×360×1080mm(21.3×14.2×42.5 inch)
4. Production ability
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
6. Packing
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
8. Quality guarantee
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
