500m Depth, Portable HF-MPI Advanced, Small Weight Gold Detecting Instrument

500m Depth, Portable HF-MPI Advanced, Small Weight Gold Detecting Instrument thumbnail-1
500m Depth, Portable HF-MPI Advanced, Small Weight Gold Detecting Instrument photo-1
US$ 4,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HF
Model Number:
HF-MPI
Contact Supplier Request Quote Chat Now
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name HF
Model Number HF-MPI

Specifications

Gold Detecting Instrument
1.portable,only 15kg,one person can take it away
2.advanced technology
3. English Version

Gold Detecting Instrument



HF-MPI Water Detector



Natural Electric Auto Frequency Selector

Compare with traditional electric prospecting instrument:

traditional electric prospecting instrument

Natural Electric Auto Frequency Selector

Need manual supply power, heavy equipment and complicated wiring.

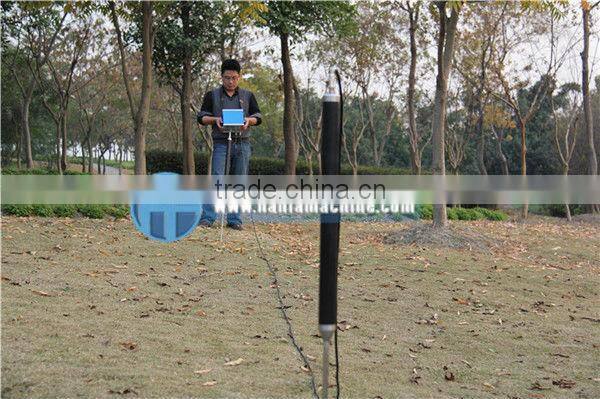

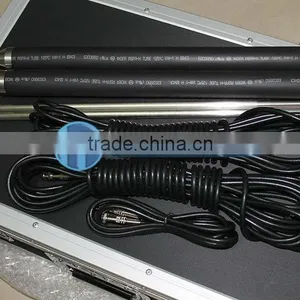

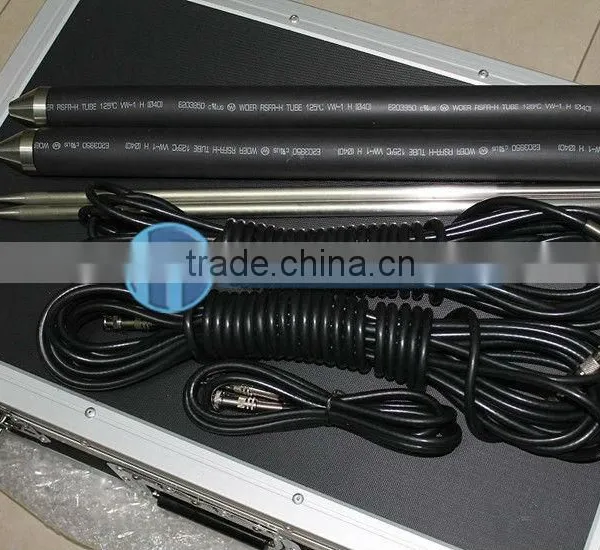

Do not need power supply, use natural electric field, through special amplify method it just need 20 meters receiver pole to complete survey.

Need 3-5 people or more than 10 people to operate the equipment with heavy work and low efficiency.

1-2 people is enough to finish the work with high efficiency

Heavy weight about 50-500KG, hard to remove.

Light weight less than 5KG, easy to bring.

Need to convey the data to PC and use different kinds of software to draft and analyze.

Printing all kinds of curve immediately with the portable printer and analyzing at the same time. You can adjust and change survey dispose.

Main application
     Use natural electric field and resistivity parameter produced by different of the geologic structure. It is widely using in prospecting metal minerals, non-metal minerals, underground water prospecting etc. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Only one person will finish indoor and outdoor work
      Do not need manual power supply,small cubage,light weight,carry about,high efficiency and exact address. It get over the default that traditional equipments have such as need many people to work together, heavy weight, complicated operation, low working efficiency and long lines.

Press one button to finish all the survey operations
      Machine is automatic control by micro PC. Easy operation. A press one button to finish all the operation. It does not need especial knowledge. When the survey is finished, press the button to display the curve and you can analyze at the same time.

High anti-jamming capability
You can get the good curve in the noise road and high electric jamming area for signal via frequency selector and digital processing.

Get survey parameter through Multiple-frequency, Multi-aspect and multi-measurement.
      It can survey in different position, do fixed point survey, solve same special geophysical problem and gather multi-measurement parameter through different kinds of survey method.

Widely application and flexible using
     using for locator underground water, minerals and solve engineering geophysical problem and geophysical disaster. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Main functions and features
1. Automatic noise reduction; super anti-jamming.
2. 3 frequencies or 30 frequencies measuring at one time.

3. Operating functions are all on the LDC screen, easy operation.
4. Auto-measuring, auto-stocked data. It doesn’t need to record the measured data and the data won't be lost when power off.
5. It can storage 20 curve measuring data of3 frequency and 30 frequency.
6. Curve and data are displayed on LCD screen. Curve and data also can print by micro printer or PC printer.
7. Power supply rechargeable battery.
8. Electrode test and power monitor
9. Whole weight.2KG, size: 24CM×13CM×16CM

2. Specifications

Product Configuration

·5 inch LCD screen, support 240*128 dot matrix

·Intelligent controller, 22MHz frequency

·High sensitivity, high impedance, differential input probe

·Tri-band beneficiation technology

·50Hz/60Hz filtration technology, eliminate frequency interference

·Save up to 10 groups of measurement data, each measurement data

contains up to 16 data

·Simple time display and temperature display

·Support for external serial printer (special type)

·Built-in battery 12V/1.2AH

·Support two kinds of chargers: AC-DC 12V charger and DC 12V dedicated

car charger



Product parameters

 Frequency: (Hz C/S)

Three-frequency measurement: Each measuring point measures the following

three frequency data: 25;67;170

Multi-frequency measurements: A measuring point for fixed-point

measurement, measuring the following 30 frequency data:

20;30;40;50;60;70;80;90;100;110;120;130;140;150;

170;190;210;230;250;300;350;400;460;500;700;900;

1100;1300;1500;2000

Each frequency range allows the election: Center frequency ±1%

Measurement parameters: Magneto telluric different frequencies electric

field component

ΔV⊥s,ΔV"s (mV)

Measuring range: 1 uV-250mV, instrument automatically converted range

Input impedance: >10MΩ

 Power: 12V/1.2AH battery

Work environment: Temperature (-10°C—+45°C), relative humidity: ≤85%
