Horizontal Directional Drilling Rig

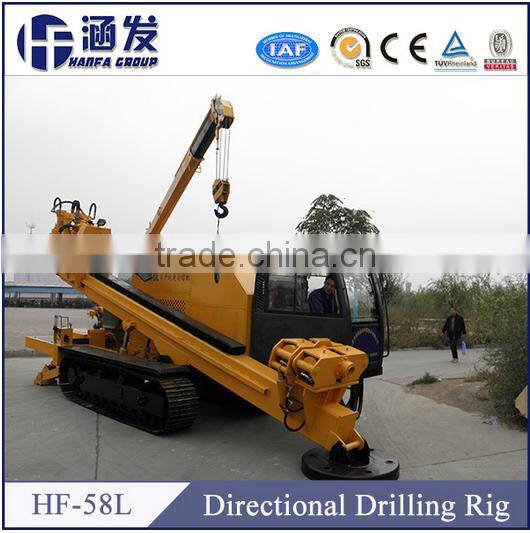

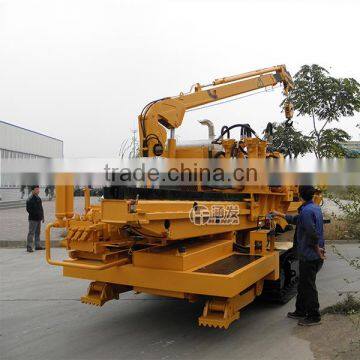

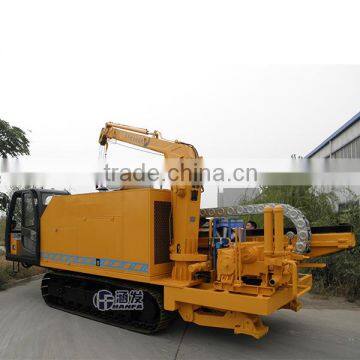

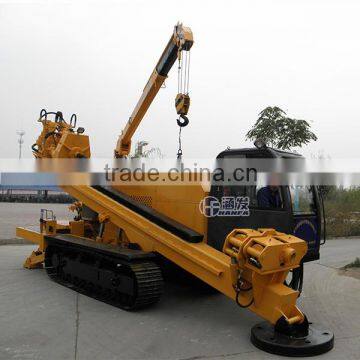

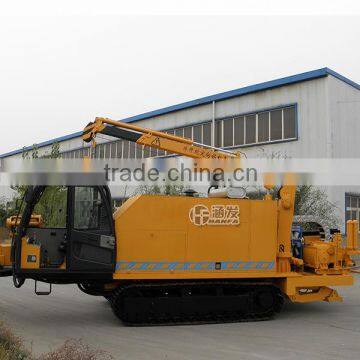

HF-58L directional drilling rig engineering & construction machinery, mainly used for civic construction,product description:
1.Adopts steel track with rubber block.
2.Reasonable structure, convenient operation, and high stability.
3.The hydraulic system adopts the most advanced hydraulic guide control system.
4.It is widely used in the city or outside trench-less pipe-laying.
HF-58L horizontal directional drilling rig, mainly used for civic construction,technical data:
Engine Power |
235Kw |
Max. Spindle Torque |
28000Nm |
Max. Pullback Force |
480kN |
Max. Thrust Force |
480kN |
Spindle Speed |
0-80rpm |
Entry Drill Angle |
0-20° |
Max. Mud Flow Rate |
320/400L/min |
Max. Fluid Pressure |
10Mpa |
Drill Rod(Dia.×Length) |
89×4500mm |
Feed Stroke |
4500mm |
Diameter Of Reamer |
360-1400mm |
Max. Paving Length |
1000-200m |
Rig Size(L×W×H) |
9.0×2.2×2.4m |
Weight |
13600kg |
HF-58L directional drilling rig engineering & construction machinery, mainly used for civic construction,technical characters:
1. Pushing structure is chained wheel mode to reduce bearing capacity of roller chain, increase drill rig’s pullback force storage, and enhance safety factor, which can save 20KW engine power.
2. Two-speed gear is used in rotary and thrust system which is in favor of hole clearance and pullback process to improve work efficiency and rates of success.
3. Heavy-duty Hydraulic rotary power head adopts rock drill head. It can bear a larger impact load and it is more suitable for both dry and wet drilling.
4. The carriage with rollers can reduce the friction and improve the lifetime of extension guide.
5. Tow hydraulic clamps make drill rods’ chenging and removement more conveniently and effectively.
6. Comfortable driving cab and concentrated control tower make operation more conveniently.
7. It equipped with 100-hour high energy cell in order to complete long distance drilling.
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
