Home > Lights & Lighting > LED Interior Lighting > LED Down Light > 3w ,5w, 7w, 9w,led Down Light Fixtures With CE&RoHs

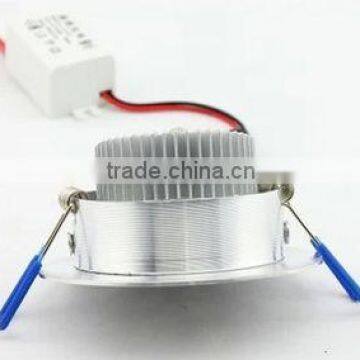

3w ,5w, 7w, 9w,led Down Light Fixtures With CE&RoHs

Shenzhen JuJiaXin Opto-Electronic Technology Co., Ltd.

3w ,5w, 7w, 9w,led Down Light Fixtures With CE&RoHs thumbnail-2

3w ,5w, 7w, 9w,led Down Light Fixtures With CE&RoHs photo-1

3w ,5w, 7w, 9w,led Down Light Fixtures With CE&RoHs photo-2

US$ 6 - 20 MOQ: 50 Pieces

Key Specifications

Get Latest Price

LED Light Source:

SMD3014

Warranty(Years):

Input Voltage(V):

AC85V-265V

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD3014

Warranty(Years) 3

Input Voltage(V) AC85V-265V

Lamp Power(W) 3

Lamp Luminous Flux(lm) 240

Lamp Luminous Efficiency(lm/w) 80

Color Temperature(CCT) Pure White

Working Temperature(℃) -30, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

Certification BV, CCC, CE, CQC, C-tick, Energy Star, EMC, ETL, FDA, FCC, GS, GOST, LVD, PSE, REACH, SAA, SASO, UL, VDE

Model Number JJX-TH85-03W-WY-01R

Place of Origin Guangdong, China

Brand Name JJX

Specifications

The description of led down light fixtures
1. power :3W 2.Luminous :240lm 3.material: Aliminum+PMMA

led down light fixtures specification

Item No.	JJX-TH85-03w-WY-01R	Working Temperature	-30~50°c
AC Power	AC85V-265V	Life Time	50,000hrs
Frequency Range	50~60Hz	Beam Angle	35/60degrees
Power Factor	≥90%	CRI	>80Ra
LED Power Consumption	3w	Drive Mode	constant current
Warranty	3 years	CCT	6000K-6500IK
LED Source	SMD3014	luminum	240lm
size	D85mmxH45mm	hole size	75mm

led down light fixtures Detail

1. Long life Expectancy

2. Environment and health protection: No UV &IR light, No Mercury, No flash, visual comfort

3. Safe to touch/low heat output

4. Special circuit design, each group of LED work separately, avoiding any problem of lighting output caused or influenced by single faulty LED

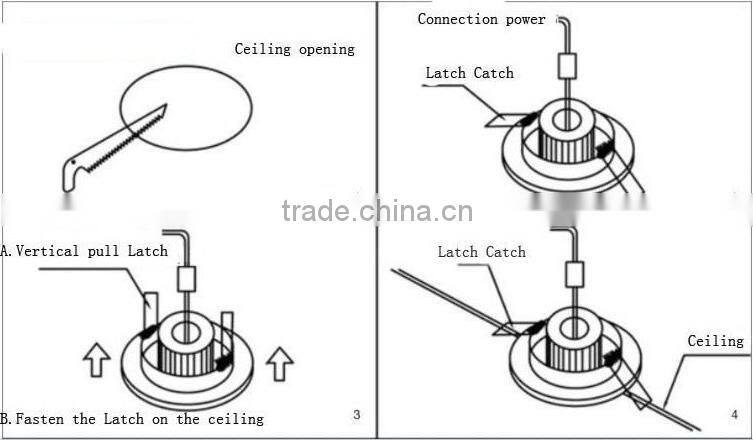

Installation Detail : LED lamp according to customer needs, wide application, easy to use

Package (30/CTN):

Our standard package,also can do as customer's requirement

Outbox: 625mmx430mx325mm

Shipping Service

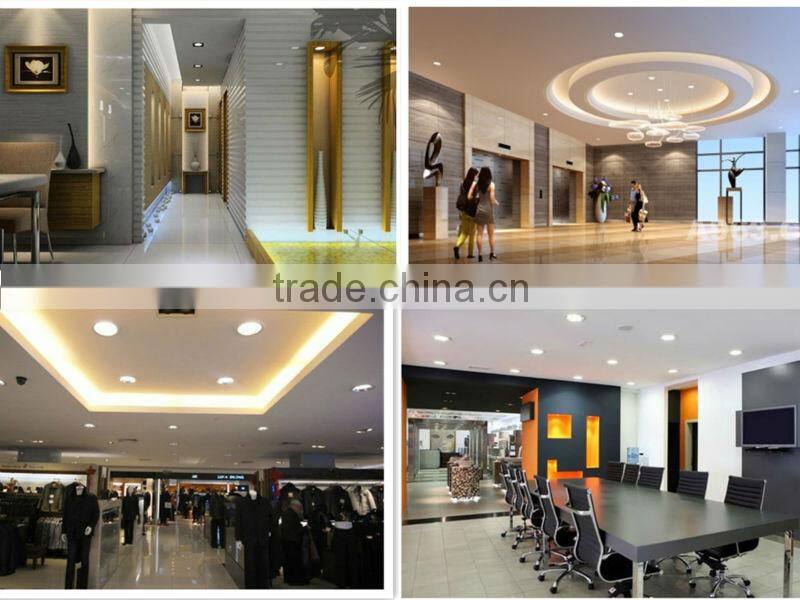

led down light fixtures Applicate

led down light fixtures led applicate at hotel lighting, libary lighting, school lighting, bank lighting, home lighting,and other lighting place

led down light fixtures Features

1.High light efficiency imported LED chip, with patent technology integration encapsulation, light source with high efficiency: 90%-100%

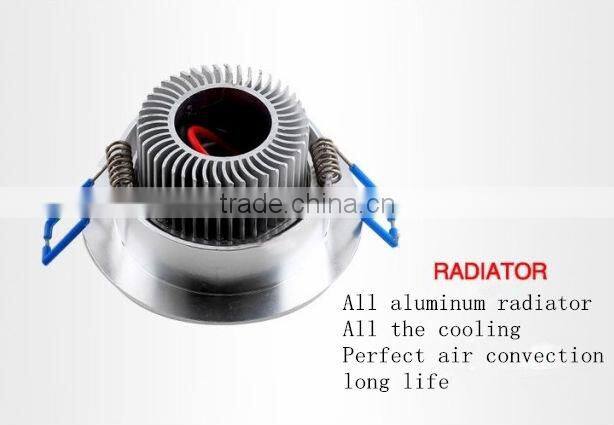

2. Aluminum structures,effective heat dissipation.

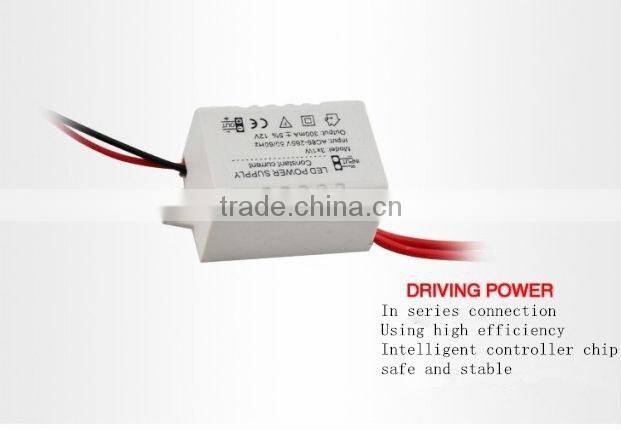

3.The external power supply with easy installation and convenient maintenance makes our products a wide application.

4. Solid light source, strong durablity, and light source life can reach 50000hours.

About us:
We're one of the Top Ten LED Light Manufacturer. Based on over 5years LED light manufacturing
experiences, we develop new designs nearly every month Our led light are most competitve on both quality and the price among the counterparts.
We're a CE, FCC,SGS certified manufacturer

Persue Quality, Choose jujiaxin!

Welcome to send us an inquiry, thank you!
