directional drilling machine HF-58L for pipe laying trenchless
- 25 Set / Sets per Month
- Shanghai port
- CAT HOSE AS 363-8127 3638127 Caterpillar genuine
- Advanced Portable Water Well Drilling Rig 760kg Mud Drilling Capability
- Water Well Drilling Machine With 150 Meters Depth And Large Hole Diameter
- 220V / 380V Water Well Drilling Machine / HZ 200 M Mine Borehole Rock Drill Rig
- High Efficiency Water Well Drilling Rig XY-3 300m Depth For Geothermal Exploration
- Auto Balancing Turnover Spreader Beam for Car Frame/Chassis/Trailer/Flatbed Turning
Product Details
Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HF-58L directional drilling machine |
After-sales Service Provided: | Engineers available to service machinery overseas |

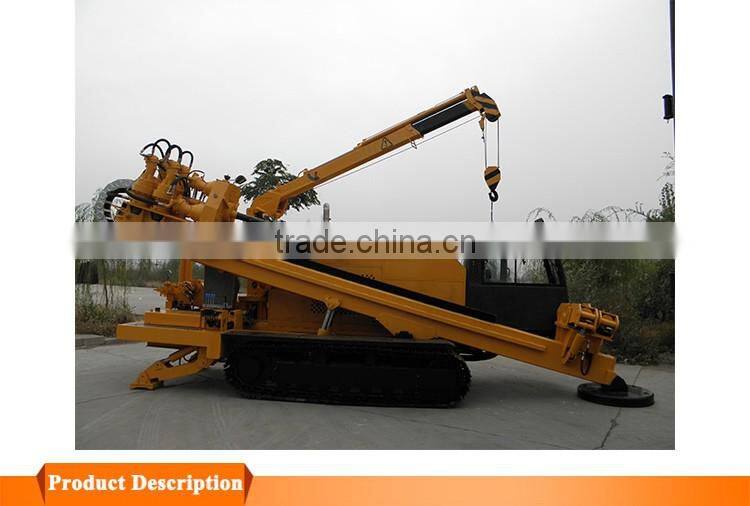

Product Description
directional drilling machine
HF-58L directional drilling rig engineering & construction machinery, mainly used for civic construction,product description:
1.Adopts steel track with rubber block.
2.Reasonable structure, convenient operation, and high stability.
3.The hydraulic system adopts the most advanced hydraulic guide control system.
4.It is widely used in the city or outside trench-less pipe-laying.

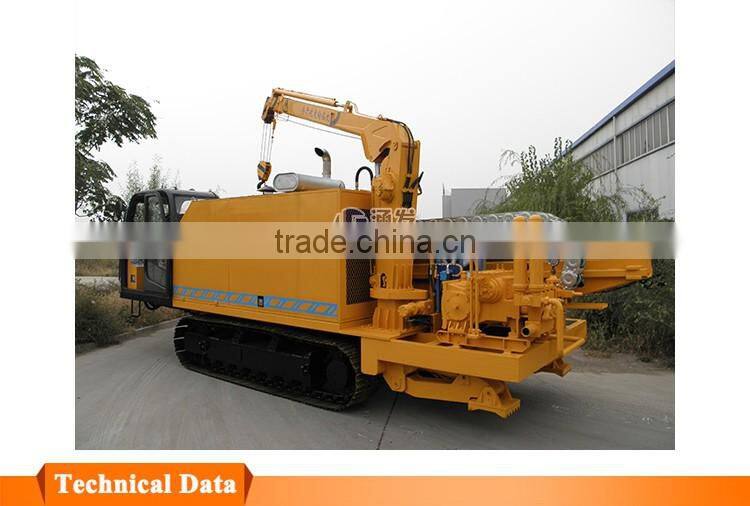

HF-58L directional drilling rig engineering & construction machinery, mainly used for civic construction,technical data:
Engine Power | 235Kw |
Max. Spindle Torque | 28000Nm |
Max. Pullback Force | 480kN |
Max. Thrust Force | 480kN |
Spindle Speed | 0-80rpm |
Entry Drill Angle | 0-20° |
Max. Mud Flow Rate | 320/400L/min |
Max. Fluid Pressure | 10Mpa |
Drill Rod(Dia.×Length) | 89×4500mm |
Feed Stroke | 4500mm |
Diameter Of Reamer | 360-1400mm |
Max. Paving Length | 1000-200m |
Rig Size(L×W×H) | 9.0×2.2×2.4m |
WeigHF | 13600kg |

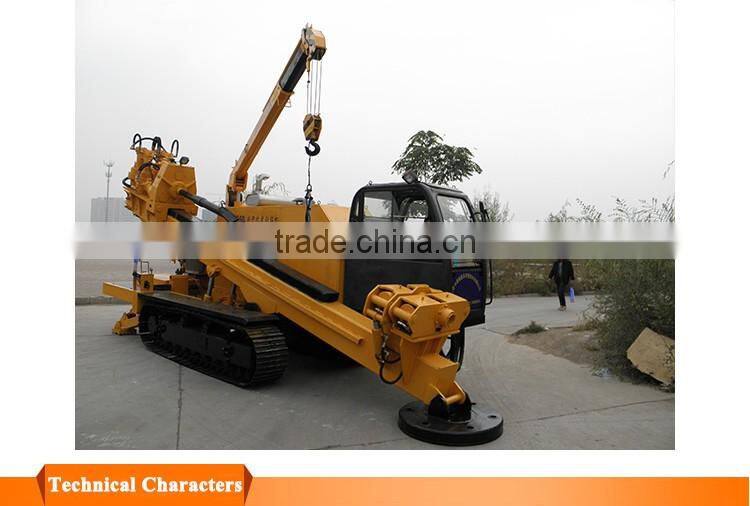

HF-58L directional drilling rig engineering & construction machinery, mainly used for civic construction,technical characters:
1. Pushing structure is chained wheel mode to reduce bearing capacity of roller chain, increase drill rig’s pullback force storage, and enhance safety factor, which can save 20KW engine power.
2. Two-speed gear is used in rotary and thrust system which is in favor of hole clearance and pullback process to improve work efficiency and rates of success.

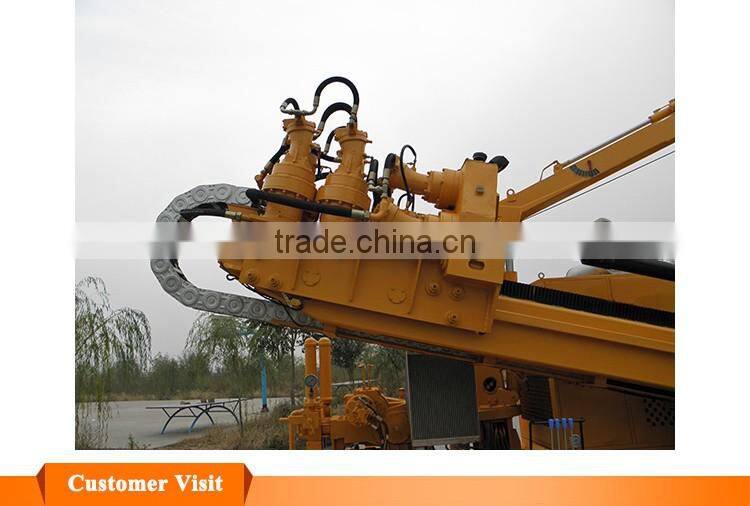

3. Heavy-duty Hydraulic rotary power head adopts rock drill head. It can bear a larger impact load and it is more suitable for both dry and wet drilling.
4. The carriage with rollers can reduce the friction and improve the lifetime of extension guide.
5. Tow hydraulic clamps make drill rods’ chenging and removement more conveniently and effectively.
6. Comfortable driving cab and concentrated control tower make operation more conveniently.
7. It equipped with 100-hour high energy cell in order to complete long distance drilling.

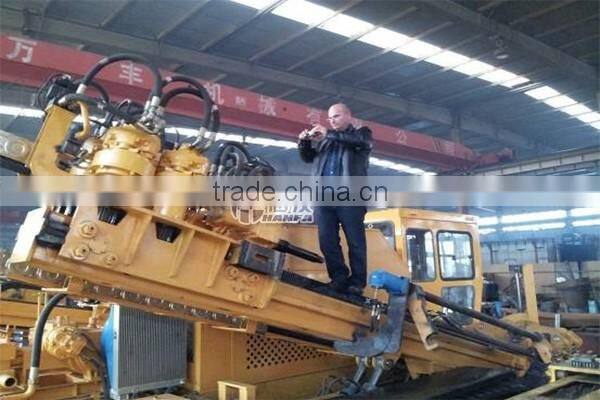

HF-58L directional drilling rig engineering & construction machinery, mainly used for civic construction,customer visit:
