Low air consumption DTH drilling! Salable in market~ HF100YA2 exploit mine drill rig
- 20 Set / Sets per Month
- Qingdao Tianjin Shanghai
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Other, DTH Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | Hanfa | Model Number: | HF100YA2 |
Usage: | Other, opening mines, blasting holes, bore holes | Power(W): | 22KW | Dimension(L*W*H): | 4100*2030*2020 |
Weight: | 2800kg | Certification: | ISO,CE | Warranty: | one year quality warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
HF100YA2 exploit mine drill rig1.30m depth,130~90mm diameter
2.low air consumption
3.hydraulic system
Low air consumption DTH drilling! Salable in market~ HF100YA2 exploit mine drill rig
Specifications

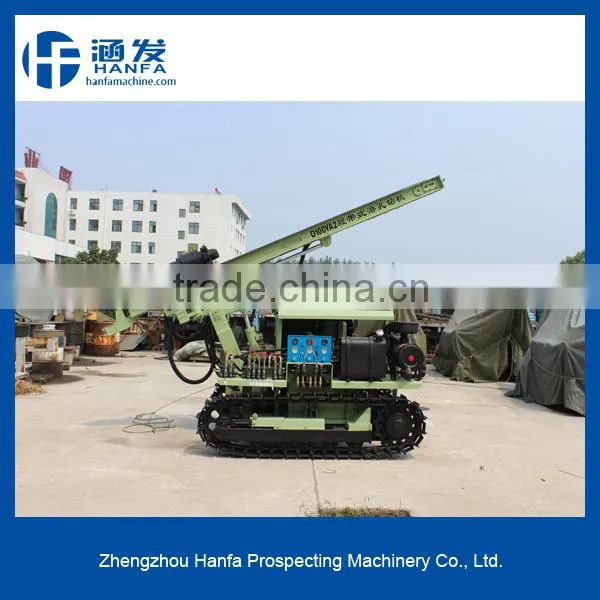

HF100Y2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation. When drilling, the sliding frame support on the ground, have good stability.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Features:
1.Rotary structure can be low, medium and high-speed switching, perforation of the work to meet the needs of the different rock
2.Double-pump reduces the pump using the failure rate and maintenance costs
3.Walking with high torque agencies to ensure a strong power output
4.Enhance and promote organizations to adopt the fuel tank of the completion of reliable
HF100YA2 DTH Drilling Rig Technical Parameters:
Total Weight (kg) | 2800 |
Drilling diameter (mm) | 90---130 |
Dimension (L * W * H) (mm) | 4100*2030*2020 |
Drilling depth (m) | 30 (max:40) |
Travelling speed (km/h) | 2 |
Once promotion distance (mm) | 2000 |
Grade ability (°) | 30 |
Working pressure (mpa) | 0.7—1.4 |
Chassis ground clearance (mm) | 260 |
Air consumption (m³/min) | 7--15 |
Skid pitch (°) | up and down total 100 |
Host Power (kw) | 33 |
Sliding tilt swing (°) | Left 35, right 10 |
For rock (f) | 6--20 |
Skid compensation (mm) | 900 |
Impact frequency (r/min) | 840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. |
