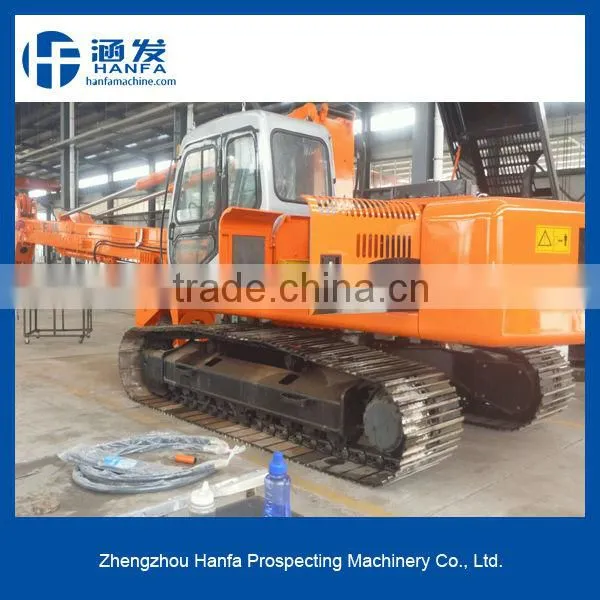

Hydraulic piling rig suppliers HF856A Rotary drilling rig
Features and Advantages ------ Rotary drilling rig
It takes telescopic prop (mast) structure in domestic rotary drilling rig for the first time, and it can be transported comprehensively with front lodge without disassembly. Moreover, the shift between transportation and working situation is rapid.
It takes U-shape connecting form between props and drilling rig. The main winch is placed in U-shape groove right eyesight of the operator (the operator can observe the working condition of main winch all the time), and the structure is simple and practical.
It takes the structure of guiding support under drill pipe, which not only guarantees the verticality of the drill pipe in drilling process, but also avoids the trouble of disassembling the supports in transportation.
The design of miniaturization, lightweight and practical application, and the comprehensive transportation without assembly, decreases the usage and transportation's cost of the equipment sharply.
Under working condition, the min vertical height of the prop can be adjusted to less than 13m freely. Low altitude over-limited construction work can be performed after selecting different drill pipes.
The joint of the drill pipe and drill chuck takes cross head pin to fix, which not only guarantees the verticality of the drill pipe, also increases the safety factor of the drill chuck in construction.
Technical parameters------ Rotary drilling rig
Description |
unit |
model |
Drilling diameter |
mm |
600 - 1500(mm) |
Max.drilling depth |
m |
56(m) |
Chassis(Windth of track shoes) |
mm |
800(mm) |
Chassis(Min.ground clearance) |
mm |
430(mm) |
Chassis(Max.grade ability) |
|
40% |
Chassis(Max.traveling speed) |
km/h |
3(km/h) |
Hydraulic system(Motor for swing) |
|
2Plunger Fixed Displacement motor |
Hydraulic system(Travel plunger motor) |
|
2Plunger variable Displacement motor |
Hydraulic system(Main safety valve adjusted power) |
Bar |
300Bar |
Hydraulic system(Method of power adjustment) |
|
Gross power adjustment + Negative flow control |
Hydraulic system(Type of hydraulic pump) |
|
2×plunger variable flow pump+2×Gear pump |
Auxiliary winch(Rope diameter) |
mm |
16(mm) |
Auxiliary winch(Max.line speed) |
m/min |
50(m/min) |
Auxiliary winch(Max.line pull) |
kN |
60(kN) |
Main winch(Rope diameter) |
mm |
21.5(mm) |
Main winch(Max.line speed) |
m/min |
70(m/min) |
Main winch(Max.line pull) |
kN |
120(kN) |
Crowd(Max.stroke) |
m |
2(m) |
Crowd(Max.pull) |
kN |
80(kN) |
Crowd(Max.push) |
kN |
120(kN) |
Rotary drive(Rotation speed) |
r/min |
0-22(r/min) |
Rotary drive(Max.torque) |
kN.m |
80(kN.m) |
Engine type |
|
Turbocharged direct-injection |
Engine(Rated power) |
kw/rpm |
108/2100(kw/rpm) |
Engine Modek |
|
6bt5.9 Cummins |
Operating weight of total machine |
kg |
38000(kg) |
Overall measurment(Transport data) |
mm |
13350×3200×3200(mm) |
Overall measurment(Working data) |
mm |
16950×3200×6720(mm) |

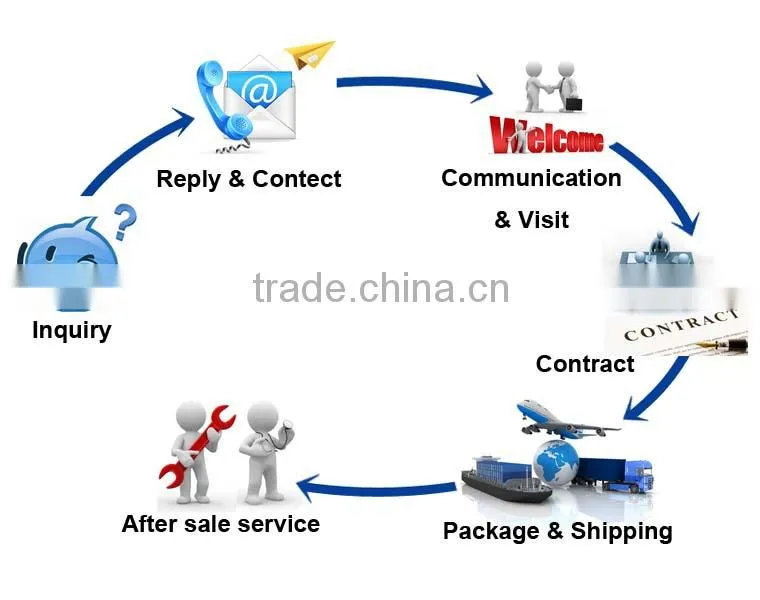

Communication with the overseas customers ----- Rotary drilling rig
Quality guarantee----- Rotary drilling rig
Our products has been authorized and certified by TUV and ISO9001:2008. We provide each machine one-year quality warranty after the trial run (excluding the wearing parts), except the machines sold more than15 months.
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. Presently, it has three subsidiaries which are zhengzhou Hanfa Prospecting Machinery Co.Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers. As well we have more than 20 species such as core drilling rig, rotary driling rig, brunt counter circulation drilling machines and hydrology water-well drilling machines.
Our company has passed ISO9001: 2008 quality administrative system certification. Our products have a vast market in foreign countries such as Southeast Asia, South America, Africa and other countries and regions. And the excellent capability, perfect service and eminent quality help Hanfa gain the general recognition both from domestic and overseas users.
Our company implement the corporate culture of "integrity, diligence, strict, profession and efficiency". We are always ready to provide you with best quality, reasonable price and perfect service system in order to establish close, trustworthy and long-term relationship with each customers. If you are interested in our products, please contact us and we will make every effort to give our hand.
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
